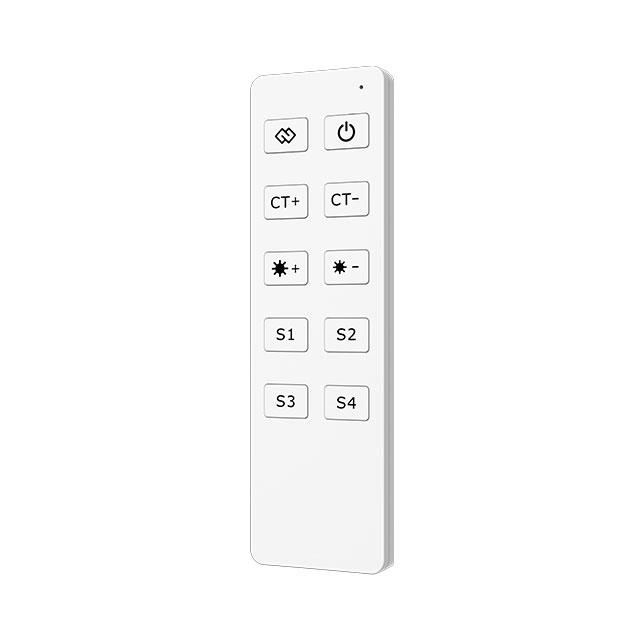

10-Key CCT Zigbee 3.0 LED Remote Controller, 10-key /Zigbee 3.0 /Wireless remote 30m distance /CR2032 battery operated.
● Apply to Zigbee 3.0 dual-color LED controller or driver.
● Built-in Tuya Zigbee 3.0 remote module, supports scenario linkage and one-click execution.
● Each remote can match one or more receivers/controllers.
● CR2032 battery-powered.
● Operate with LED indicator light.
● White & Black available.
Standards and Certifications
|Output signal:||Zigbee 3.0|
|Standby time:||1 year|
|Remote distance:||30m (Barrier-free space)|
|Operation temperature:||Ta: -30℃ ~ +55℃|
App Operating Instructions
1. Network pairing
● Download the Tuya APP and register an account, search and add the Tuya Zigbee gateway device.
● Press and hold the "Network pairing" button until the LED indicator light flashes. Under the gateway, you can find the WZS-Scene Panel device in Tuya APP. After successful network pairing, the indicator light will be on for 2 seconds and then off.
● Under the gateway, search and add one or more ZBS-CCT light devices.
● Remote unpairing: Delete the WZS-Scene Panel device from the tuya APP.
2. Remote association and scene settings
There are 8 scenes in the Tuya APP, which can be set to lighting scenes or linkage scenes.
The lighting scene is used for the overall control of multiple lamps, like the light adjustment of the entire room.
Linkage scene is used for linkage control of different equipment, such as lamps and curtains on and off together.
