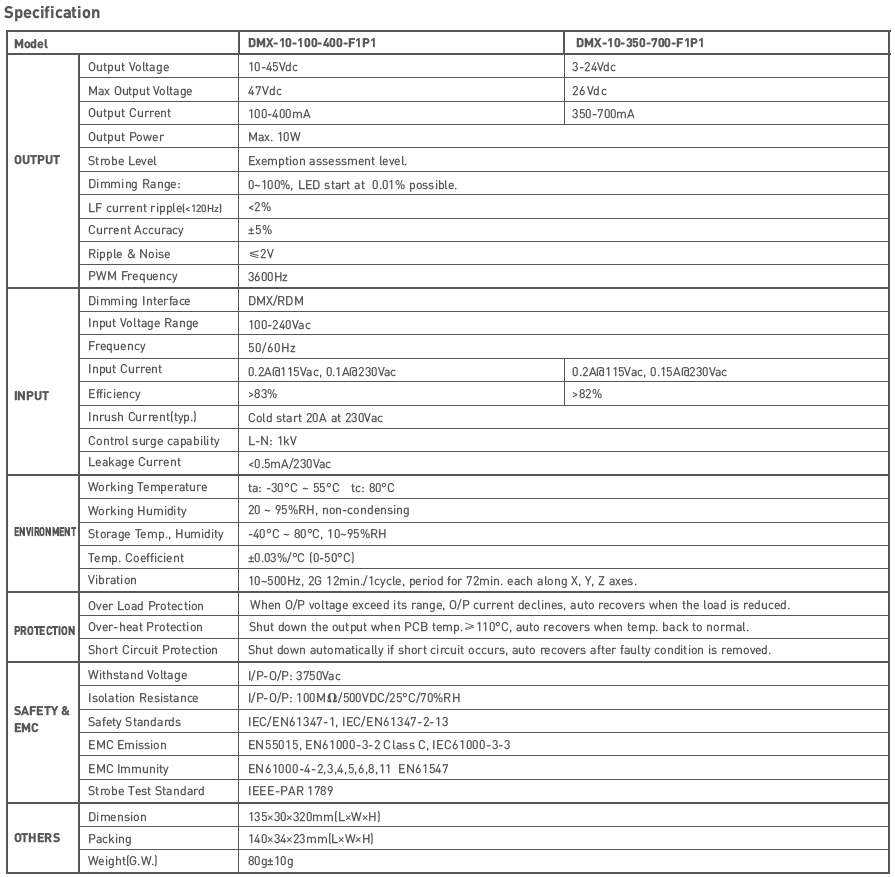

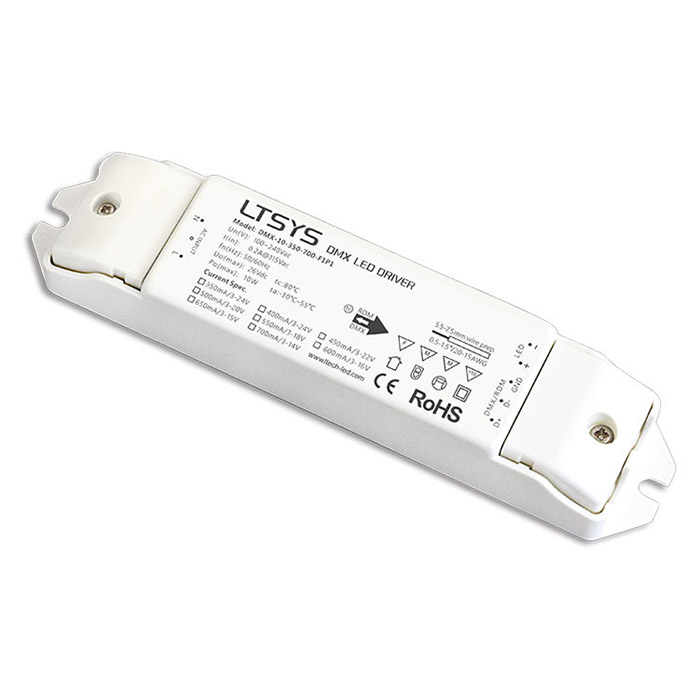

100-240VAC DMX-10-350-700-F1P1 10W 350-700mA CC DMX Driver
Dimming interface: DMX512/RDM
Dimming range: 0-100%
Input voltage: 100-240VAC
Current Accuracy: ±3%
Output voltage: 3-24VDC
CC output: 350mA-700mA

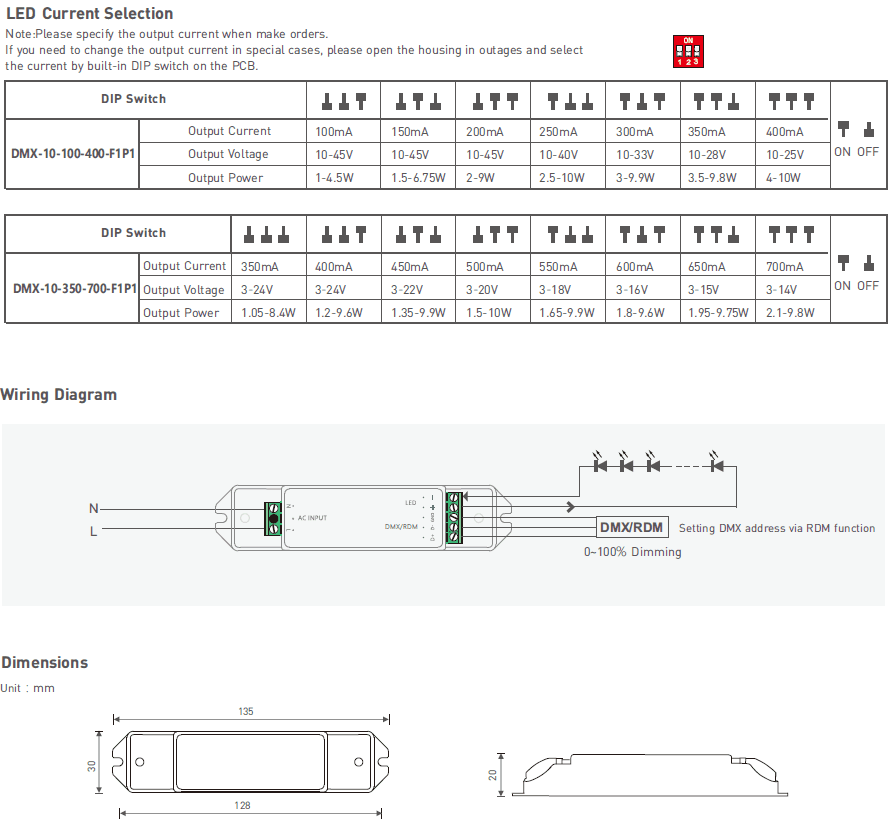

Pout(Max.) Vout(DC) Constant lout(DC)
1.05-8.4W 3-24V 350mA
1.2-9.6W 3-24V 400mA
1.35-9.9W 3-22V 450mA
1.5-10W 3-20V 500mA
1.65-9.9W 3-18V 550mA
1.8-9.6W 3-16V 600mA
1.95-9.75W 3-15V 650mA
2.1-9.8W 3-14V 700mA
Dimming interface: MX512/RDM
With the RDM remote device management protocol.
Supports DMX512 signal bi-directional communication.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-heat / Over load protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
