SE-20-250-1000-W2M2 20W 250-1000mA Intelligent CT Driver
Dimming interface:DMX512/RDM, Push DIM.
T-PWM digital dimming,present a perfect visual experience.

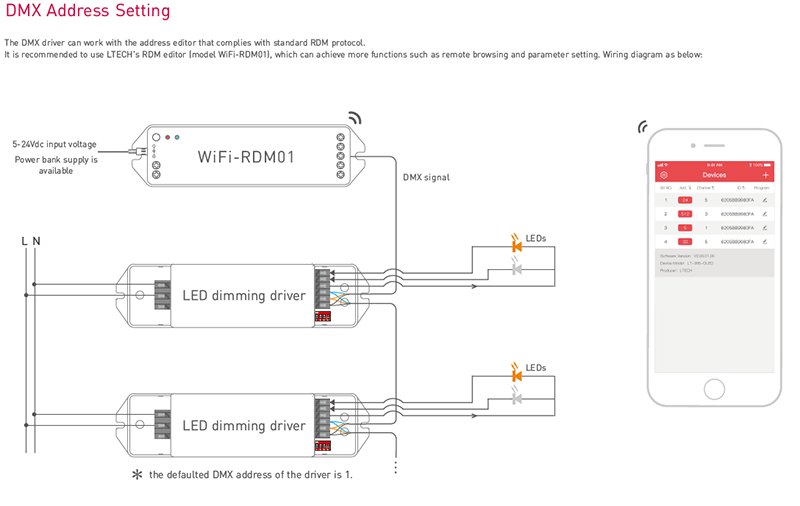

With RDM remote device management protocol.
Dimming range: 0~100%, LED start at 0.1% possible.
With soft-on and fade in function, visual more comfortable.
DIP switch for 16 optional currents' quick selection.
0-100% flicker-free,High frequency exemption level.
Dimming interface with photoelectric isolation, in line with the latest
safety standards, more safe and reliable.
In line with the EU energy efficiency ERP directive,
standby power consumption < 0.5W
Innovative thermal management technology, intelligent power
Over temp. / Over voltage / Over load / Short circuit protection,
Non-load output voltage 0V to prevent damages to LED caused by poor contact.

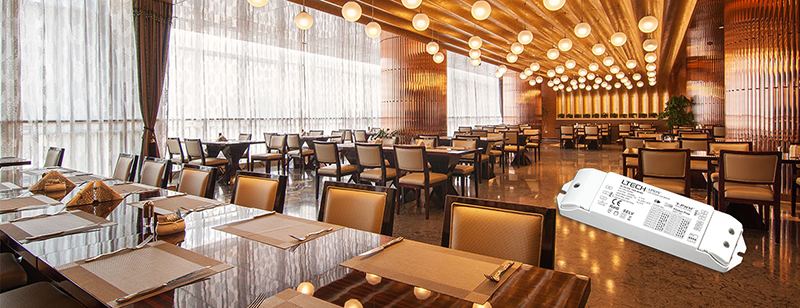

Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor).

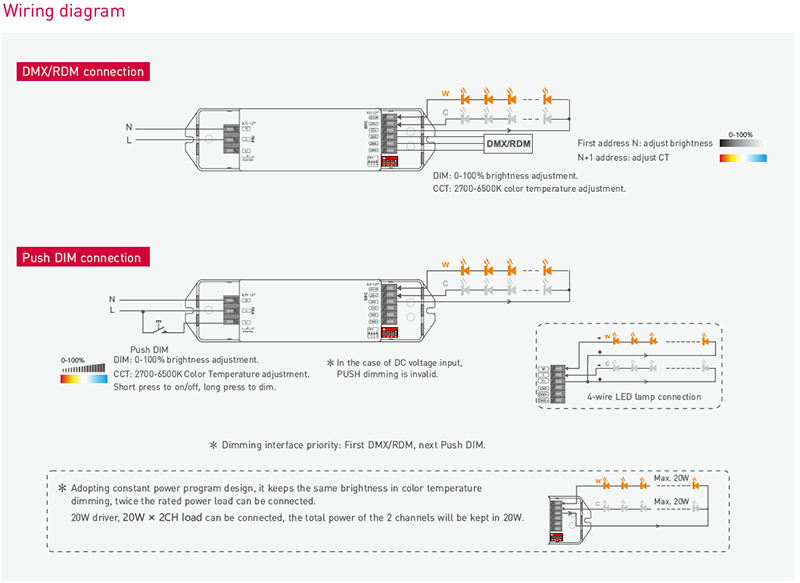

Dimming interface: DMX512/RDM, Push DIM
Input voltage: 100-240Vac (120-300Vdc)
Input current: 115Vac≤0.25A, 230Vac≤0.13A
Output current: 250-1000mA
Output power: Max. 20W
Power factor: PF>0.95/115Vac , PF>0.90/230Vac, at full load
THD: 230Vac@THD≤9%, at full load
Standby power Loss: <0.5W
Inrush current(typ.): Cold start 10A at 230Vac (twidth=40μs measured at 50% Ipeak)
Anti surge: L-N: 2kV
Leakage current: <0.24mA/230Vac
Output voltage: 9-54Vdc
Max output voltage: 59Vdc
Strobe level: No video flicker / High frequency exemption
Dimming range: 0~100%, 0.1% dimming depth.
LF current ripple(<120Hz): <1%
Current accuracy: ±5%
Ripple & Noise: ≤2V
PWM dimming frequency: ≤3600Hz
Working temperature: ta: -20 ~ 50°C tc: 75°C
Working humidity: 20 ~ 95%RH, non-condensing
Storage temp., humidity: -40 ~ 80°C, 10~95%RH
Temp. coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
