WS2811 DC12V C9/S24 Addressable F8RGB LED Pixel Module, 50pcs/String Waterproof IP67 LED String Light
LED Pixel Module each LED can have its own colour and brightness. You can control each LED individually and set it to any colour or animation you want. You can connect the pixels one by one without soldering. IP67 waterproof You can put them outdoors. DC12V low voltage cascade circuit design, safe and energy saving, stable and environmentally friendly. Each led pixel light can be cut out without damaging the remaining pixels. Bright colours, low failure repair rate, flashing, long light.
Application: festivals, wedding background decoration, karaoke halls, concerts, stages, dance halls, hotels, restaurants, commercial buildings, showcases, shops, homes and other places.

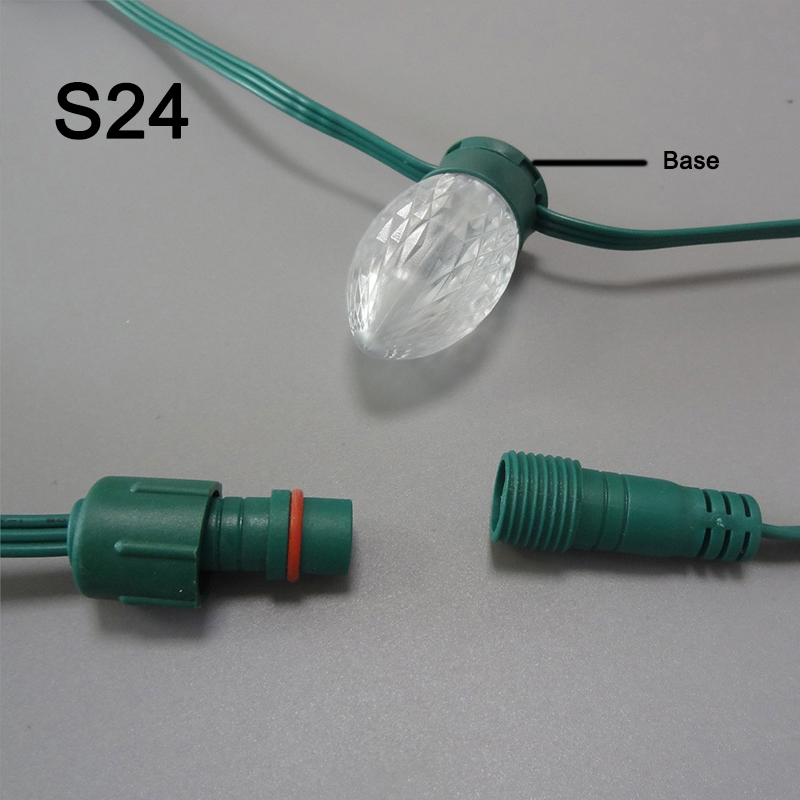

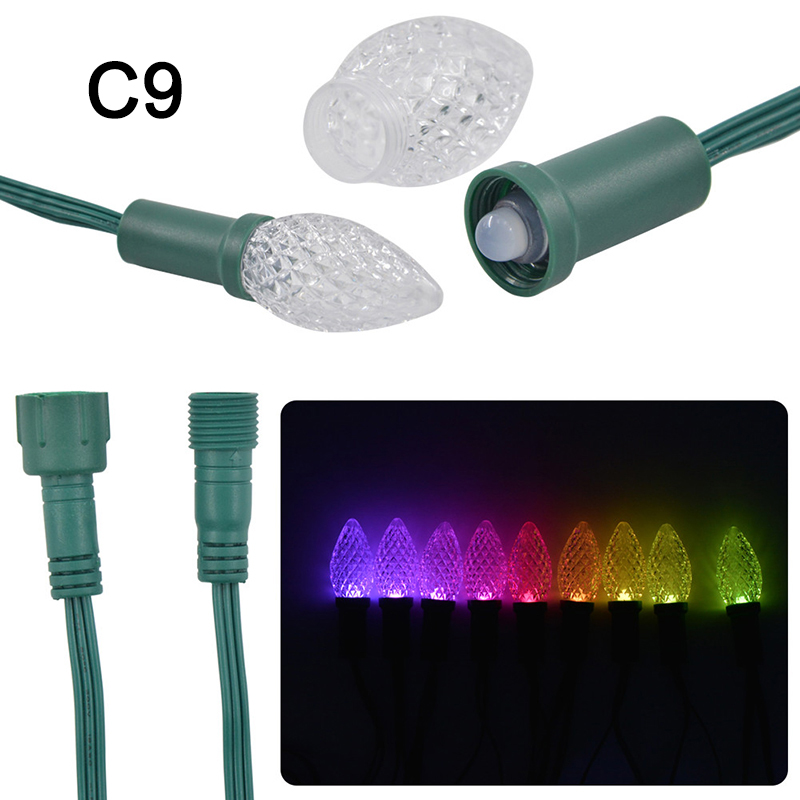

Please note: We provide two types of this LED string light, you can visit the following picture: the base is different (S24 is bigger than C9)
When you choose the picture 3, we will send you the C9 LED string light, if you choose the picture 2, we will send you the S24 LED string light.
Standards and Certifications
Input Voltage(V): DC12V
Shell : C9/S24
Product Lamp Beads: F8RGB*1 Epistar chip
Wire length: 15cm
Line Color: all green
LED Chip: WS2811
Working Temperature: -20°C-60°C
Working Power: 0.6W/pcs
WaterProof Rating: waterproof IP67
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
