Product Information

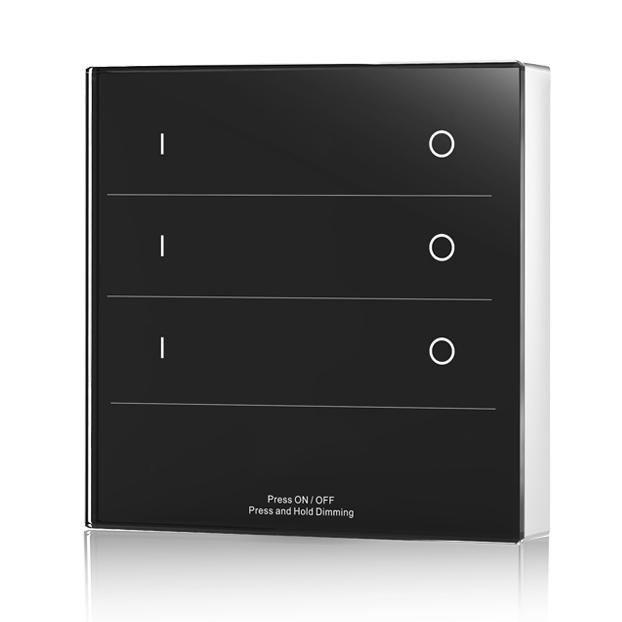

Streamline your lighting control with the SkyDance T20-3, a dedicated 3-zone RF remote for precise brightness adjustment. This sleek, black wall-mounted panel is the perfect solution for managing different areas of single-color LED lighting from a single, intuitive interface. Using a stable 2.4GHz RF signal, it provides smooth, flicker-free dimming without requiring a direct line of sight to the receivers. It’s an ideal choice for residential projects like open-plan living spaces or commercial settings such as retail stores and restaurants where creating distinct lighting ambiances across multiple zones is key. As a core component of the SkyDance control system, the T20-3 offers a reliable and user-friendly way to achieve the perfect light brightness scale for any environment.
Key Features
Independent 3-Zone Control
Manage the brightness of three separate groups of lights independently from one convenient wall panel.
Precise Brightness Dimming
Achieve smooth, step-less dimming from 0-100% to set the perfect mood for any occasion.
Reliable 2.4G RF Signal
Enjoy a stable, responsive wireless connection with a control range of up to 30 meters in open areas.
Sleek Wall-Mounted Design
The modern black glass panel offers a sophisticated look that complements any interior decor.
Ultra-Low Power Consumption
Operates on two AAA batteries with an extremely low standby current (<20μA) for extended battery life.
Technical Highlights
- Utilizes advanced 2.4GHz wireless technology for interference-free communication and fast response.
- Energy-efficient design ensures long operational life from a single pair of AAA batteries.
- Simple one-to-one or one-to-many pairing with compatible SkyDance RF receivers for flexible system configuration.

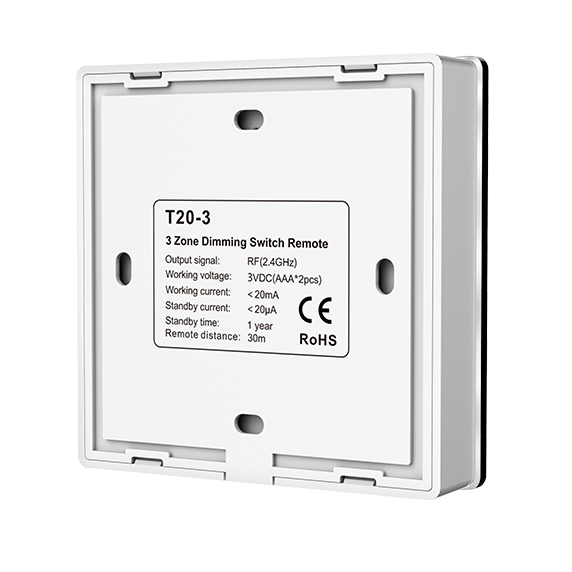

Product Specifications
| Parameter | Details |
|---|---|
| Model | T20-3 |
| Product Type | RF DIM Panel Remote Control |
| Color | Black |
| Input Voltage | 3VDC (2x AAA Batteries) |
| Working Current | <20mA |
| Standby Current | <20μA |
| Output Signal | RF (2.4GHz) |
| Control Distance | 30m (barrier-free space) |
| Control Zones | 3 Zones |
| Primary Function | Brightness Dimming (Single Color) |
| Operating Temperature | -30°C to 55°C |
| IP Rating | IP20 (Indoor Use Only) |
| EMC Standard (EMC) | EN301 489, EN 62479 |
| Safety Standard (LVD) | EN60950 |
| Radio Equipment (RED) | EN300 328 |
| Certifications | CE, EMC, LVD, RED |
Application Scenarios
How to Control & Use This Controller
- Power the Remote: Insert two standard AAA batteries into the compartment on the back of the T20-3 panel.
- Pair with Receiver: Short press the 'match' key on your compatible SkyDance RF DIM receiver. Immediately press the desired zone key (1, 2, or 3) on the T20-3 remote. The connected LED lights will flash to confirm the pairing is successful.
- Control Brightness: Select the zone you wish to control by pressing its corresponding number. Use the brightness adjustment keys or wheel to smoothly increase or decrease the light intensity for that specific zone.
- Manage Multiple Zones: Repeat the pairing process for each receiver in your different zones, assigning each to a unique zone number on the remote. You can now control all three zones independently.
- This product is a remote control only. It must be paired with one or more compatible SkyDance 2.4G RF DIM receivers (sold separately) to function.
- Ensure the power supply and receiver specifications match the voltage and load requirements of your single color LED strip lights.
- The 30m control distance is rated for open spaces. Walls, furniture, and other electronic devices may reduce the effective wireless range.
What's in the Box
- ✓1 x T20-3 3-Zone RF Brightness Remote Control Panel
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What else do I need to make this remote work?
A:You will need at least one compatible SkyDance 2.4G RF single-color (DIM) receiver, a suitable power supply for your LEDs, and the single color LED strip lights you wish to control.
Q: Can this remote control RGB or tunable white LED strips?
A:No, the T20-3 is a single-channel brightness dimmer. It is designed exclusively for controlling single-color LED lights and cannot change colors or color temperature.
Q: Can I control multiple light strips with one zone button?
A:Yes, you can pair multiple receivers to a single zone. For instance, all receivers paired to Zone 1 will respond simultaneously to brightness adjustments made to Zone 1.
Q: What is the wireless range of this remote control?
A:The 2.4GHz RF signal provides a stable control range of up to 30 meters (approximately 100 feet) in an open, unobstructed environment.
Q: Is this remote compatible with systems like Philips Hue or other brands?
A:This remote is specifically designed for the SkyDance control system. It is not compatible with Zigbee systems like Philips Hue or RF systems from other manufacturers.
