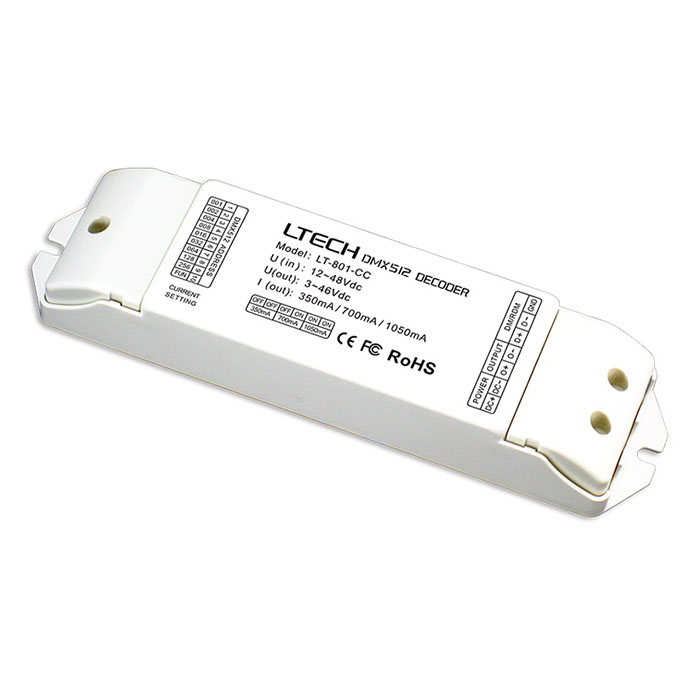

1CH CC DMX-PWM Decoder LT-801-CC
Input signal: DMX512
Input voltage: DC12V～DC48V
Output voltage: DC3V~DC46V
Output current :CC 350/700/1050mA 3 in 1×1CH
Output power: 1.05W~48.3W×1CH
Dimming range: 0~100%
Working temperature: -30℃～55℃
Package Size: L178×W48×H33mm
Weight (G.W): 120g
DMX LED Controller LT-801-CC
