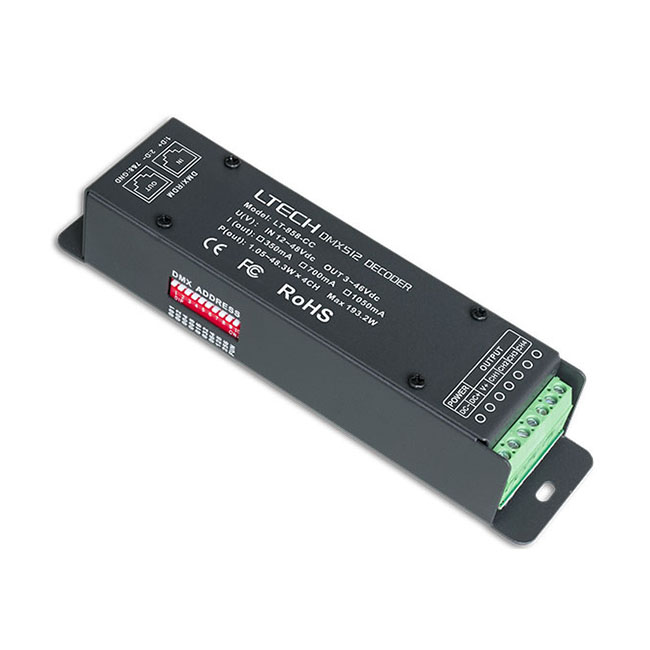

4CH CC DMX Decoder LT-858-CC
LT-858-CC with the standard RDM remote device management protocol supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Realize 0-100% dimming or different lighting effect; workable with a single color, bi-color, RGB or RGBW LED lamps
4CH CC DMX Decoder LT-858-CC
Input signal: DMX512
Input voltage: DC12V～DC48V
Output voltage: DC3V~DC46V
Output current :CC 350/700/1050mA 3 in 1×4CH
Output power: 1.05W~48.3W×4CH
Dimming range: 0~100%
DMX512 socket: RJ45
Working temperature: -30℃～65℃
Package Size: L183×W48×H41mm
