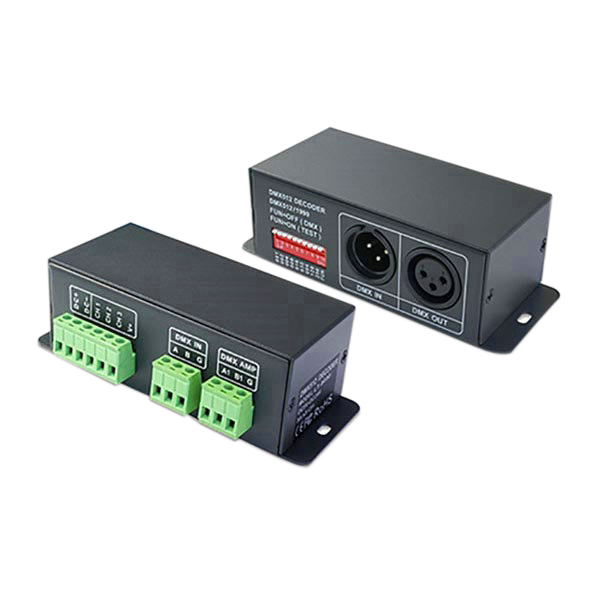

4CH CC DMX-PWM Decoder LT-840-350
LT-840-350 is a 4CH CC DMX512 decoder, output 350mA CC PWM signal per channel, controls hi-power LED lamps without CC driving IC(e.g.: LED downlights) or with the current-limiting resistor(e.g.: LED strips) and the low power LED lamps(e.g.: LED panel lights). The DMX decoder works with DMX512 console, 256 grayscale output per channel, 0-100% dimming range with various changing effect. Equipped with DMX standard XLR-3, RJ45 and green terminal interface, control single color, bi-color, RGB and RGBW/Y LED lights.
LT-840-350 4CH CC DMX-PWM Decoder
Input signal: DMX512
Input power: DC12V～DC48V
Output voltage: DC3V~DC42V
Output current: 350mA CC ×4CH
Output power: 1.05W~14.7W ×4CH Max 58.8W
DMX512 socket: XLR-3, RJ45, Green terminal (with signal amplification function)
Dimming range: 0~100%
Working temperature: -30℃～65℃
Package Size: L180×W82×H50mm
Weight (G.W) : 430g
DMX LED Controller LT-840-350
