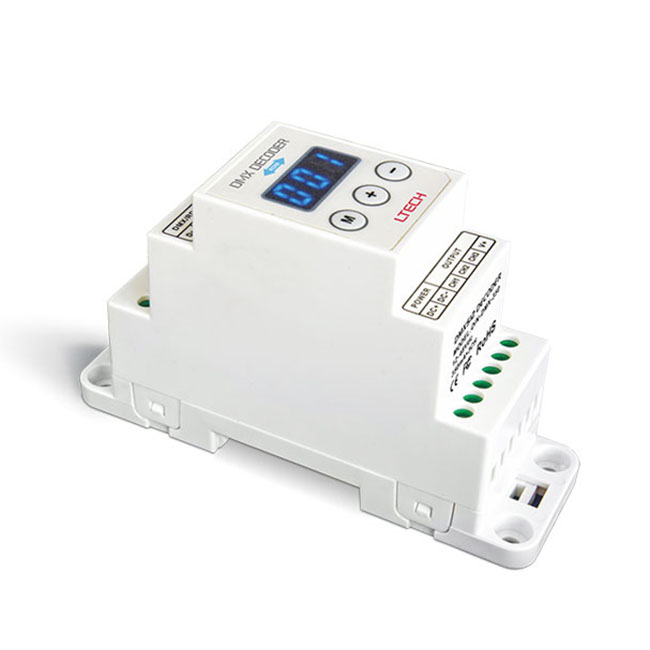

3CH CC DMX Decoder DIN-DMX-350
DIN-DMX-350 DIN Rail DMX decoder have 3 digits digital tube to display DMX address, simple and intuitive read and write DMX address, meanwhile have the self-testing pattern function. With the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). DIN-DMX-350 can work with DMX512 console; realize 0-100% brightness and various changing effects, can control single color, bi-color, RGB LED light.
DIN-DMX-350 3CH CC Decoder
Input signal :DMX512, RDM
Input power: DC12V～DC48V
Output voltage: DC3V~DC42V
Output current :350mA CC ×3CH
Output power :1.05W~14.7W ×3CH Max 44.1W
Dimming range: 0~100%
Working temperature :-30℃～55℃
Package Size :L114×W37×H70(mm)
Weight (G.W): 135g
