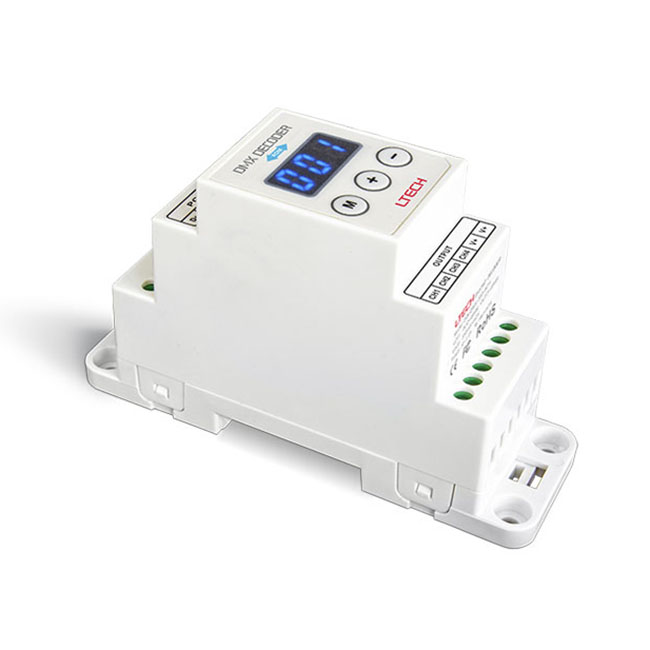

4CH CC DMX Decoder DIN-DMX-350-4CH
DIN-DMX-350-4CH 4CH CC Decoder
Input signal : DMX512, RDM
Input power : DC12V～DC48V
Output voltage: DC3V~DC46V
Output current : 350mA CC ×4CH
Output power: 1.05W~16.1W ×4CH Max 64.4W
Dimming range: 0~100%
Working temperature: -30℃～55℃
Package Size: L114×W37×H70(mm)
Weight (G.W) : 135g
