DC12-36V 3CH Constant Voltage Power Repeater EV3 For RGB LED Strip
Used with various LED PWM constant voltage controller, expand output power of the controller to control more lamps.

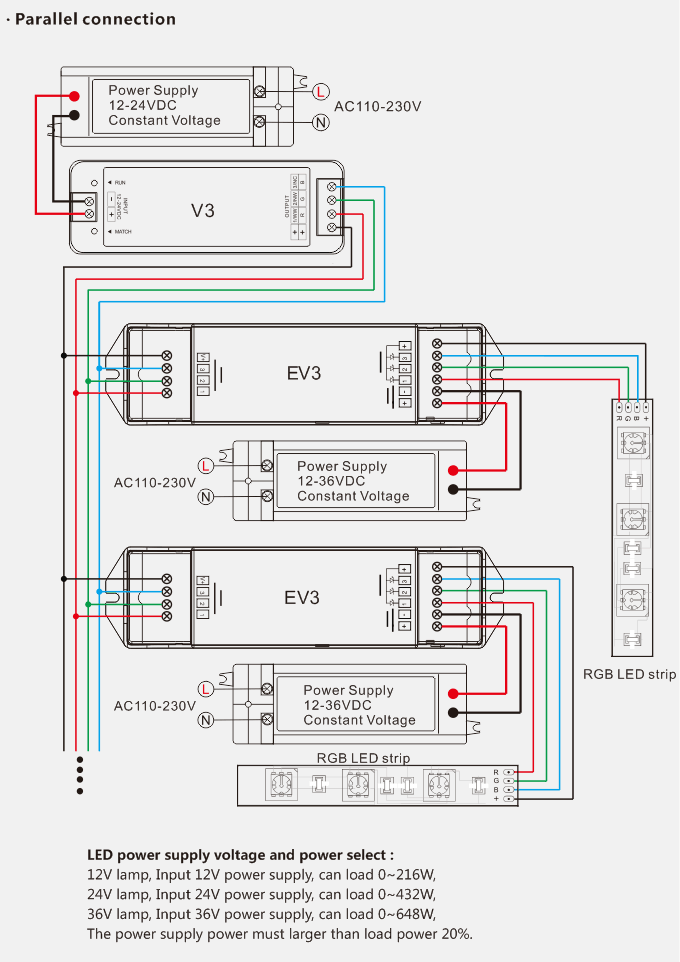

A controller can connect unlimited number of LED power repeaters in series or in parallel,and achieve the synchronous control effects.

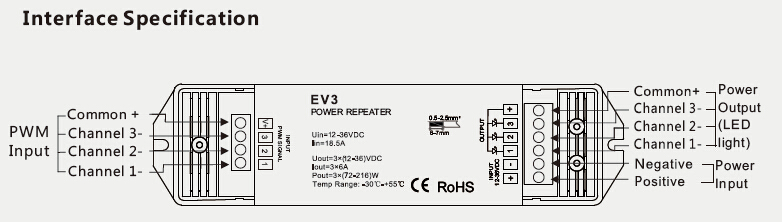

Input voltage: 12-36VDC
Load current: 3CH, 6A/CH
Output power: 3 x (72-216)W
Working temperature: -30℃~55℃

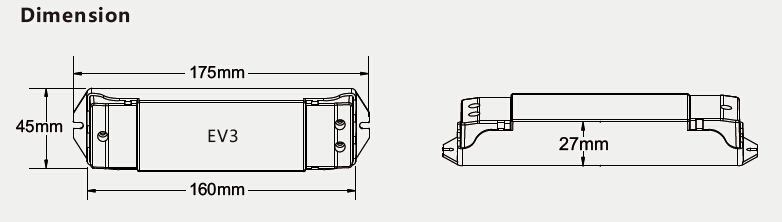

Product size: L175×W45×H27mm
Net weight: 110g
