36W 12VDC CV DALI-2 LED Driver LM-36-12-G1D2
LED Intelligent Driver (constant voltage):
Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant
polycarbonate protective housings.

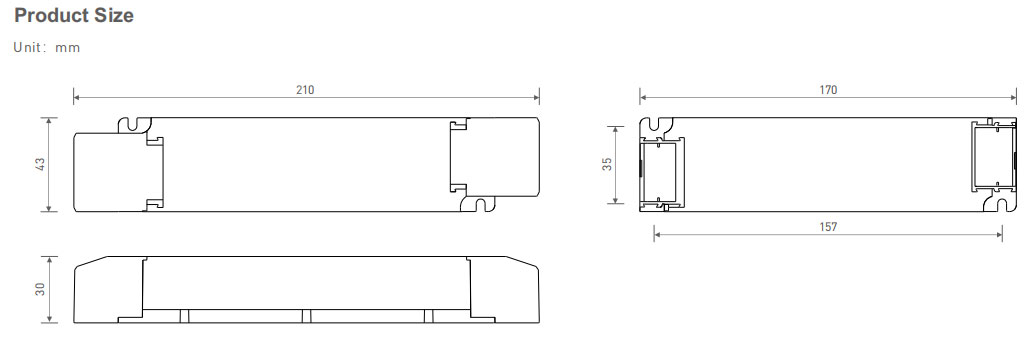

The design of dismountable end cap allows you to adjust the length of housing
depending on your needs.
Dimming interfaces: DALI-2, Push DIM.
Dimming range: 0~100%, dimming down to 0.1%
Flicker-free with high frequency exemption level in 0~100% dimming process.
High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.
Comply with the EU’s ErP Directive, stand-by power consumption＜0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the lifetime the driver.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
DALI bus standard IEC62386-101,102,207.
Suitable for lamp applications of indoor Ⅰ/Ⅱ/Ⅲ types.
Up to 50000-hour life time.
5 year warranty (Rubycon Capacitor)
|Output Voltage Range:||12Vdc ± 0.5Vdc|
|Output Current:||Max. 3A|
|Output Power:||Max. 36W|
|Output Power Range:||0~36W|
|Strobe Level:||High frequency exemption level|
|Dimming Range:||0~100%, dimming down to 0.1%|
|Overload Power Limitation:||≥102%|
|Ripple & Noise:||Switch ripple≤200mV, noise≤800mV|

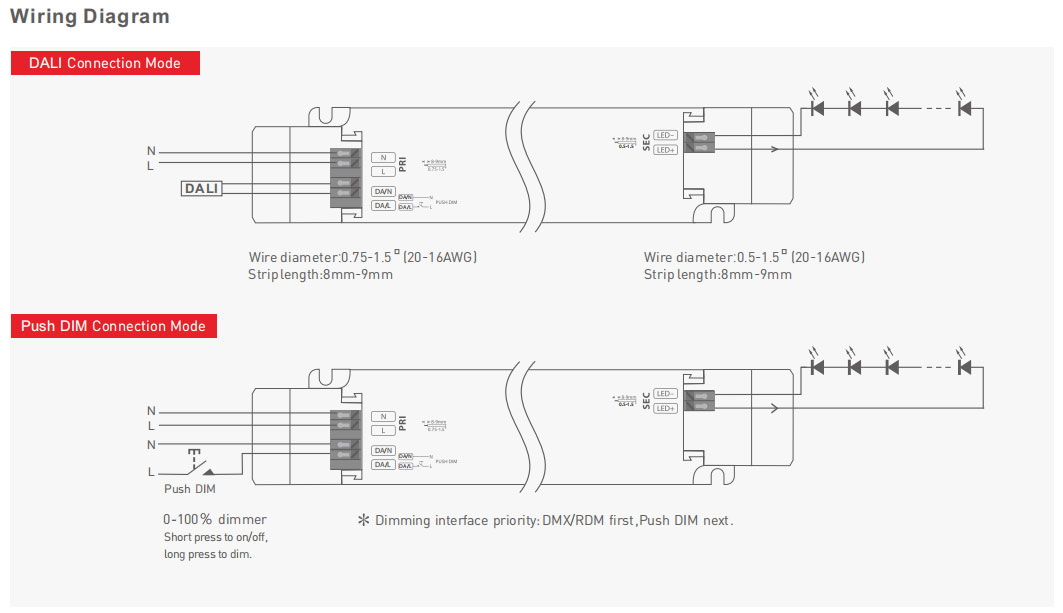

|Dimming Interface:||DALI-2, Push DIM|
|Input Voltage:||200-240Vac / 200-280Vdc|
|Input Current:||Max. 0.28A/230Vac|
|Power Factor:||PF>0.95/230Vac, at full load|
|Standby Power Loss:||<0.5W|
|Inrush Current(typ.):||Cold start 25A at 230Vac|
|Control Surge Capability:||L-N:2KV|
|Leakage Current:||Max. 0.5mA|
|Working Temperature:||ta: -20°C ~ 50°C tc: 90°C|
|Working Humidity:||20 ~ 95%RH, non-condensing|
