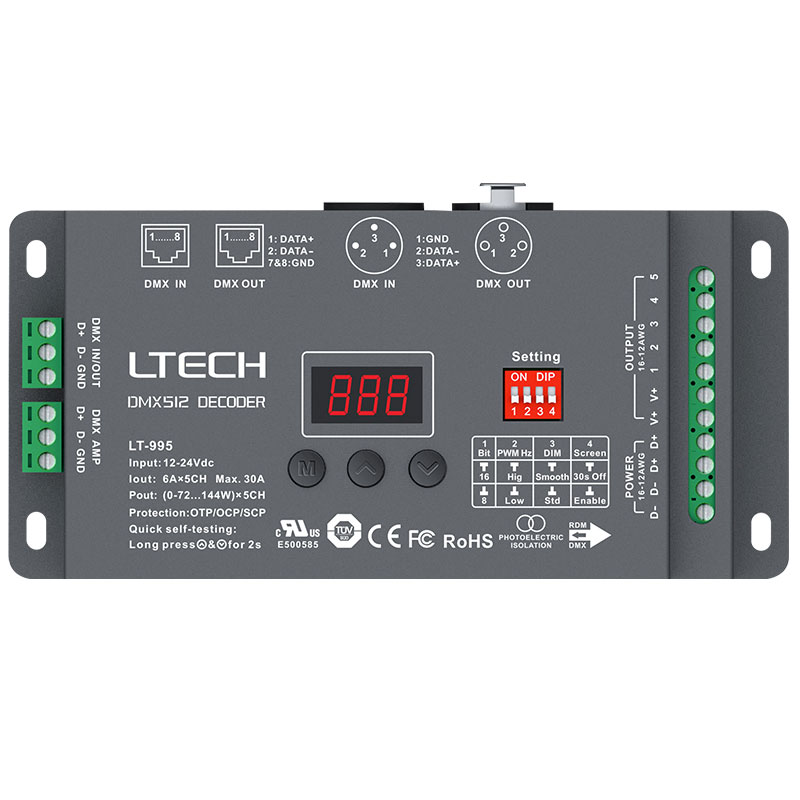

5CH CV DMX Decoder LT-995

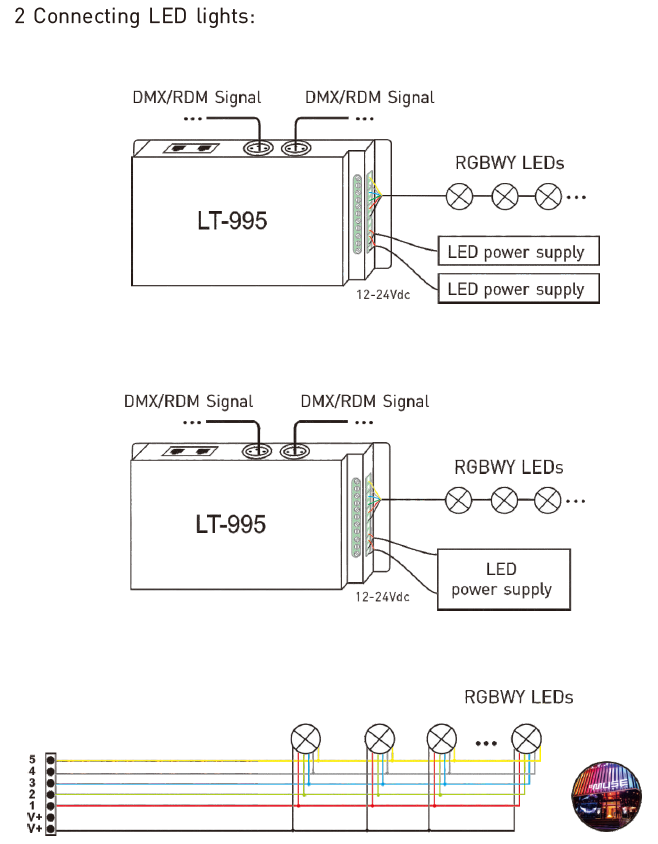

1. Designed with 5 channels output, and Max. 6A current per channel, up to a 720W output power
2. Easy operation with OLED screen and the touch buttons.

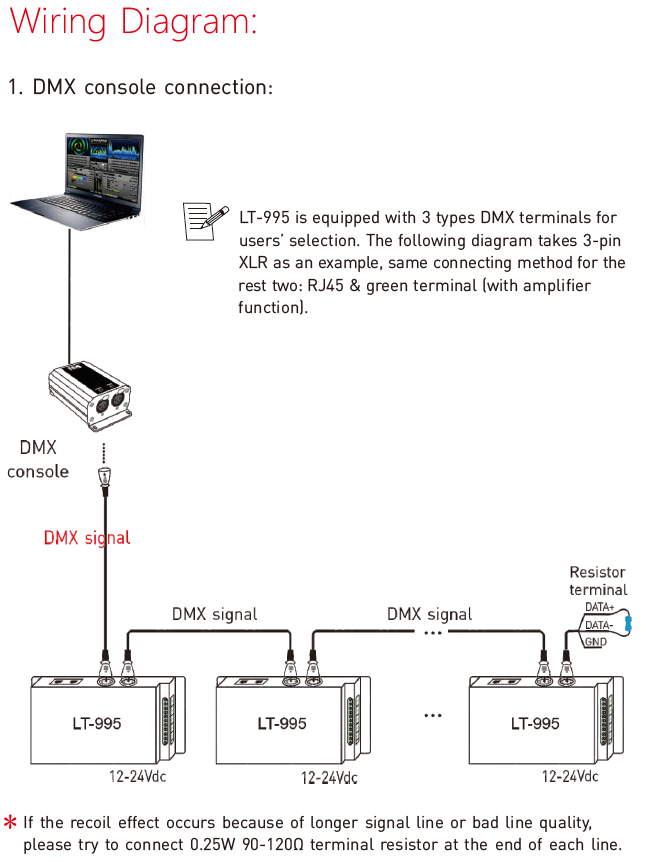

3. Support 3 kinds of DMX ports: 3-pin XLR, RJ45, green terminal.
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With short circuit protection and over current protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Input signal : DMX512/RDM
Input voltage : DC12V～DC24V
Max load current : 6A x 5CH Max. 30A
Max output power: (0~72W...144W) x5CH Max. 720W
DMX512 socket : 3-pin XLR, RJ45, green terminal
Gray scale level : 8bit(256 levels)/16bit(65536 levels)
Working temperature: -30℃～65℃

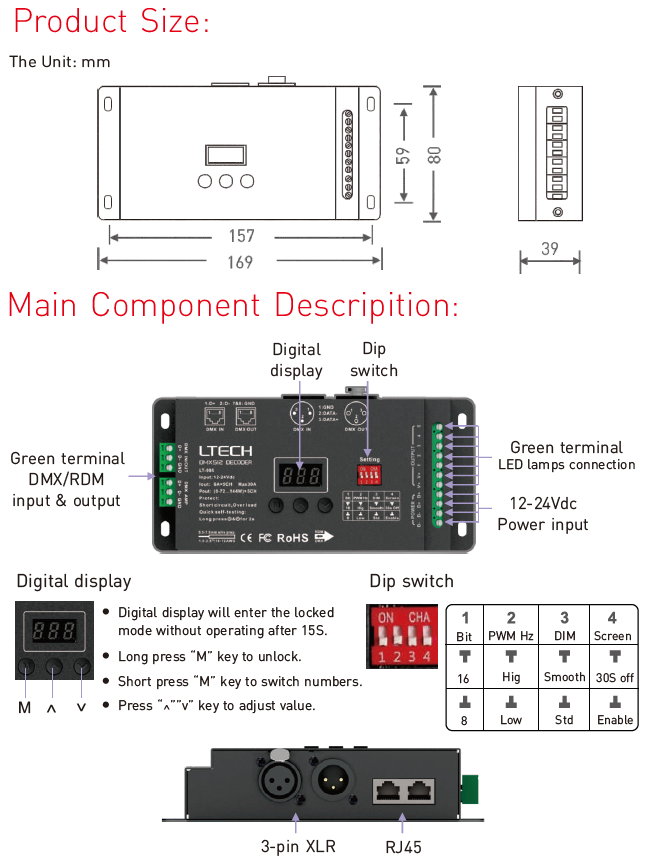

Dimension : L169×W80×H39mm
Package Size : L182×W91×H41mm
Weight (G.W): 550g
