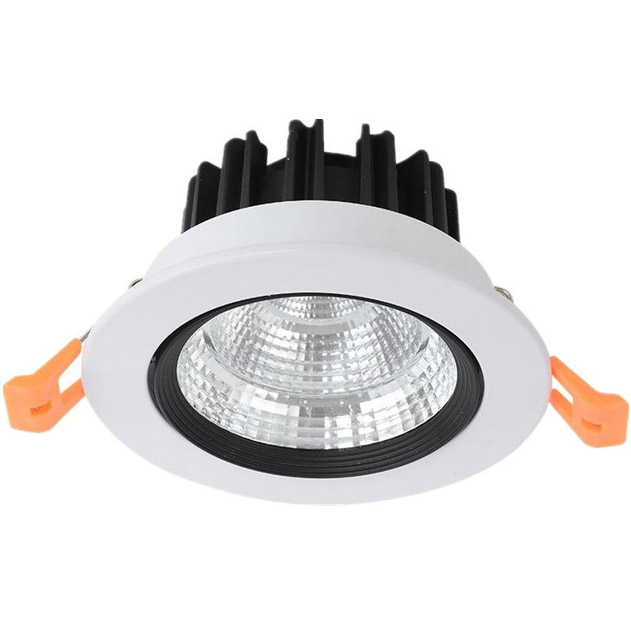

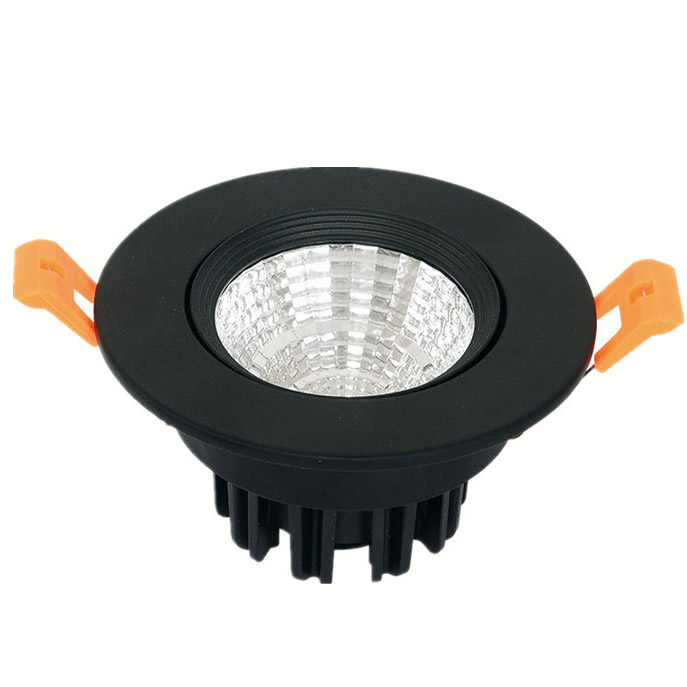

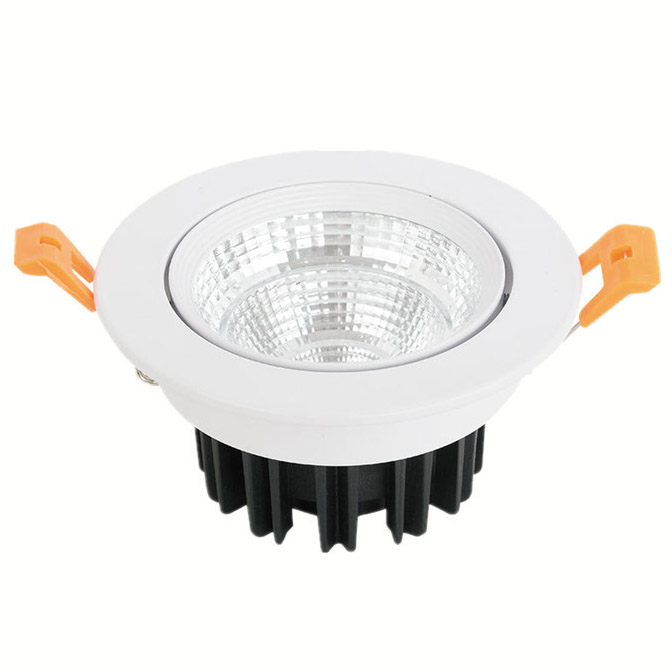

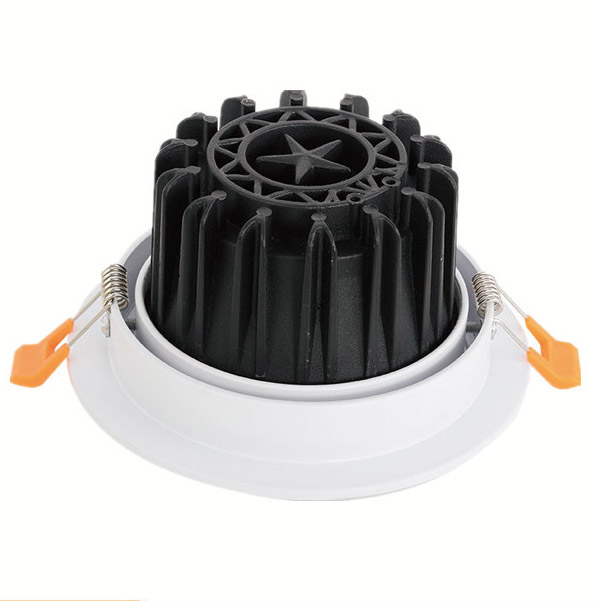

5~ 30Watt universal COB Ceiling Light - Flush Mount LED Downlight - Die casting - 400Lumens - Three years warranty
The Product Parameters:
Main material: outer ring aluminum profile, radiator die casting
Appearance color: white + black
Lamp form: wiring type
Lamp installation method: embedded installation
Whether to adjust the angle: the left and right swing angle
Related certification: EU ce certification, hazardous substances (RoHS)
Drive mode: external power supply
Protection level: IP42
Power: isolated, constant current power supply
Ambient temperature: -20 ° C ~ +45 ° C
Warranty period: 3 years
5W Size: Opening Hole55mm/2.17" Diameter 68mm/2.68"
7W Size: Opening Hole70mm/2.76“ Diameter 90mm/3.54”
10W Size: Opening Hole90mm/3.54“ Diameter 108mm/4.25”
15W Size: Opening Hole120mm/4.72“ Diameter 138mm/5.43”
20W Size: Opening Hole140mm/5.51“ Diameter 160mm/6.3”
30W Size: Opening Hole160mm/6.3“ Diameter 180mm/7.09”
This LED downlights support AC Triac dimming, please use our Triac dimmer controller
Imported American CREE LED COB Celling lights source.
Installation method: embedded, spring bracket fixed.
High color rendering index, strong color reproduction, suitable for high-end commercial lighting applications.
Light speed angle: 15/24/38/60°
LED COB Celling lights have passed the CE certification and RoHS certification.
Materials and processes
Lamp body: It is extruded with aluminum anodizing to make the heat dissipation better.
Adopting the original imported light source from the United States, the specific brightness is high, LED COB Celling lights decay is small, the current margin is large, and the quality is guaranteed.
Commodity display, commercial lighting, such as car display, jewelry display, brand clothing display and star-rated hotels, high-end clubs, cultural relics, chain stores, brand business halls, boutique windows, walls and other key lighting, wall washing and leisure Atmosphere lighting in entertainment venues.
