DC5-24V 5x 3A each color RGB+CCT Led Strip Amplifier

Model: CONAMP-RGB-1 Review stars 0.0 (0 Reviews) Various options in stock
Price$5.98
Qty Discounts Off Price
1-4
$5.98
5-9
$5.86
10-14
$5.68
15+
$5.44
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The CONAMP-RGB-1 is a 5-channel PWM data repeater designed to expand long-distance runs of RGB+CCT LED strip lights without voltage drop, color shifting, or signal attenuation. Operating across a wide DC 5V to 24V range, this rgb controller amplifier receives synchronous pulse-width modulation (PWM) commands from a primary RGB+CCT controller and delivers up to 3A per channel (15A total load capacity) to an auxiliary lighting segment. Designed for 6-wire common anode linear configurations, it permits installers to extend SMD5050 60LEDs/m dual-white and color-changing tape up to an extra 10 meters on a dedicated secondary LED power supply.

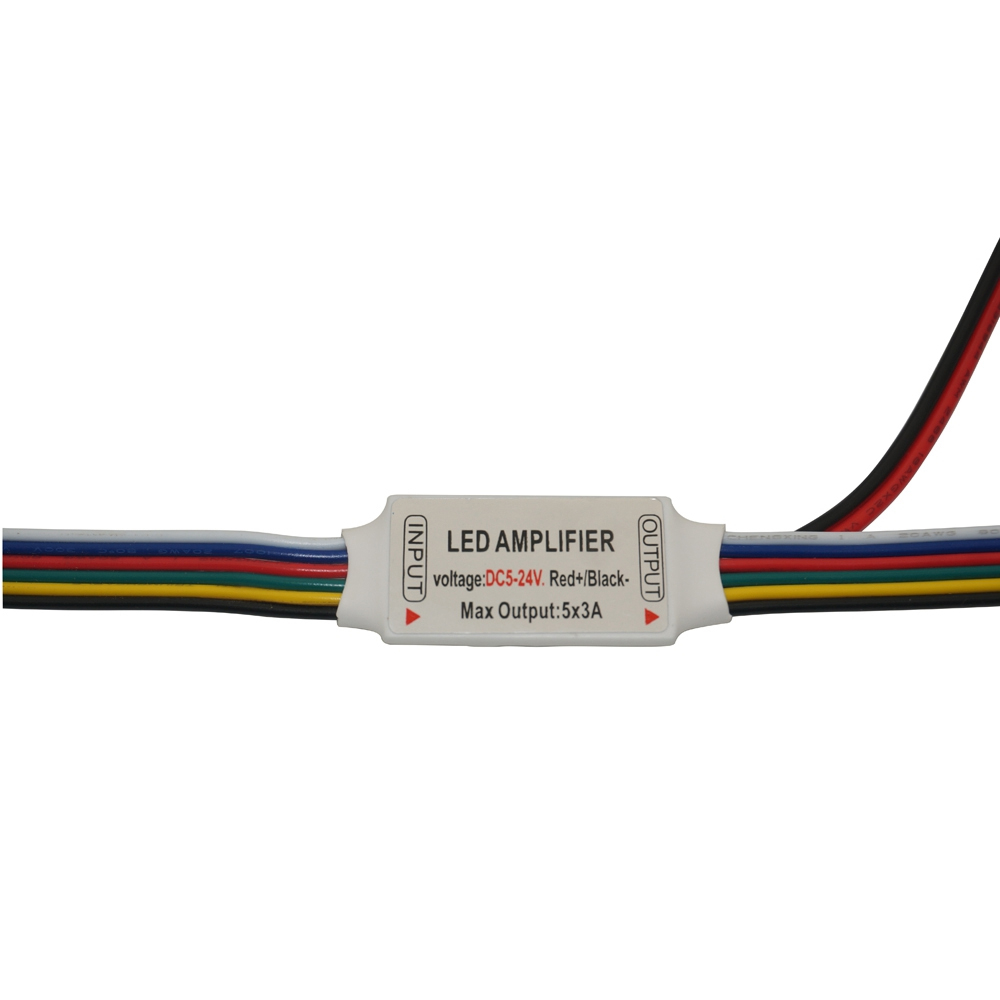

DC5 24V 5x 3A each color RGB+CCT led strip amplifier
CONAMP-RGB-1 5-channel RGB+CCT LED strip amplifier wiring terminals and dimensions.

Core Capabilities & Performance

5-Channel Synchronous Repeating

Carries independent control lines for Red, Green, Blue, Warm White, and Cool White, preserving exact color calibration and tunable white balance across extended runs.

Wide DC 5V to 24V Range

Adapts seamlessly to 5V USB setups, 12V automotive/residential accents, and 24V architectural installations using matching DC supply voltages.

15A High-Current Output

Supplies 3A per channel continuously, enabling safe drive capacity for 75W at 5V, 180W at 12V, or 360W at 24V DC configurations.

Zero Delay PWM Forwarding

Processes input PWM frequencies instantly to ensure flawless dynamic color chasing and smooth fading without visual lag between lighting sections.

Common Anode Compatibility

Utilizes standard 6-wire (+, R, G, B, W, WW/CW) shared positive line logic, fitting standard commercial and residential RGB+CCT tape lights.

Extended Thermal Tolerance

Functions reliably across ambient operating temperatures from -20°C up to 60°C, supporting compact enclosure placement.

Technical Performance Details

  • Eliminates downstream resistance loss by receiving low-voltage control signals and re-powering subsequent strips via a secondary transformer.
  • Doubles system run capability: each amplifier added allows you to drive more than twice the original LED count from a single master console.
  • Rated for continuous duty with an operating lifespan exceeding 50,000 hours under rated electrical and thermal conditions.
  • Screw-down terminal blocks provide solid mechanical grips for 20 AWG to 16 AWG stranded conductor hookup wire.
  • Directly complements existing multi-zone wireless RF, Zigbee, DMX, or wall-mount master control hardware without requiring software pairing.

Product Specifications

ParameterDetails
Model NumberCONAMP-RGB-1
Product Type5-Channel RGB+CCT LED Power Signal Amplifier
Input Operating VoltageDC 5V - 24V
Output VoltageDC 5V - 24V (matches input voltage)
Output Channels5 Channels (R, G, B, W, CW/WW)
Maximum Output Current3A per channel (5x 3A)
Total Maximum Current15A
Maximum Output Power (5V)75W
Maximum Output Power (12V)180W
Maximum Output Power (24V)360W
Control MethodPWM (Pulse Width Modulation) Signal Relay
Polarity / Connection ModeCommon Anode (V+)
Recommended Strip CapacityUp to 10 meters SMD5050 60LEDs/m RGB+CCT tape
Operating Temperature-20°C ~ +60°C
Expected Operating Lifespan>50,000 Hours
Housing TypeInsulated Compact Enclosure with Screw Terminals
CertificationsCE, RoHS

Recommended Installation Scenarios

Large Architectural Cove Lighting Perimeter ceiling coves often exceed 15 to 30 continuous meters. Inserting this 5-channel repeater every 10 meters prevents color fading and maintains uniform white temperatures around the entire room perimeter.
Commercial Hospitality & Restaurant Accents Long linear runs along bars, display cabinets, and banquet seating demand identical dynamic color shifting. This unit relays unified dimming instructions across multiple isolated power zones seamlessly.
Retail Display & Exhibit Showcase Runs When multiple display cases require synchronized RGB ambient accents alongside precise tunable white task illumination, this amplifier allows a single central console to manage entire product banks.
Multi-Room Synchronized Residential Lighting Allows homeowners to control under-cabinet, toe-kick, and crown molding lighting from one master wall switch, utilizing separate local transformers to manage electrical loads safely.

How to Wire & Install This RGB Controller Amplifier

  1. Disconnect all AC mains power before making any electrical connections to the drivers, strips, or amplifier.
  2. Connect the primary DC power supply to your master RGB+CCT controller and wire the first run of LED tape (up to 5m or 10m depending on strip wattage).
  3. From the end of the first LED run, connect the 6 output conductors (V+, R, G, B, W, CW) to the INPUT terminal block of the CONAMP-RGB-1 amplifier, observing correct polarity.
  4. Connect a secondary DC power supply (matching the strip voltage: DC 5V, 12V, or 24V) to the DC Input terminals of the CONAMP-RGB-1.
  5. Connect the beginning of your next run of RGB+CCT LED strip lights to the OUTPUT screw terminals of the amplifier (V+, R, G, B, W, CW).
  6. Restore mains power, power on the master controller, and verify that color balance, white CCT adjustments, and dimming synchronize evenly across both runs.
⚠ Safety & Installation Precautions
  • Voltage matching rule: The secondary power supply connected to the amplifier must match the voltage of the LED strip exactly (e.g., use a 24V supply for 24V LED tape).
  • Do not overload: Ensure the connected strip on the output terminals does not exceed 3A per color channel (15A total load across all 5 channels).
  • Common positive logic: Always connect the positive wire to the V+ terminal. Reversing polarity will prevent the LEDs from lighting and can damage output FETs.
  • Ventilation: Mount the amplifier in a dry, ventilated junction enclosure or cavity allowing heat dissipation between -20°C and 60°C.

Package Contents

  • ✓1x CONAMP-RGB-1 DC5-24V 5x 3A RGB+CCT LED Strip Amplifier
  • ✓1x Basic Terminal Wiring Diagram

Frequently Asked Questions

Q: What does this RGB controller amplifier actually do?

A:It samples the PWM dimming signals coming from the end of an existing LED strip and amplifies them using a fresh secondary power source. This prevents voltage drop and allows you to double or triple your installation run without overloading your master controller.

Q: Are my led strip lights rgb or rgbw or rgb+cct?

A:Count the copper solder pads or wire conductors on your LED strip: standard RGB has 4 pins, RGBW has 5 pins, and RGB+CCT (tunable white plus RGB) has 6 pins (+, R, G, B, W, WW/CW). This amplifier has 5 output channels plus common positive, making it specifically designed for 6-pin RGB+CCT strips.

Q: Can I use this amplifier with 5V or 12V LED strip lights?

A:Yes. The unit accepts any DC input from 5V to 24V. You must ensure your power supply voltage matches your LED strip voltage (e.g., 5V power supply for 5V strips, 12V supply for 12V strips).

Q: How many amplifiers can I link in one continuous system?

A:You can connect amplifiers in series (controller -> strip 1 -> amp 1 -> strip 2 -> amp 2) or in parallel (controller -> signal splitter -> multiple amplifiers). There is practically no limit, provided each amplifier has a properly sized power supply.
