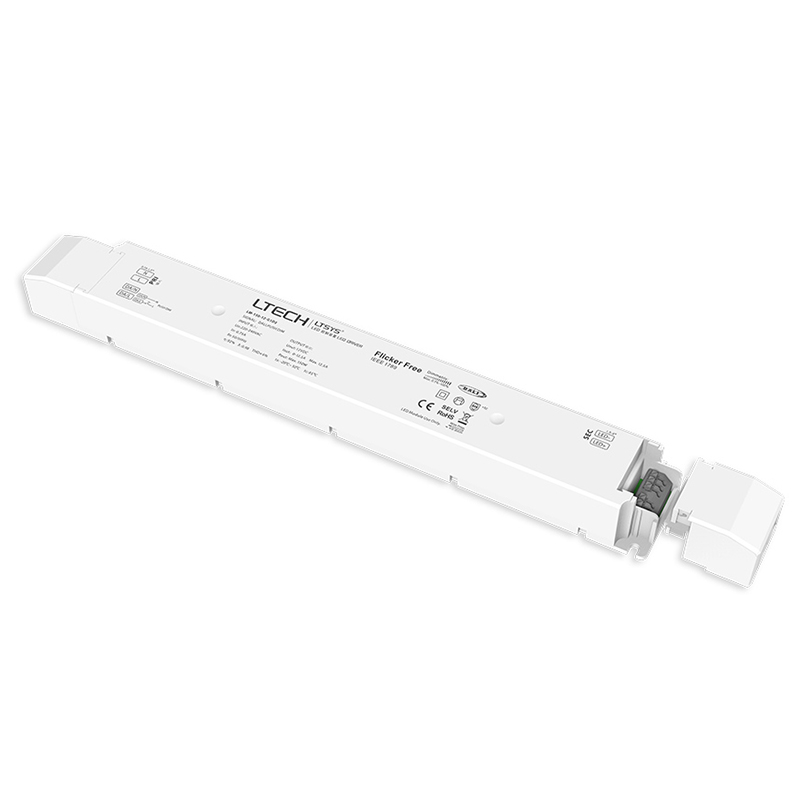

LM-150-12-G1D2 DC12V 150W (200-240VDC) DALI Dimmable Driver
Dimming interface: DALI 2.0, Push DIM
Dimming range from 0-100%, LED start at 0.1% possible.
0-100% flicker-free ,High frequency exemption level.
High Efficicient driver: efficiency 93%, PF>0.98, THD<6%.
In line with the EU energy efficiency ERP directive, standby power consumption <0.5W
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Fully-protected plastic housing with design of dismountable end cover.
DALI bus standard: IEC62386-101,102, 207.

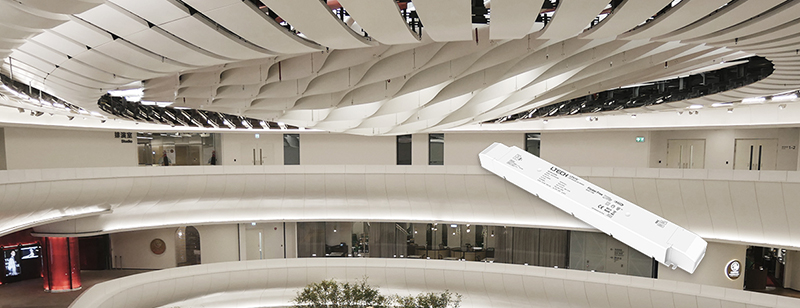

Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Up to 50000-hour life time
5 years warranty (Rubycon capacitor).
Output Voltage: DC12V
Output Current: Max. 12.5A
Output Power: Max. 150W
Output Power Range: 0~150W
Strobe Level: High frequency exemption level
PWM Frequency: 3600Hz
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Overload Power Limitation: ≥102%
Ripple & Noise: Switch ripple≤200mV, noise≤500mV

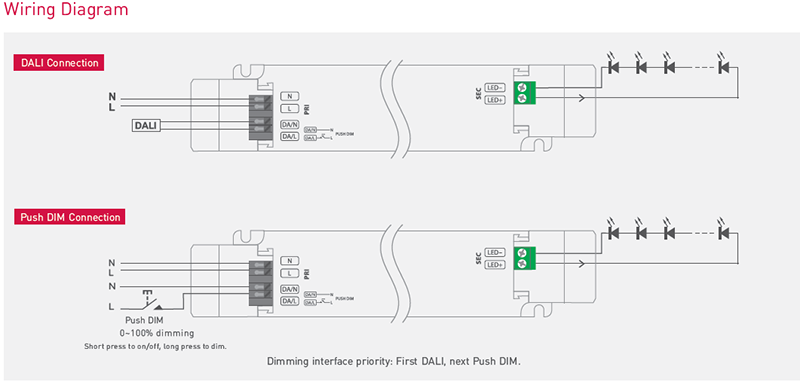

Dimming Interface: DALI2.0, Push DIM
Input Voltage: 220-240Vac, 200-280Vdc
Input Current: Max. 0.75A/230Vac
Power Factor: PF>0.98/230Vac, at full load
THD: <6% at 230Vac, at full load
Standby Power Loss: <0.5W
Leakage Current: Max. 0.5mA
Working Humidity: 20 ~ 95%RH, non-condensing
Working Temperature: ta: -20°C ~ 50°C tc: 85°C
Storage Temp., Humidity: -40°C ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C (0-50°C)
