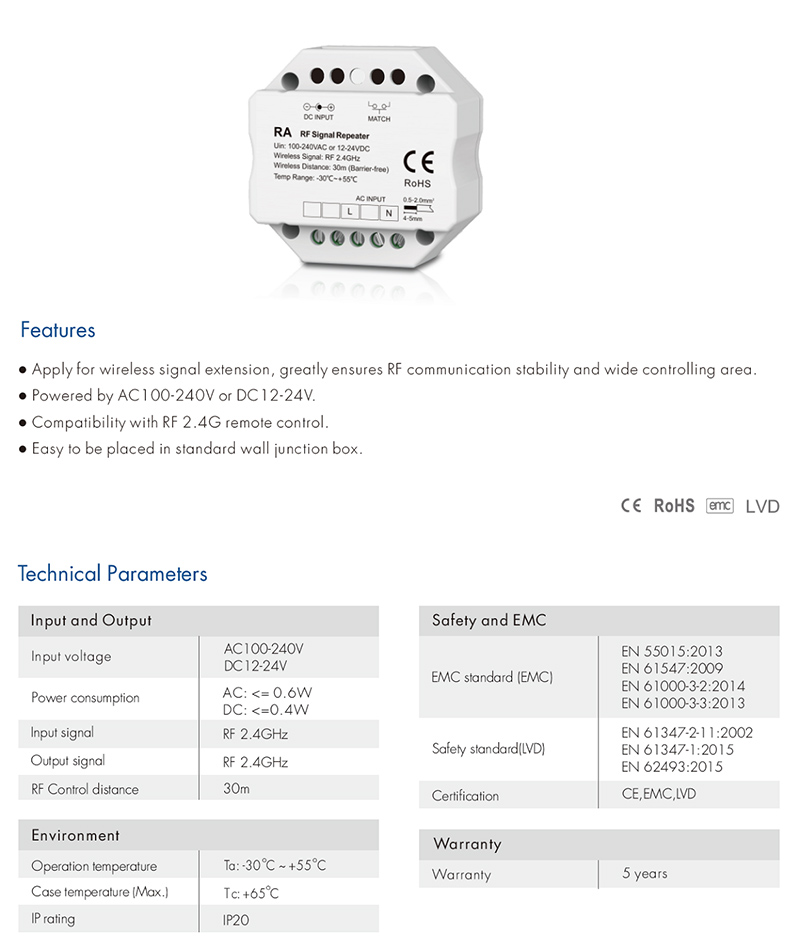

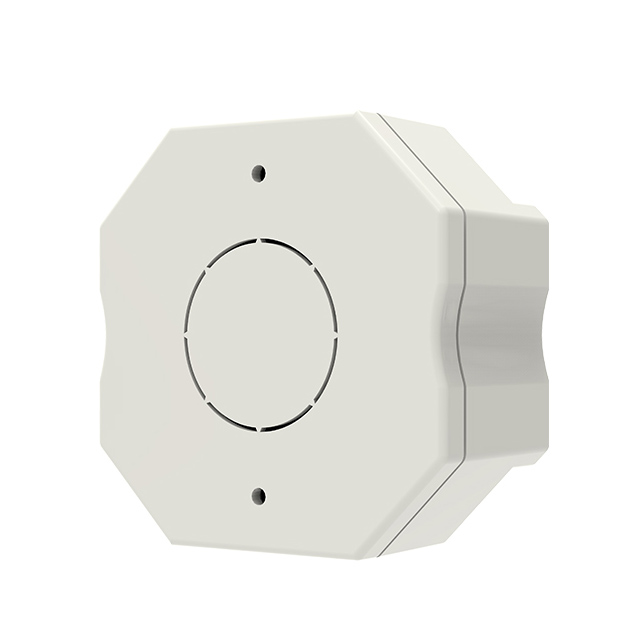

AC100-240V or DC12-24V RF Signal Repeater RA
Apply for wireless signal extension, greatly ensures RF communication stability and wide controlliing area.
Powered by AC100-240V or DC12-24V
Compatibility with RF 2.4G remote control.

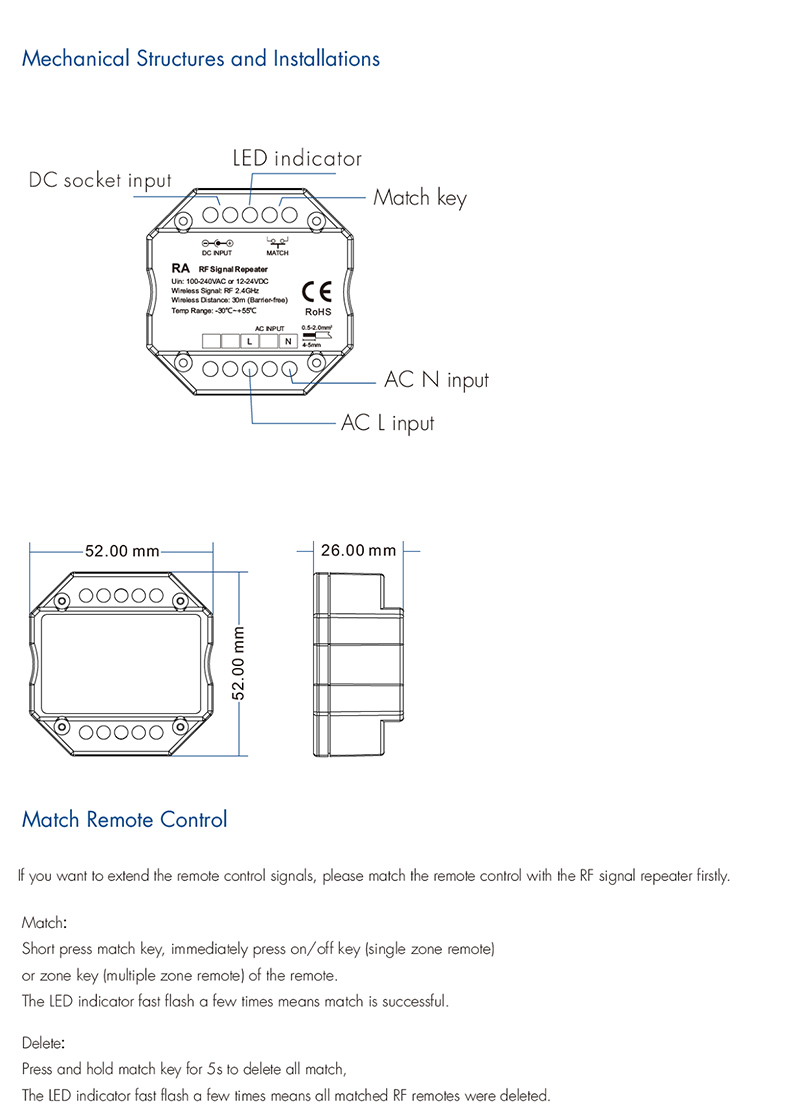

Easy to be placed in standard wall junction box.
Input and Output
Input Voltage: AC 100-240V
Power consumption: AC: <=0.6W
Input signal: RF 2.4GHZ
Output signal: RF 2.4GHZ
RF Control distance: 30m
Operation Temperature: -30℃~+55℃
Case temperature(MAX.): Tc:+65℃
IP rating: IP20
Safety and EMC
EMC Standard (EMC): EN55015:2013
Safety Standard(LVD): EN61347-2-11:2002
Warranty: 5 years
