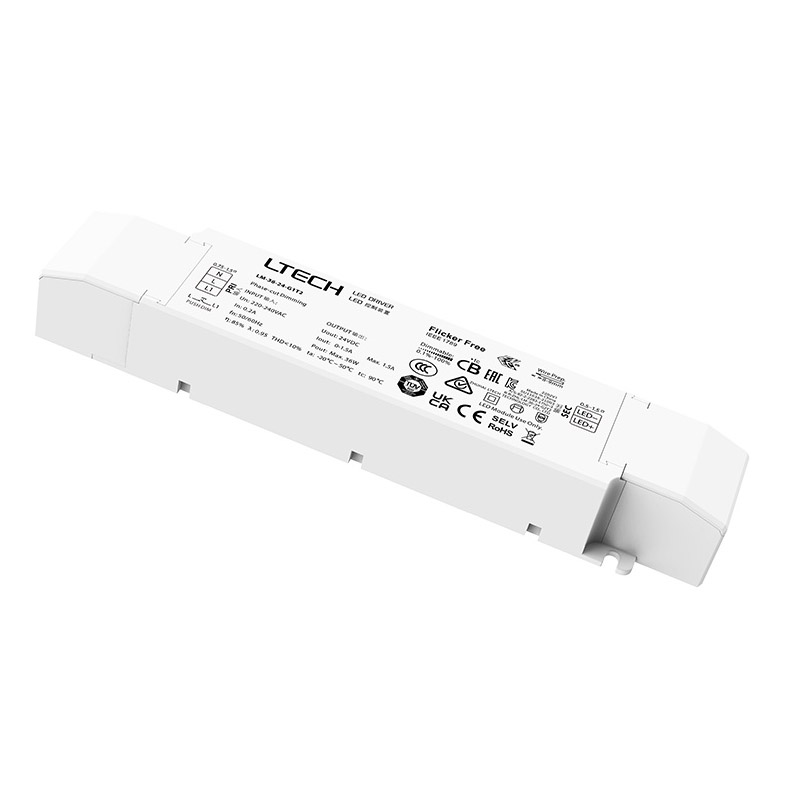

LM-36-24-G1T2 36W 24VDC CV Triac LED Driver
LED Intelligent Driver (Constant Voltage)
Small size and lightweight. Adopt SAMSUNG/COVESTRO V0 flame-resistant polycarbonate protective housings.

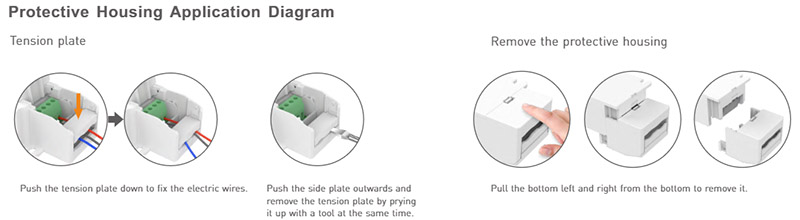

The design of a dismountable end cap allows you to adjust the length of housing depending on your needs.
With soft-on and fade-in functions, the visual is more comfortable.
Dimming range: 0~100%, dimming down to 0.1%.
0-100% flicker-free, High-frequency exemption level.

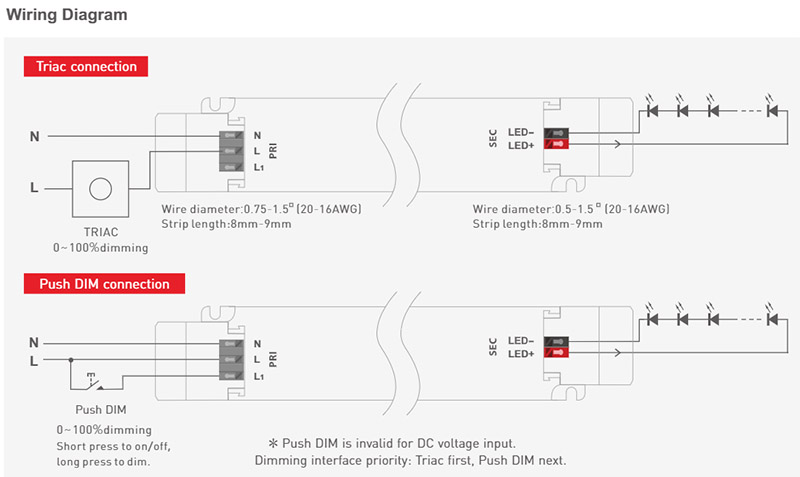

Leading-edge (Triac), Trailing edge (ELV) phase-cut, and Push DIM.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the lifetime of the driver.
Overload / Over temp. / Short circuit / Over voltage protection, recover automatically.
Suitable for internal lights application for I/II/III.
Up to 50000-hour lifetime.
5-year warranty (Rubycon capacitor).
