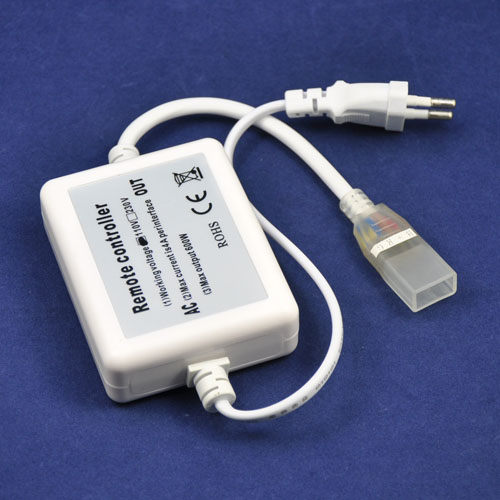

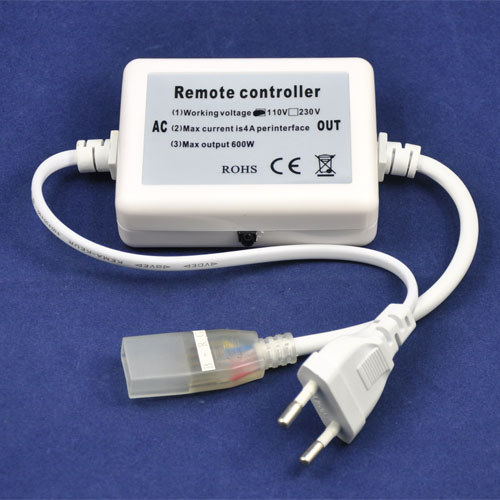

This High voltage Dimmer EU Plug LED controller with RF remote control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. 110/220V Input, output 600W. Applicable to 50 (164ft) RGB color changing high voltage flexible led light strips. Free sent high voltage led strip accessories.
Controller Type: High Voltage Led Controller
Input Voltage: 110/220V
Output Watts: 600W
Connection mode: common anode G+RB output (If you need other line output, please contact us)
Control mode: infrared remote control
Application: Hight Voltage RGB color change led strip lights.
Output:: 3 circuits (R / G / B)
Dimension: L90 * W70 * H28
Gross Weight/Package: 350g
Receiving range: 20meters
IR Remote Control
Power supply: 23A battery
Cover material: ABS
Fabrication processing: multicolour printing & UV varnish
Functions of Keys
1. Key 1: on / off
2. Key 2: light changing mode (15 modes)
3. Key 3: color light / white light switching mode
4. Key 4: turn up (brightness / speed)
5. Key 5: turn down (brightness / speed)

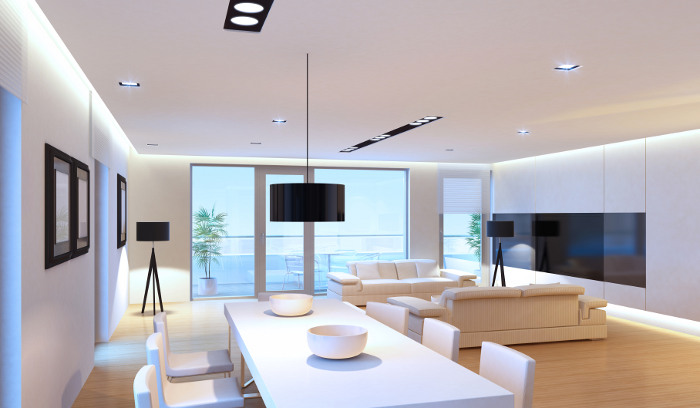

Cove LED lighting

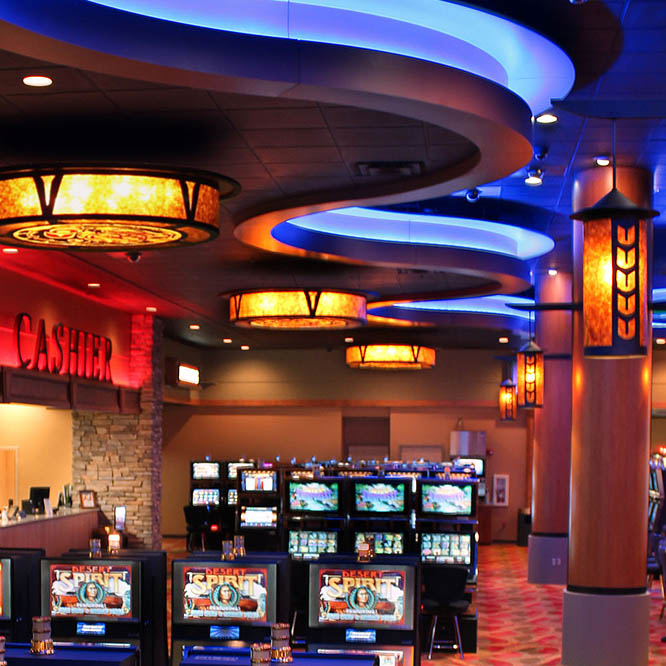

Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
led stage lighting

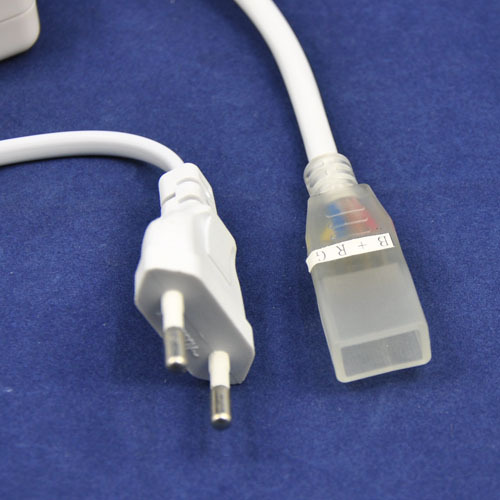

A. is 110V/220V power input, the output high voltage 110/220 v article lamp directly. Article 110/220 v meet in the same line, at the same time electricity.
B. should be in strict accordance with the wiring. Red, green, black and blue four lines, the black line is the line. Otherwise the color with the remote control signal may not to be relatively color or out of sync.
C. the quality assurance for one year. Artificial damage or misuse damage is not within the warranty.
D. can theoretically with the highest 5050-60 light RGB light 50 meters.(according to the measured, to achieve ideal control effect, suggested that connect 3528 RGB colorful lights with 50 m or 5050 RGB lights with 30 meters)
Supply input voltage of this product is AC110/220V.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting high voltage led strip lights and load.
For indoor use only - this product is not waterproof or weatherproof.

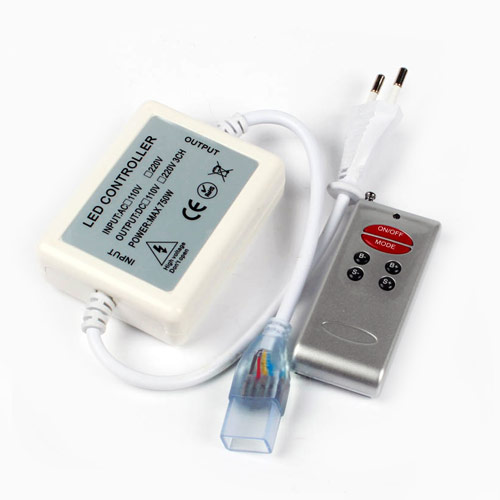

1 x High Voltage led dimmer controller
1 × RF wireless remote control
1 x Piece of User's Manual
