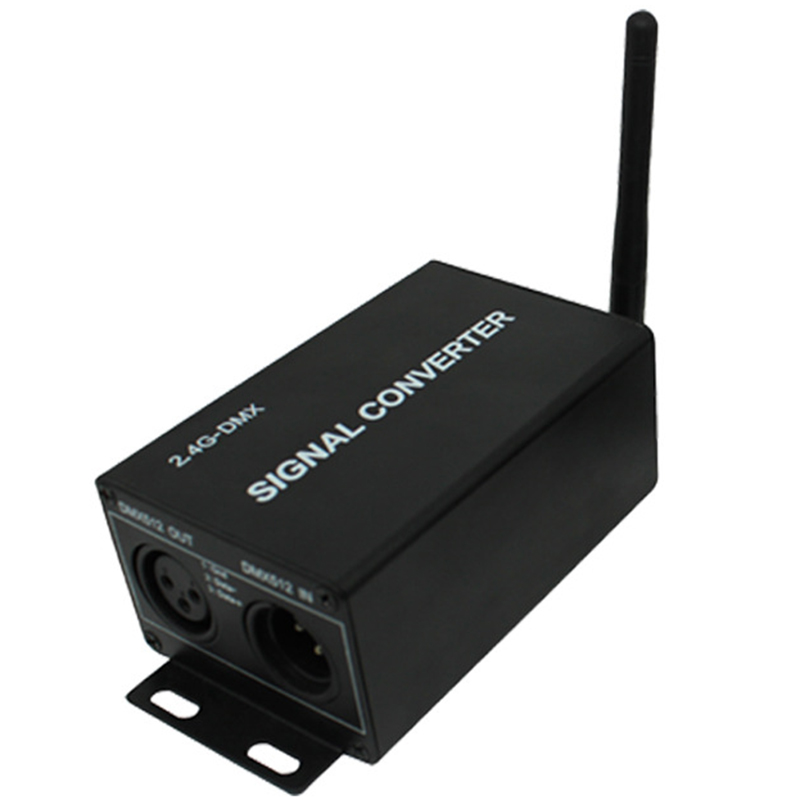

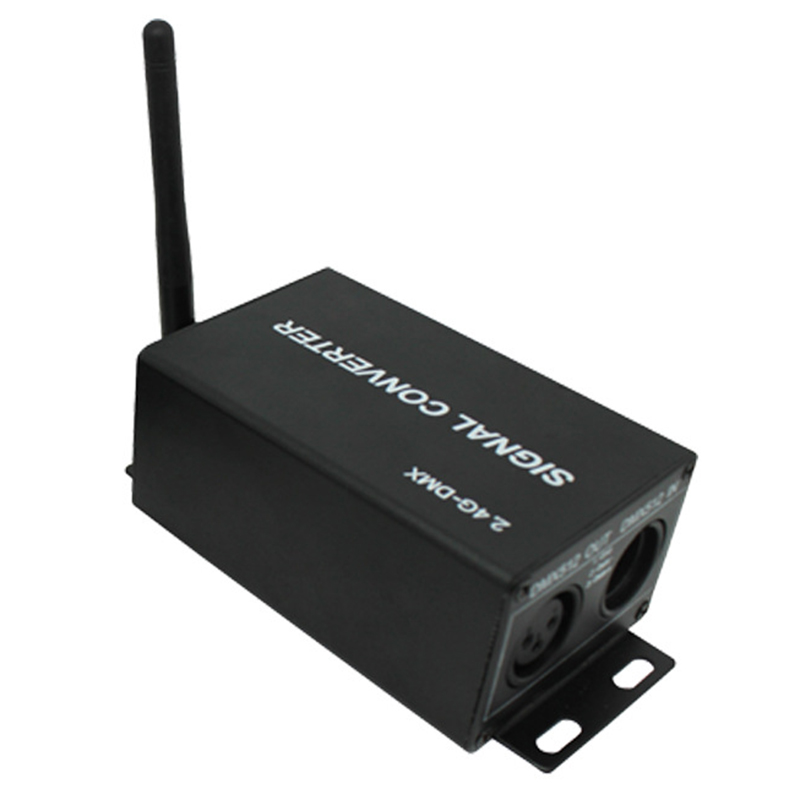

DMX2400 2.4G-DMX Signal Transceiver Converter, DMX512 Wireless Signal Repeater
2.4 G - DMX signal converter transmit standard DMX512 control data via wireless,also can transfer between lamps and lamps online data. The product thoroughly solved the light console and lamp, lamp and lamps wireless transmission of data,completely remove the long depend on twisted pair. In the data transmission process no delay, the data real-time and reliable. This product adopt 2.4 G global open ISM frequency band, free license to use, strong anti-jamming ability.
Suitable for areas: stage lighting, large-scale theatrical performances, stadium lighting, temporary stage show, urban lighting system, TV, conference center, professional theater, theme park, song and dance halls, bars and small artistic performances.
Standards and Certifications
Working temperature: -20-60 ℃
Supply voltage: DC12V -24V
Support channel: 512

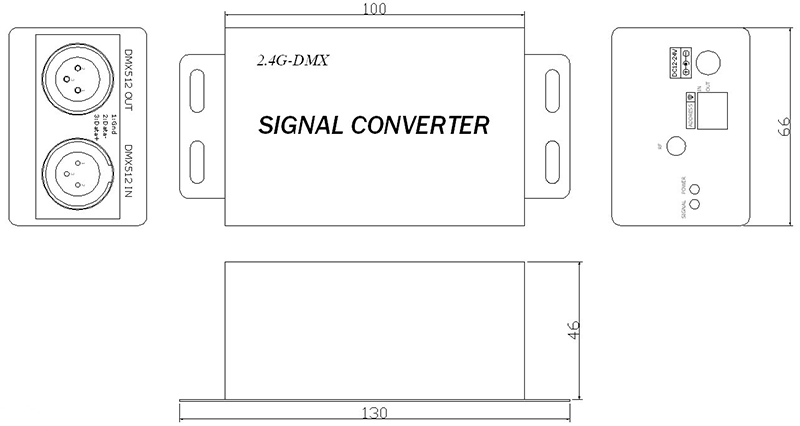

External dimension: L130*W66*H46 mm
Packing size: L146*W95*H50 mm
Net weight: 182g
Gross weight: 285g
Emission power: 20dBm
Wireless frequency: 2.4GHz
Max transmission distance: 200M
Power input interface: A conventional DC power socket is used as the power input interface, and a DC plug cable is provided.

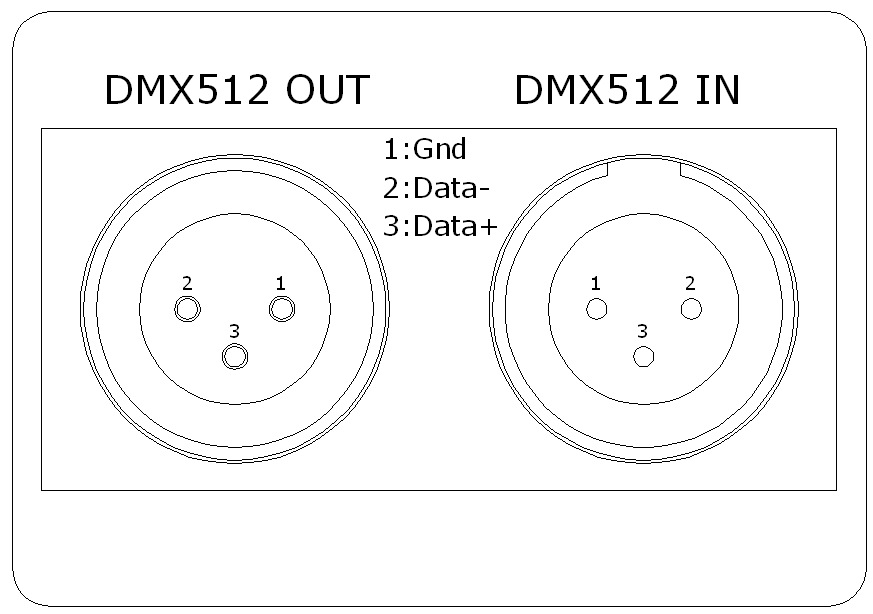

DMX signal input/output interface: use three-core card dragon seat as signal input/output interface, equipped with male plug female plug,
The interface is as follows:
Instructions for use

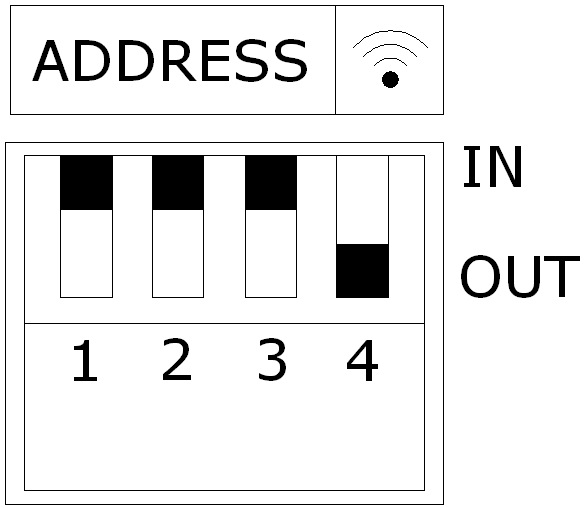

The controller can send and receive DMX signals. It is realized by dialing on the side. The 3 Address in front of the dial switch is the controller ID number. When multiple sets of converters are used in the same area, you can set different The IDs distinguish them so that they do not interfere with each other. Up to 8 groups of IDs can be set; the last digit is used for transmission/reception control, as shown below:
The last digit dials up to indicate receiving 2.4G wireless signal;
The last digit dials down, which means sending 2.4G wireless signal;

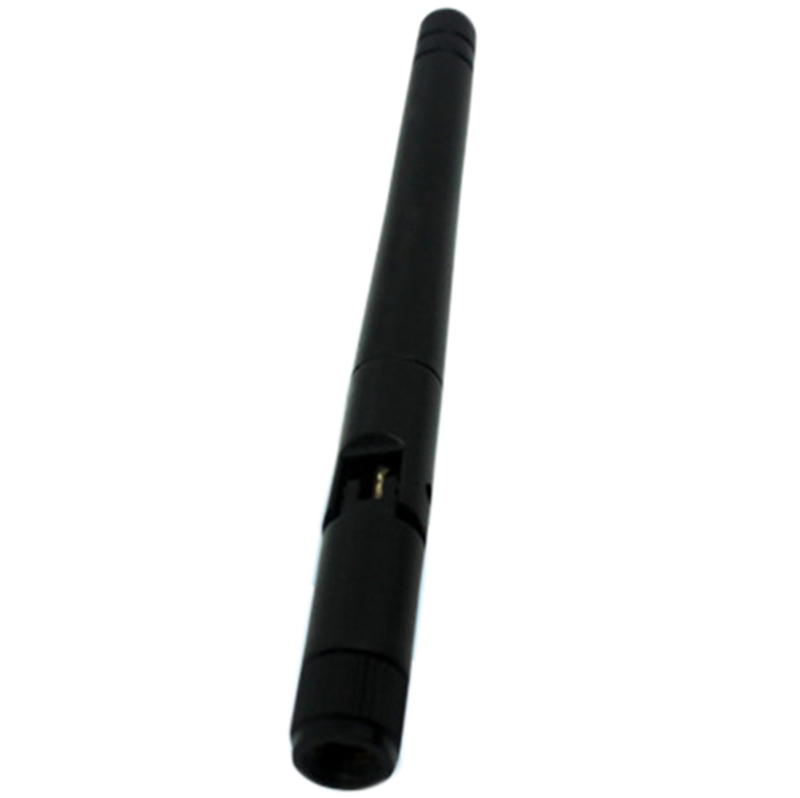

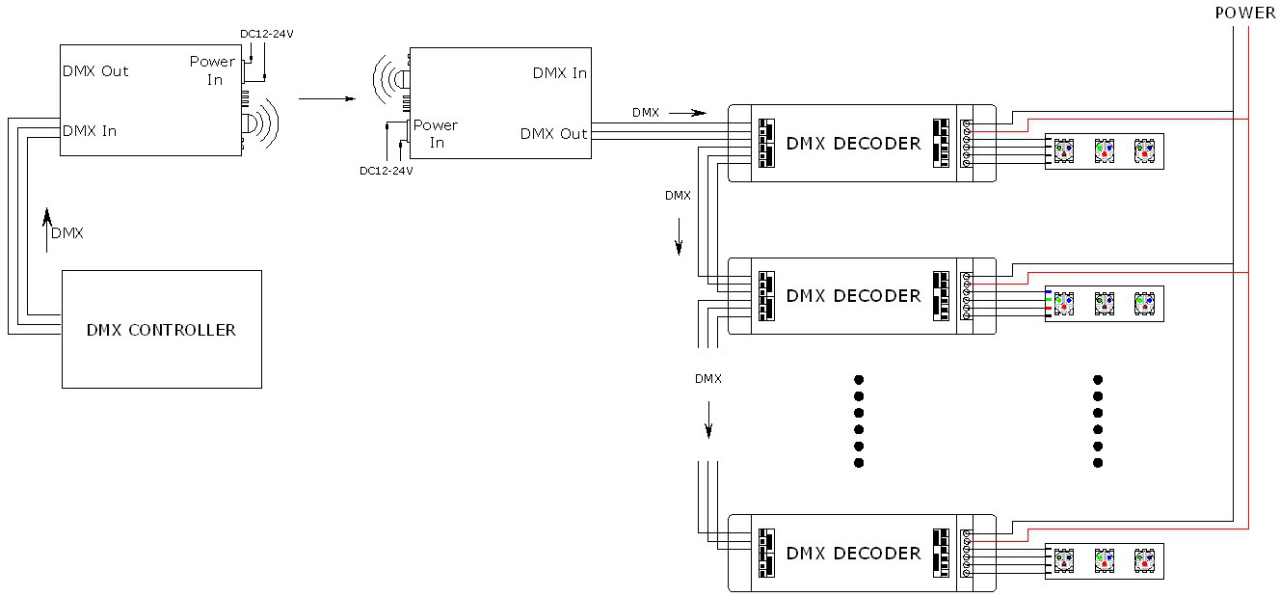

Before use, first install the wireless signal antenna, adjust the dialing IDs of the first three addresses of the two controllers to be the same (otherwise communication is impossible), adjust the fourth dialing code of the controller used for transmission to OUT, and receive the controller Then transfer to IN. After connecting the male and female plugs of the two 3-core card faucet included in the package according to the label, connect the wires as shown below:
When the controller is working normally, the indicator SIGNAL will light up.
