Product Information
This sample box provides physical silicone housing specimens from the JC Series to verify cross-section dimensions, light diffusion, bend radius, and mounting compatibility before ordering production reels for your led neon flex light installations. Due to extended factory schedules for the NC series, orders are fulfilled directly with the JC Series sample box, or you can check the YT Series. Built from heat-resistant, non-yellowing silicone rubber, each profile sample allows fabricators to verify how flexible LED strip lights mount inside distinct channel geometries.

Key Features
Physical Dimension Verification
Inspect exact exterior millimeter dimensions, inner slot widths, and wall thickness across assorted JC Series silicone extrusions.
Multi-Angle Beam Profiles
Examine top emitting silicone LED strip diffuser housings alongside side emitting silicone LED diffuser variants and 360-degree round profiles.
Silicone Thermal Durability
Evaluate non-yellowing extruded silicone material rated for temperatures ranging from -40°C to +200°C in outdoor conditions.
Protective Presentation Case
Organized into a padded briefcase that keeps labeled neon tube led samples clean and ready for client mockups and jobsite submittals.
Real-World Bend Testing
Confirm minimum bend diameter and contour flexibility for curved architectural coves, lettering, and custom signage layouts.
Technical Highlights
- Contains authentic cross-section segments representing top-view, side-view, and round neon tube lights.
- Demonstrates dotless light diffusion when paired with high-density LED strip lights or flexible COB LED strip lights.
- Labeled compartments cross-reference catalog channel specifications and downloadable PDF engineering datasheets directly.
- Silicone construction resists UV radiation, salt spray, diluted acids, and atmospheric moisture without hardening.
- Eliminates sizing guesswork by allowing test fitting of solder pads, quick connectors, and wire leads into inner channels.

Product Specifications
| Parameter | Details |
|---|---|
| Model | LEDNEON-SAM-BOX-NC |
| Sample Series Included | JC Series |
| Category Path | LED Neon Strip Lights > LED Neon Flex Light Accessories |
| Profile Material | Food-grade extruded silicone rubber |

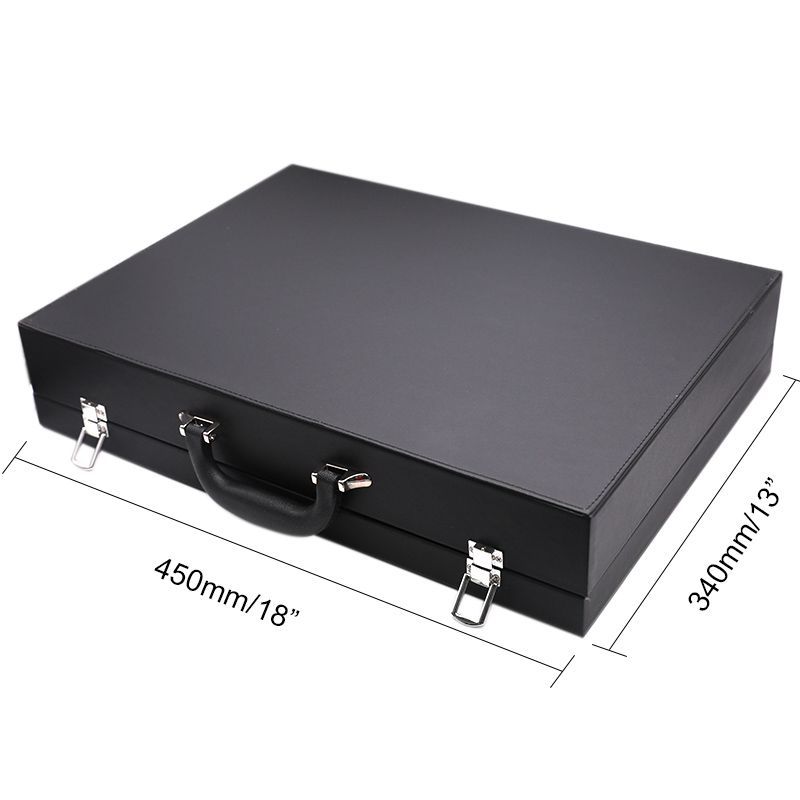

| Case Type | Foam-padded carrying briefcase with secure latches |
| Included Profile Styles | Top bend, side bend, square, domed, and round 360° |
| Supported LED Strip Widths | 4mm, 5mm, 8mm, 10mm, and 12mm |
| Diffusion Finish | Milky white optical diffusion surface |
| Operating Temperature | -40°C to +200°C (-40°F to +392°F) |
| Silicone UV Resistance | Resistant to sunlight UV degradation and outdoor weathering |
| Chemical Resistance | Resistant to saline mist, mild acids, and alkalis |
| Flame Rating | Self-extinguishing silicone compound |
| Primary Purpose | Prototyping, mechanical fit evaluation, and client demonstrations |
| Case Net Weight | Approx. 1.5 kg (3.3 lbs) |
| Datasheet Reference | See Flex-LED-Neon-Light-Tube-Strips-Sample-Box PDF in Downloads |
Application Scenarios
How to Evaluate & Use This LED Neon Tube Sample Box
- Open the sample case and select the silicone neon LED diffusers that match your targeted optical orientation (top emission, side emission, or omnidirectional).
- Measure the inner track of the sample extrusion to confirm that your selected LED strip width (such as 8mm or 10mm) slides through without binding.
- Check manufacturer guidance regarding threading LED strips into neon sleeves to understand clearance, pull-string methods, and bend limitations.
- Test bend the profile along its designated flexible axis to ensure your planned curve radius does not exceed the mechanical limits of the silicone wall.
- Insert a short powered LED strip into the sample channel to evaluate lumen transmission, color uniformity, and dot suppression.
- Note the profile part number from the interior compartment index to specify the exact extrusion, end caps, and mounting clips for your final order.
- Do not force side-emitting neon flex led profiles to bend across their rigid lateral axis, as this can tear internal ribs.
- Keep silicone sample surfaces away from grease, oils, and coarse debris to preserve optical diffusion clarity.
- Verify internal dimensions on the downloadable PDF before cutting architectural mounting tracks or ordering bulk LED strip reels.
What's in the Box

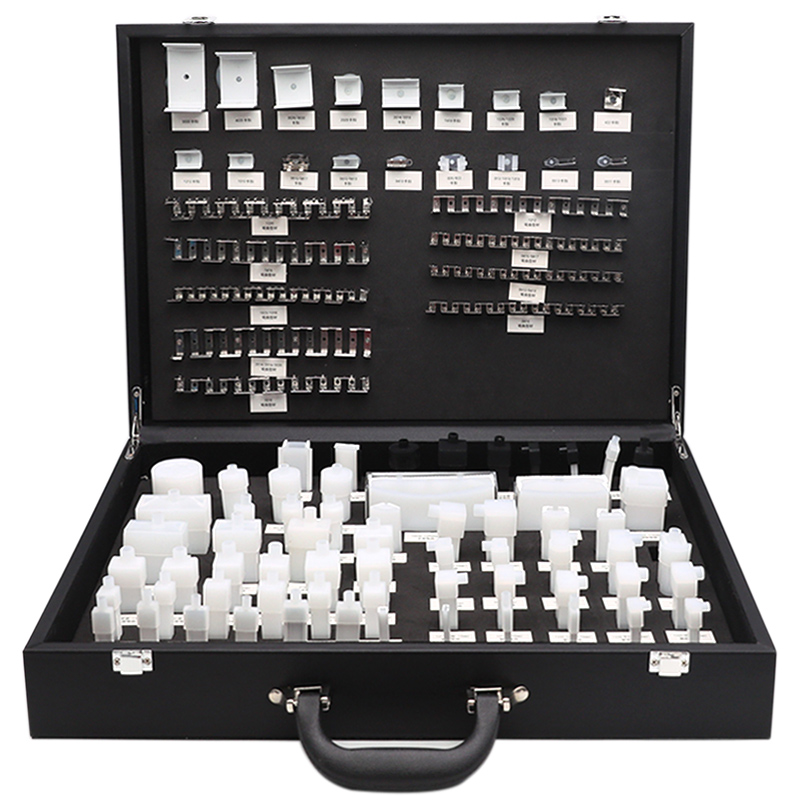

- ✓1 × Heavy-duty padded presentation case

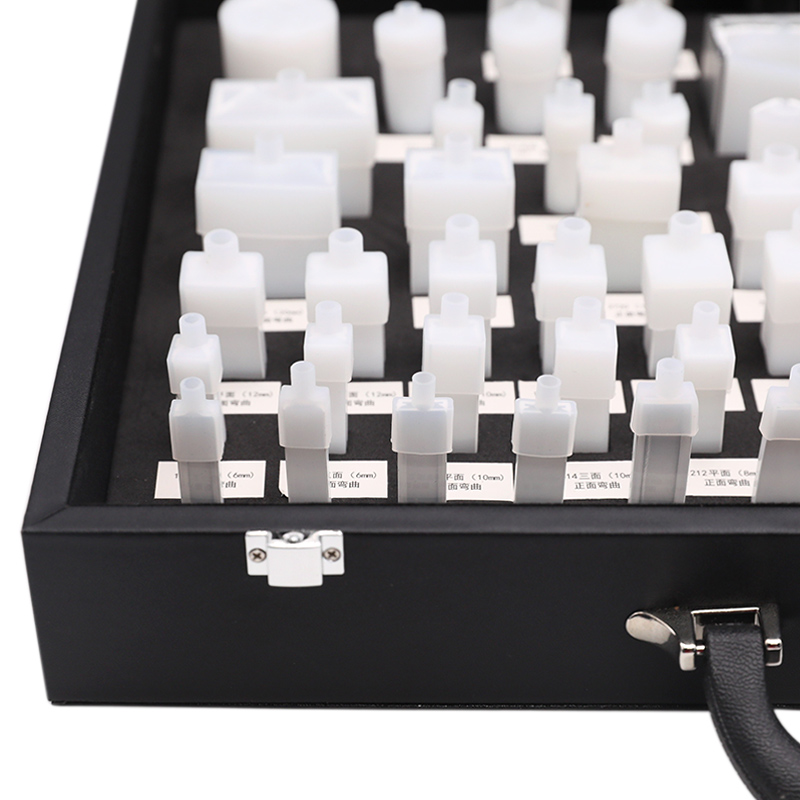

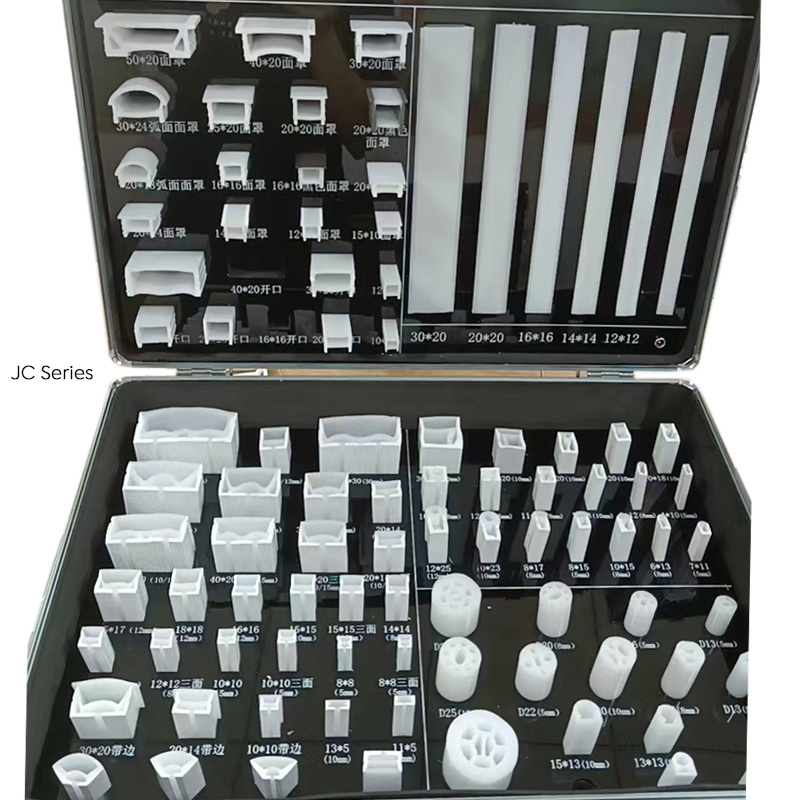

- ✓Assorted JC Series silicone neon tube led profile samples
- ✓Profile specification chart and cross-section dimension index
⇩ Downloads & Documents
Frequently Asked Questions
Q: Why does this order supply the JC Series instead of NC Series?
A:Because the NC Series carries an extended manufacturing lead time, we supply the JC Series sample box to prevent project fulfillment delays. Customers can also check the alternative YT Series.
Q: What strip widths fit into these silicone profiles?
A:The sample box contains silicone profiles engineered for internal PCB widths ranging from 4mm and 5mm up to 10mm and 12mm LED strip lights.
Q: Does this sample box contain live powered LED lights?
A:This box contains unlit physical silicone extrusion profiles designed for structural fitment, dimension checks, and mockups; light testing requires sliding your own LED strip inside.
