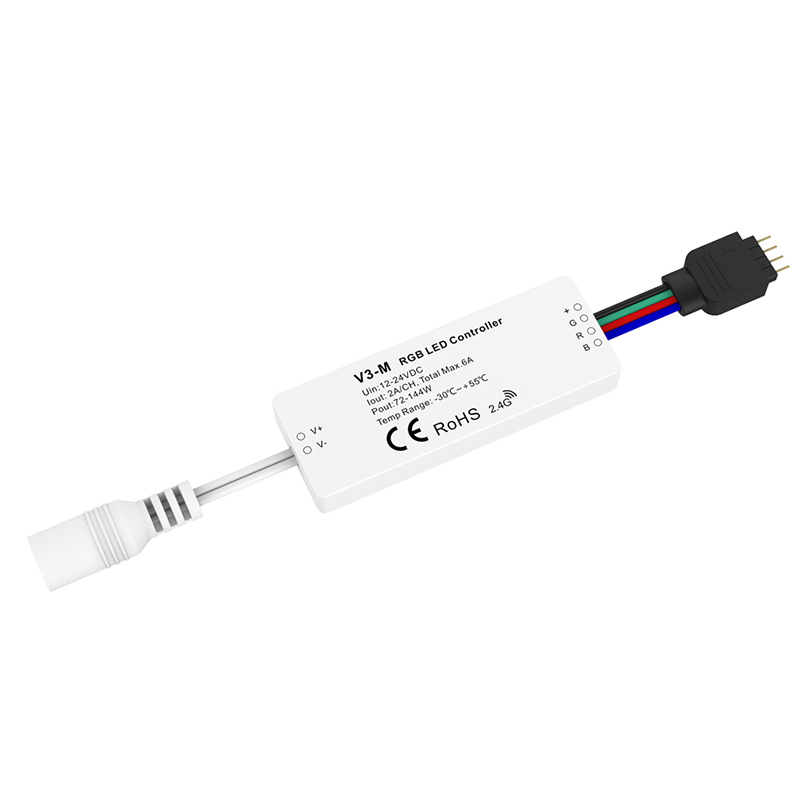

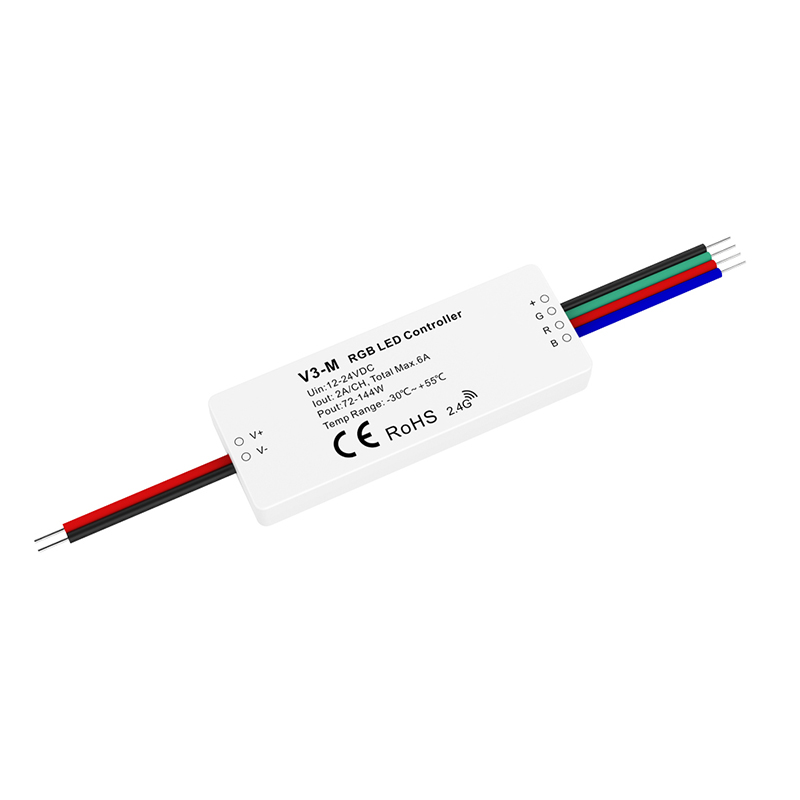

V3-M 3CH*2A DC12-24V RGB LED Mini RF Controller , RGB LED Controller
● 3 channel constant voltage RGB LED mini RF controller.
● 2A per channel, output connect with 5 meters RGB LED strip.
● Match with Skydance’s 2.4G single zone or multiple zone RGB/RGBW remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Built in 10 dynamic mode, include jump or gradual change style.
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
Match Remote Control

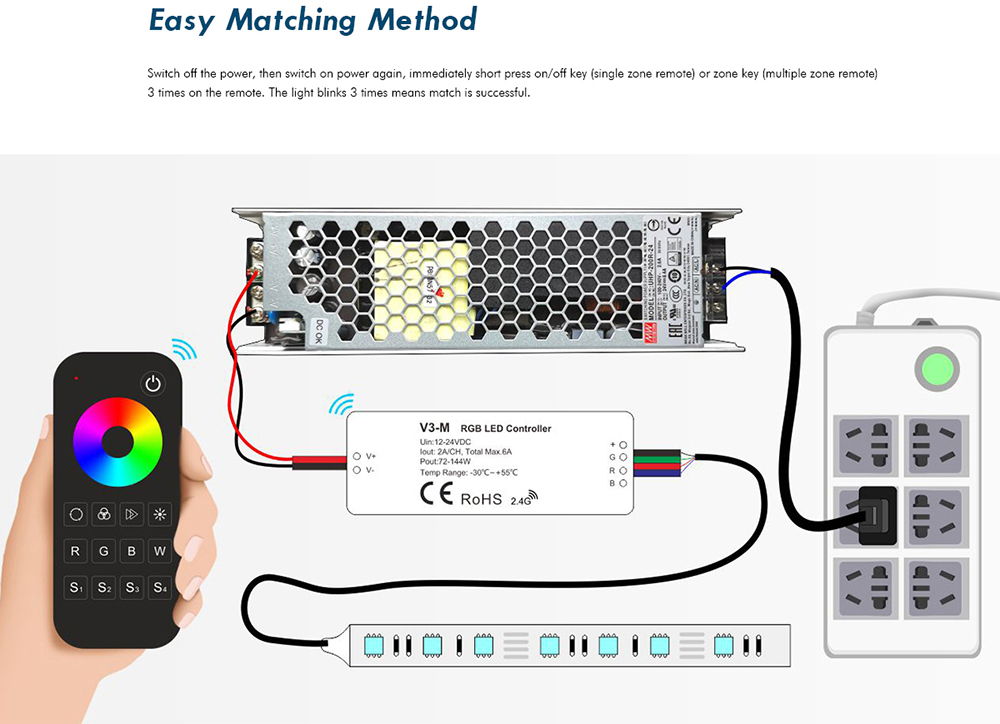

Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
Input and Output
Input Voltage: DC12-24V
Output Voltage: DC12-24V
Output Current: 2A/CH, total Max. 6A
Output type: Constant voltage
Input Signal:RF 2.4Hz
Dimming Level: 4096 levels
Dimming Range: 0 -100%
Dimming Curve: Logarithmic
PWM Frequency: 500Hz (default)
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity/over heat
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Standards and Certifications
1. All the receivers in the same zone.

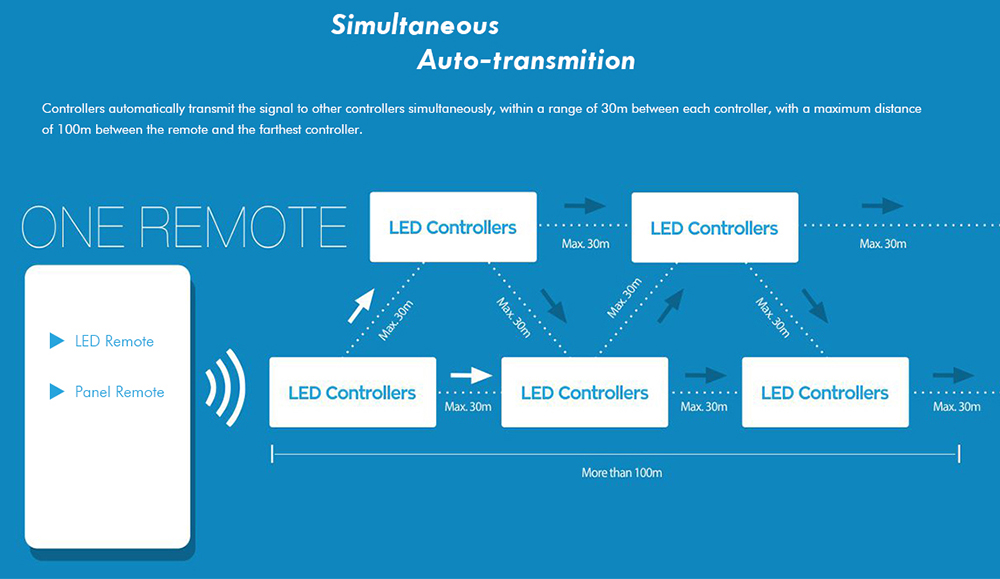

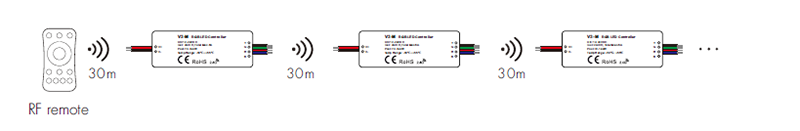

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m,
as long as there is a receiver within 30m, the remote control distance can be limitless.

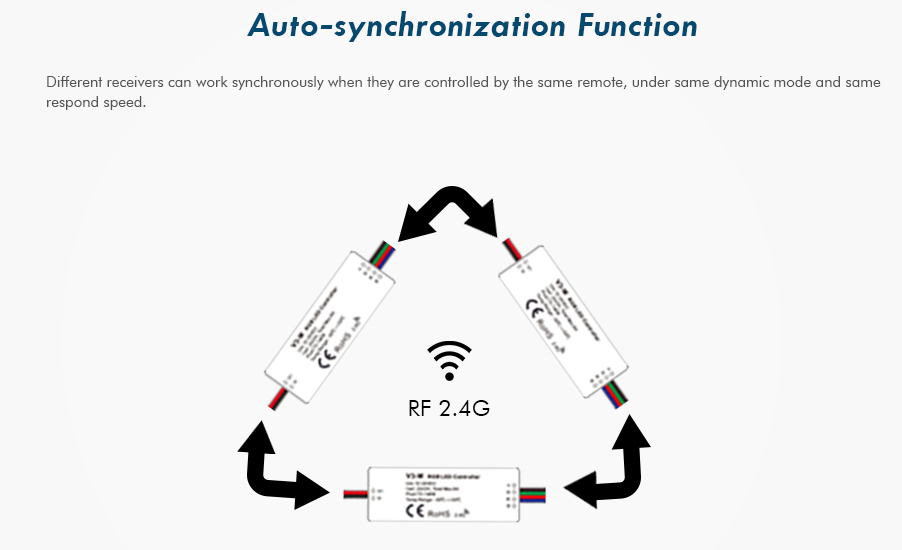

Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote, under same dynamic mode and with same speed.
Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.
Strong signal sources such as WiFi routers and microwave ovens will affect the range.
We recommend for indoor applications that receiver placements should be no further apart than15m.

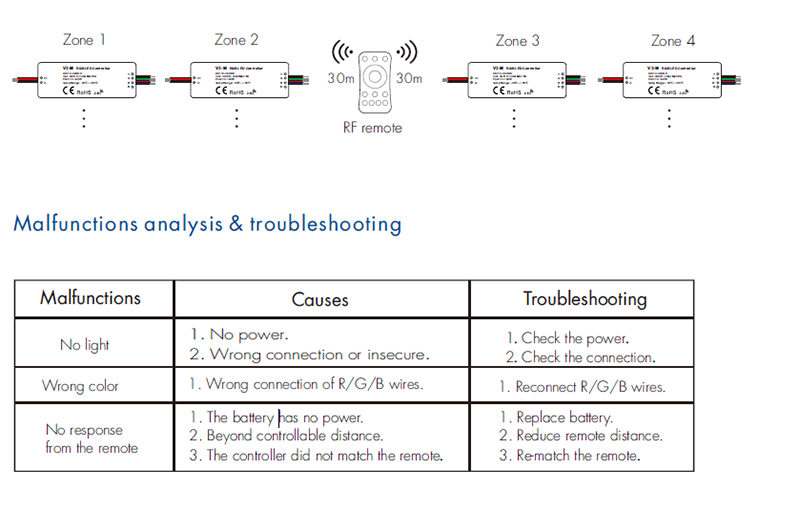

2. Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.
