DC12/24V Max 9A 3A3CH,Touch Panel 2.4GHz wireless RF Double White touch controller warranty 5years For led lighting
Extended new series products are based on the Mini series controllers, increase color temperature 3CH control, workable for dimming, Color temperature, RGB and RGBW. And the output power of receiver is higher.
4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.
This series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.

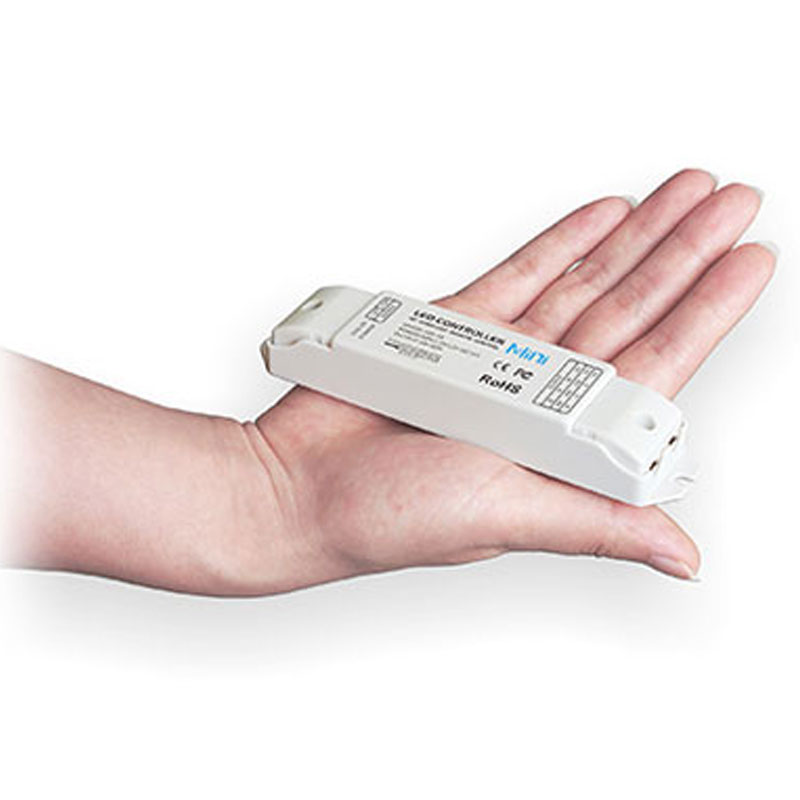

CV Receiving controller
Power input: DC5V-DC24V
Max Current load: 3A ×3CH Max 9A
Max Output power: 100W/240W/480W(5V/12V/24V)

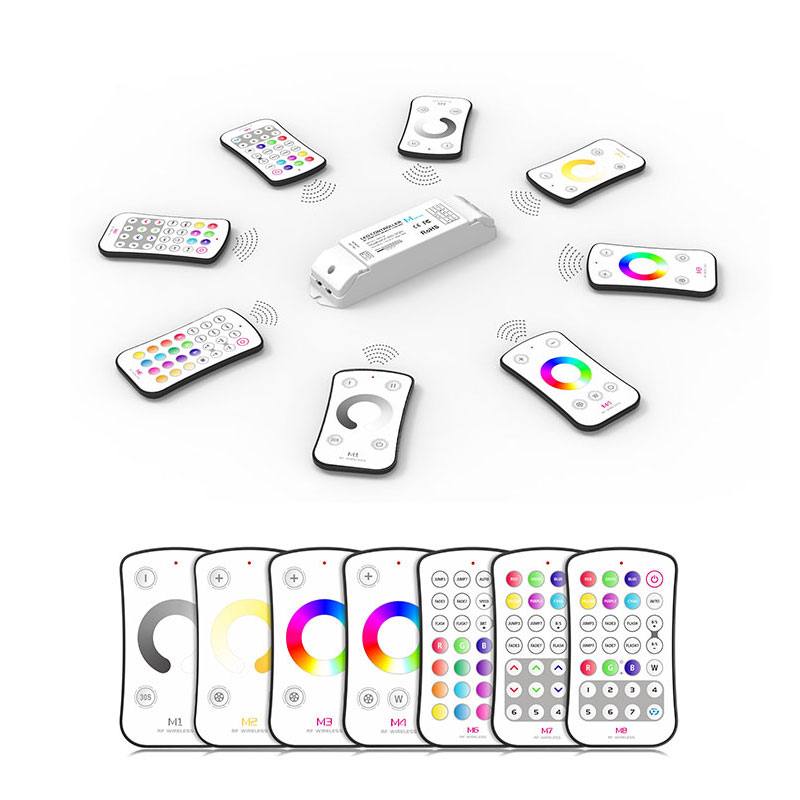

Compatible remote: M1/M2/M3/M4//M5/M6/M7/M8
Working Temp: -30℃~55℃
Weight (N.W.): 125g

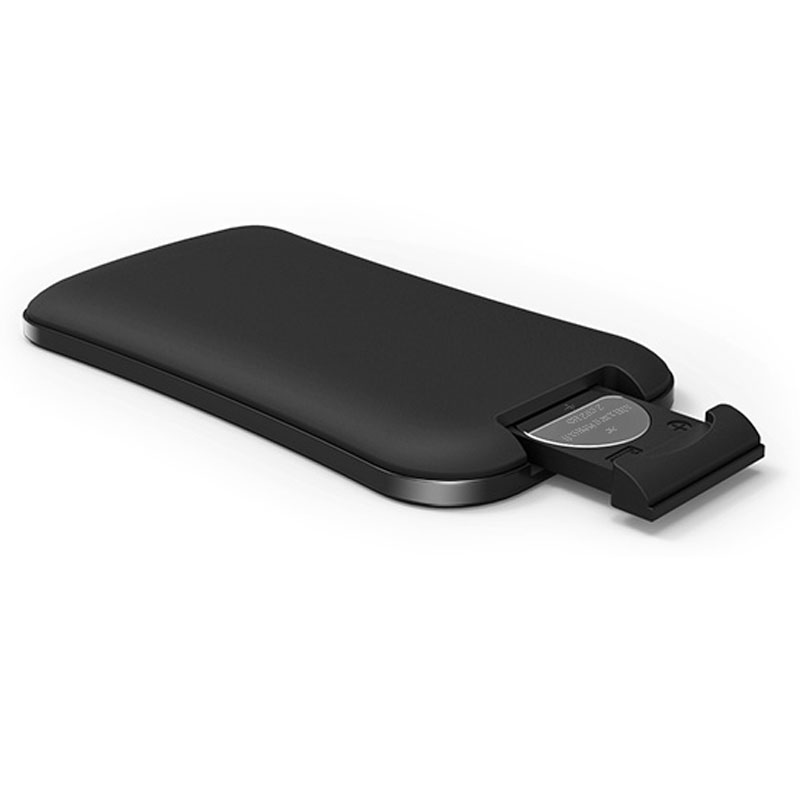

Working voltage: DC3V(Battery CR2032 )
Working Frequency: 433.92 MHz
Remote Distance: 40-50m
Working Temp: -30℃~55℃
Weight (N.W.): 42g
Interior decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.
1 × controller
1 × RF wireless remote control.
1 x Piece of User's Manual
