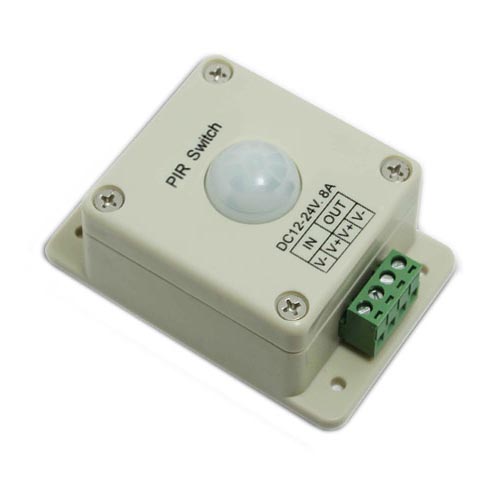

DC12-24V Max 8A, Universal PWM Infrared Sensors Touch Adjustable Brightness Dimmer Controller For 2400x DC24V LED Strips
100% Brand new , never used Item's color might be different from the picture because of the aberration. The human body is an infrared detection sensor switch controller, the function of infrared detection is to control the load of the switch. Users can install the human body sensors in the appropriate environment according to actual needs.
How to Use: Firstly connect the load wire, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. When detected someone comes, the light turn on,after people left 10 seconds later, the light turn off automaticlly. And the right control signal output line and input line should connected correctly.
Static power consumption: <1W
Output current: <8A
Output power: 5V<40W, 6V<48W , 12V<96W , 24V<192W
Working temperature: -20~60 ℃
Supply voltage: DC 5V,6V,12V,24V (optional)
Output: 1 channel
Sensing distance: 5 ~ 8 m
Size: 8.8 x 6 x 3.5cm(L* W* H)
1 x PIR Motion Sensor Switch Light
