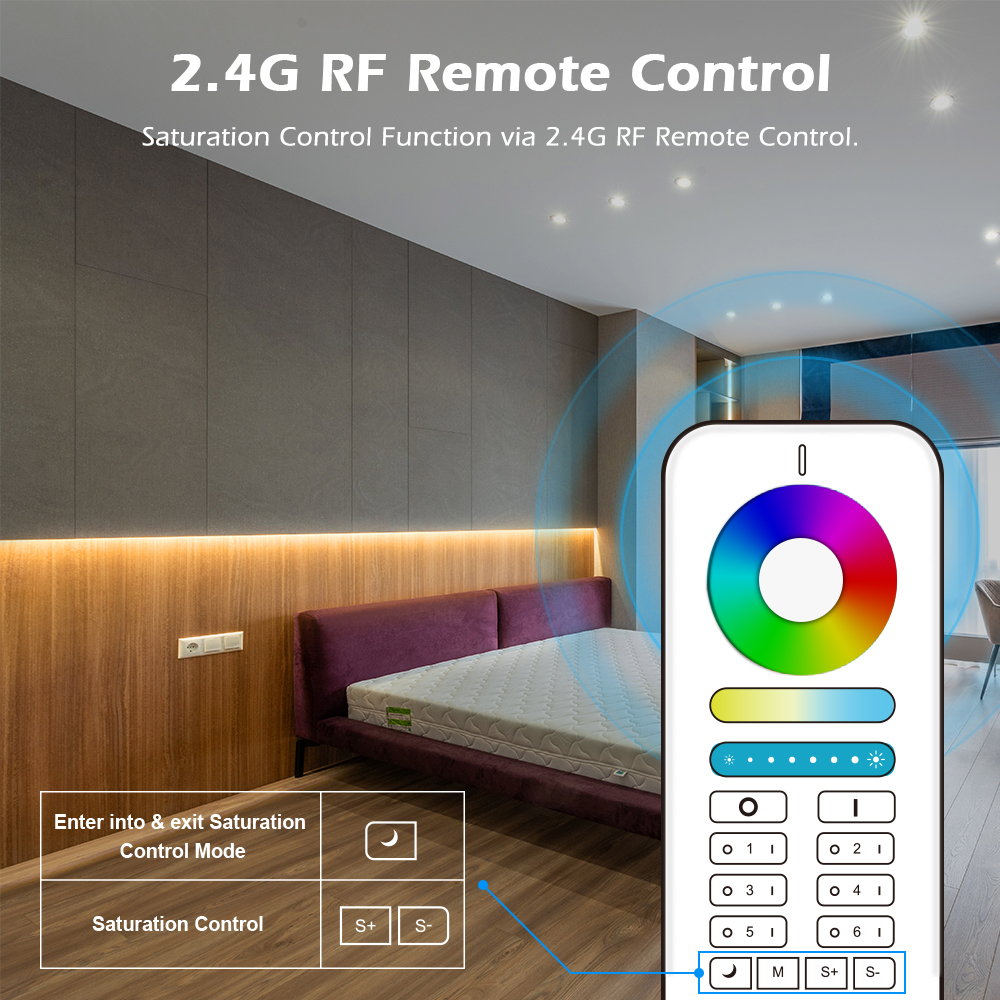

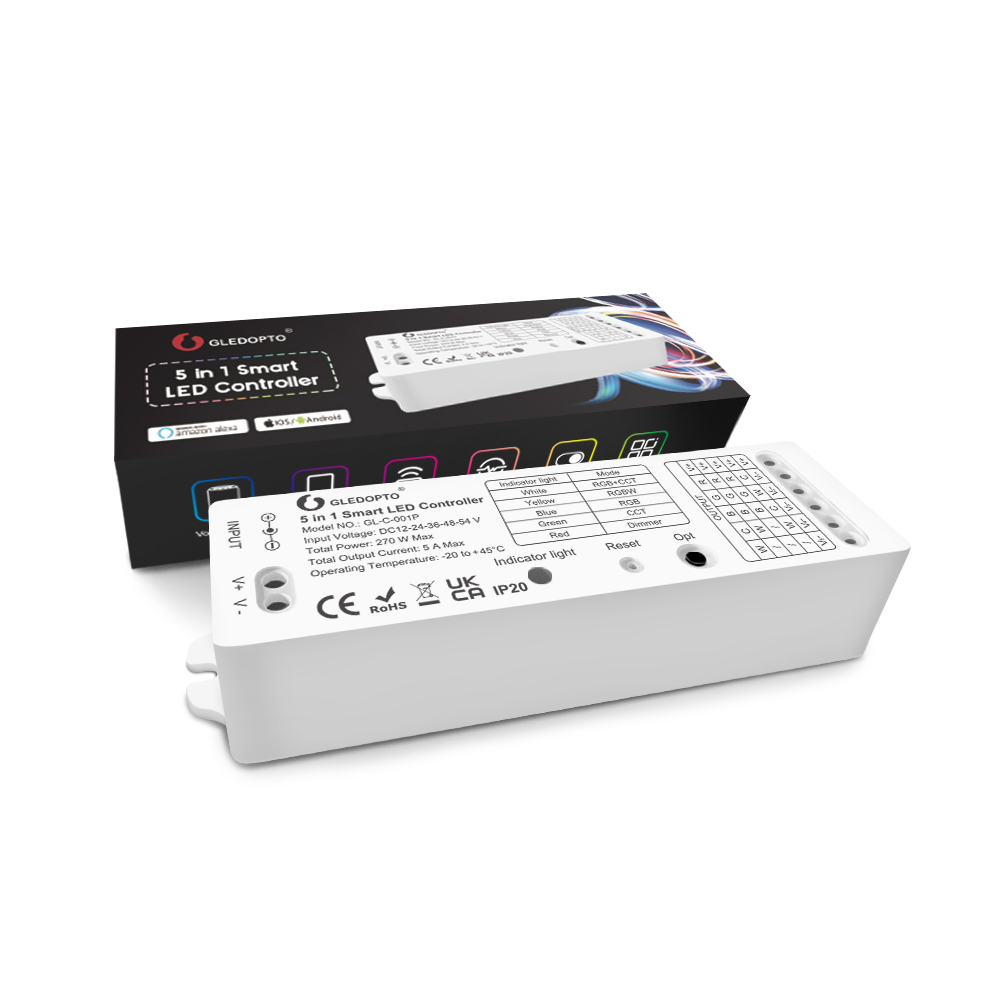

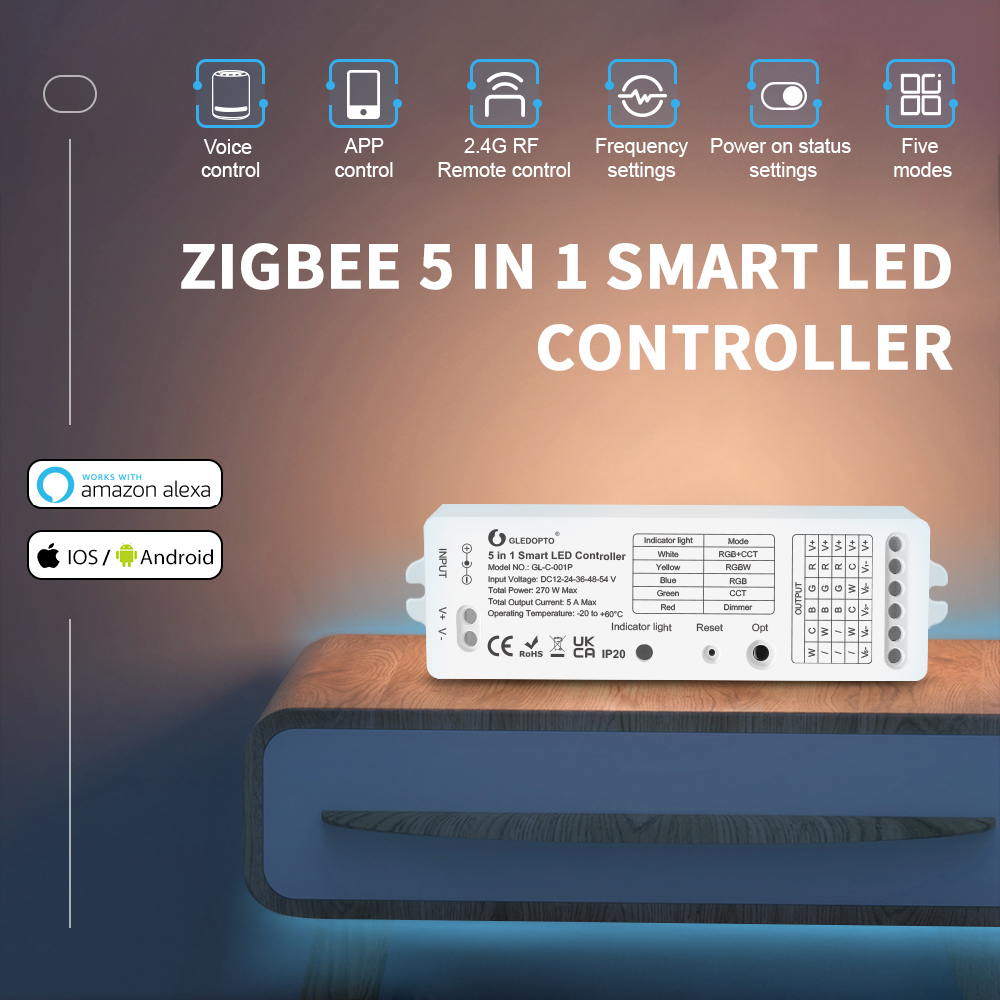

Zigbee 5In1 LED Light Controller Voice/APP/RF Remote Control
This Zigbee 5 in 1 Smart LED controller supports Amazon Alexa voice control, mobile phone APP control, and RF remote control, and is suitable for various led light strips, single color, CCT, RGB, RGBW, and RGB+CCT. The LED brightness, led light color and white light color temperature of the light strip can be adjusted according to your preferences.
|Product Features||Multiple control methods|

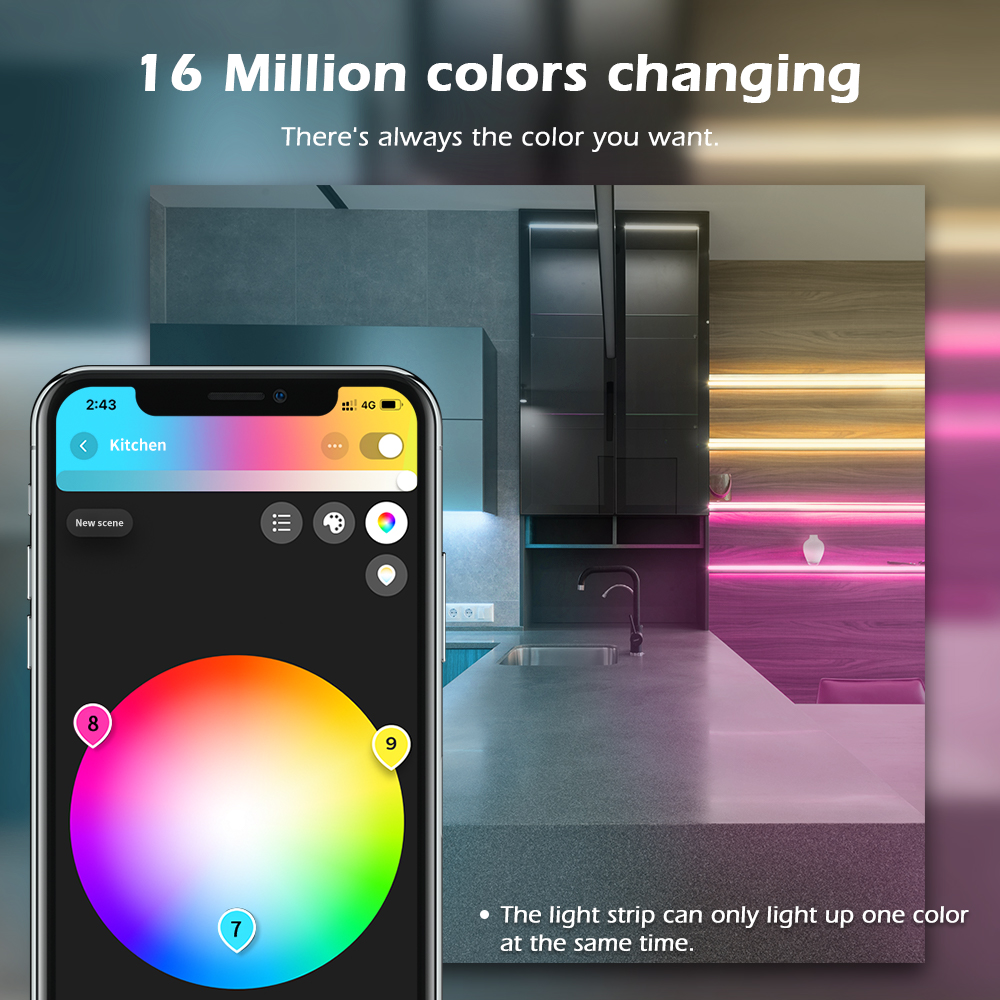

• 16 million colors changing, the light strip can only light up one color at the same time.
• Scene display, suitable for various indoor lighting applications.
• Brightness adjustment(1%-100%), choose the right brightness according to your needs.
• Color temperature regulation, from 2000K to 6500K, when adjusting the color temperature, the LED lights will automatically turn off to obtain a more accurate color temperature.

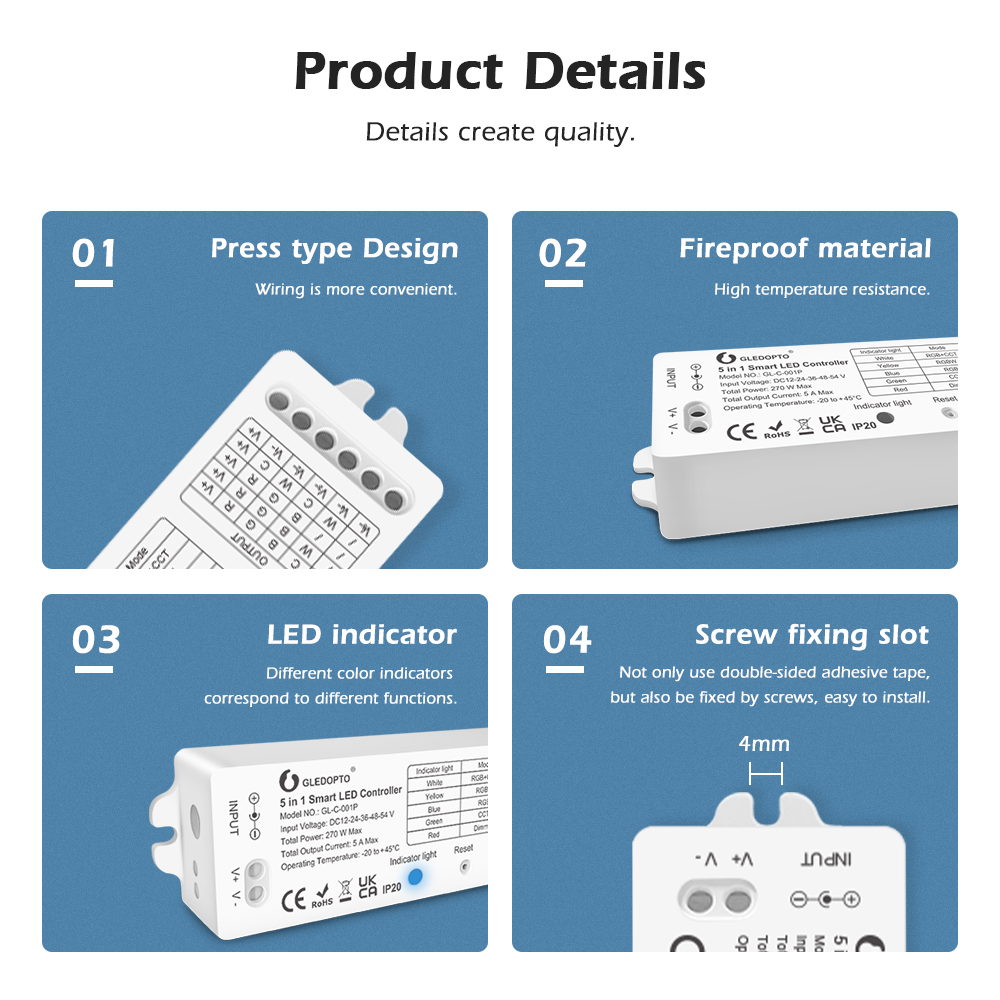

• Fireproof material, high temperature resistance.

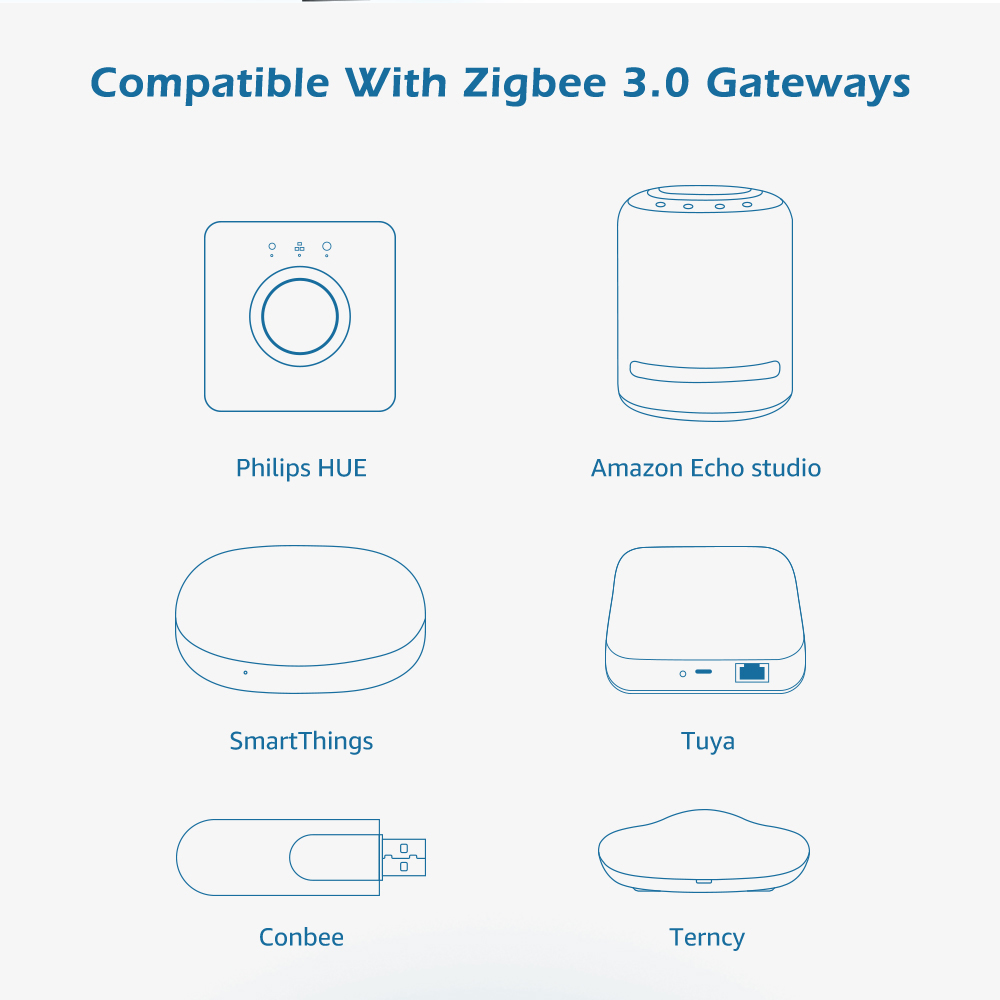

• Compatible with Zigbee 3.0 Gateways(Philips HUE, Amazon Echo studio, SmartThings, Tuya, Conbee, Terncy)
1. Voice control (works with Amazon Alexa), you can adjust on/off and brightness through vioce command, which can free your hands.

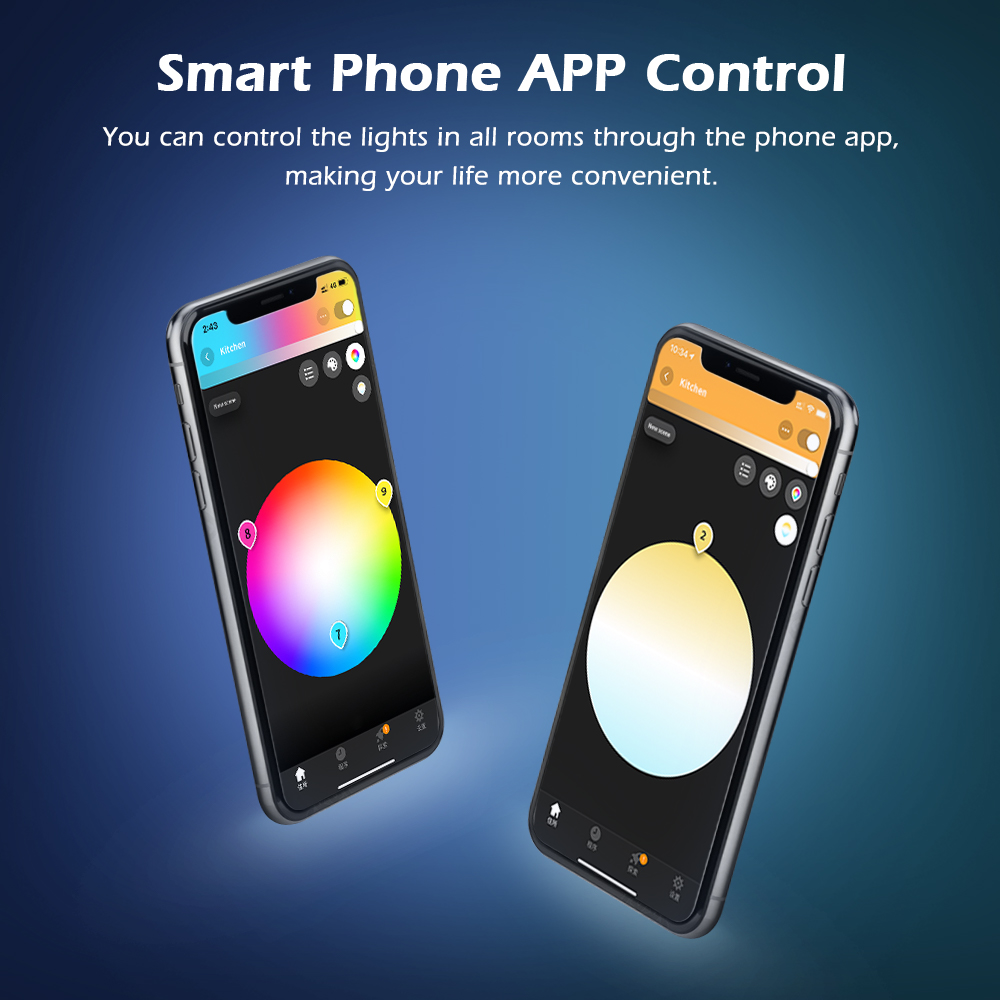

2. App control / Mobile control (IOS/Android), making your life more convenient.

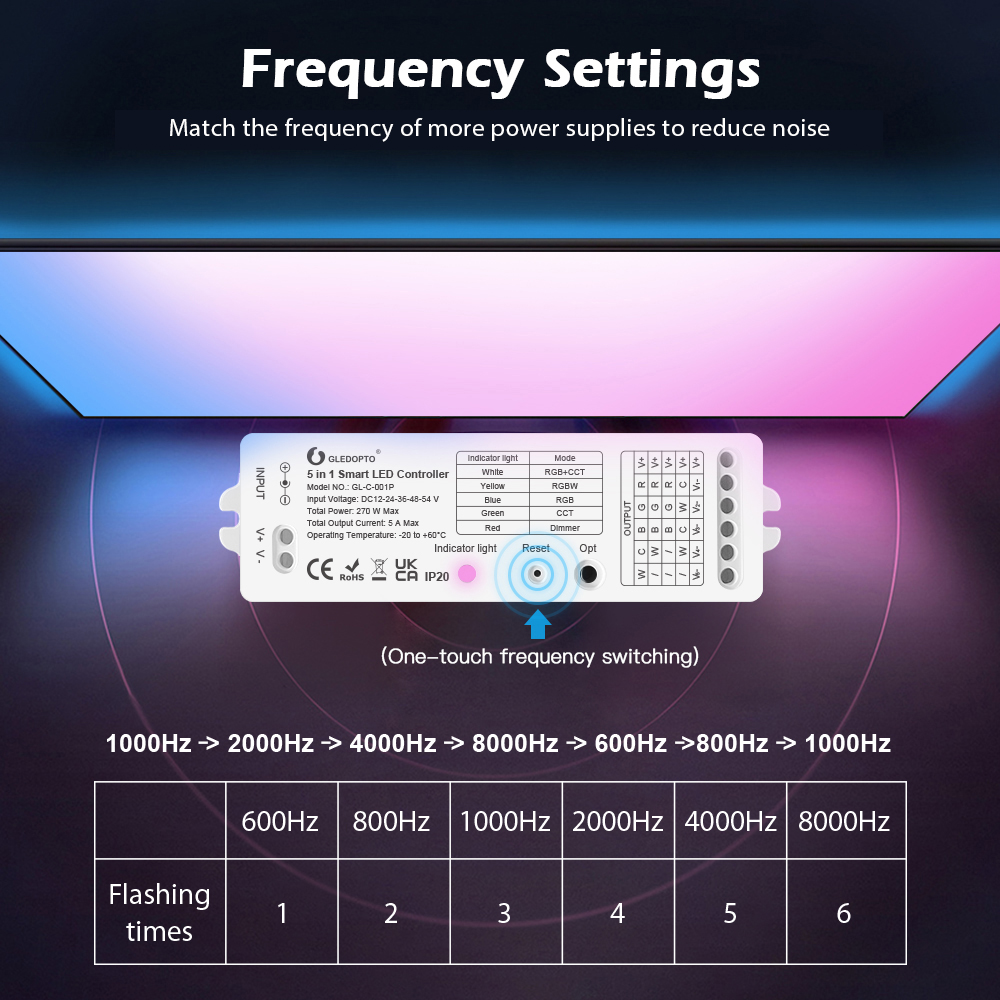

4. Frequency settings, match more power supplies to reduce noise.

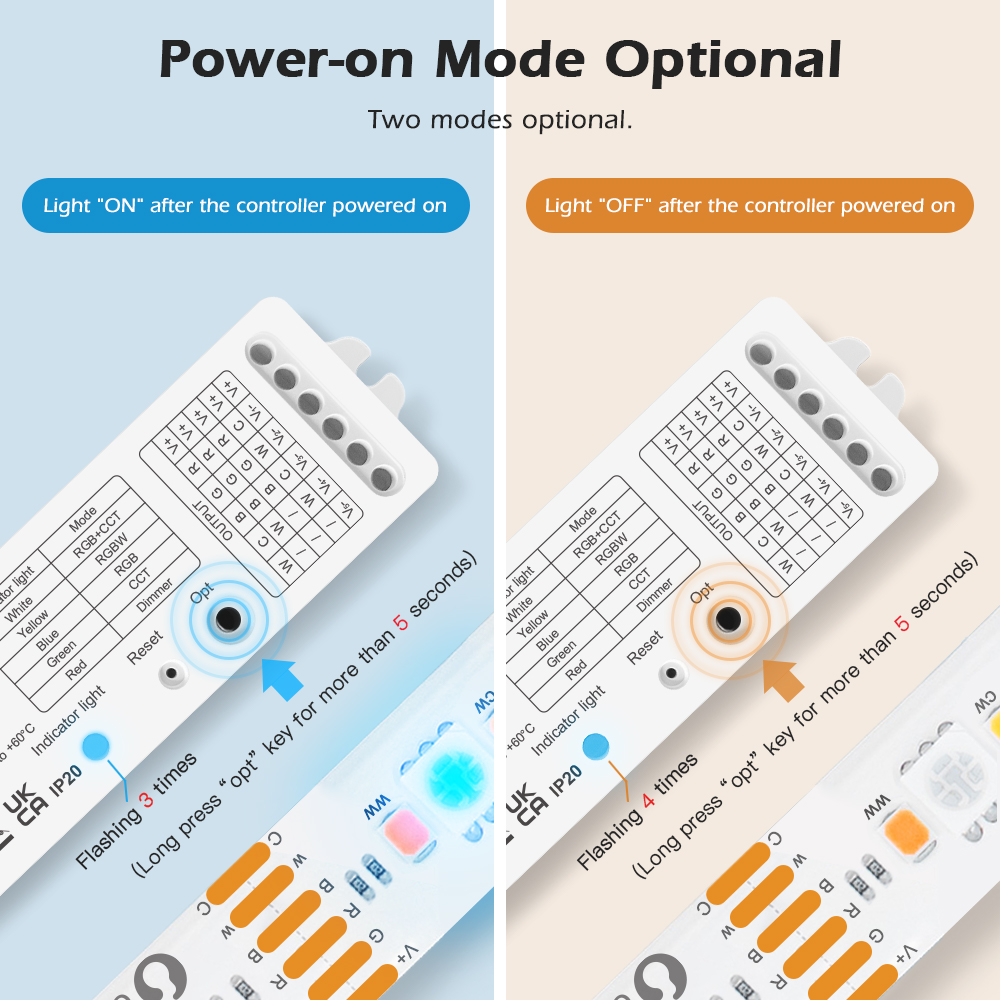

5. Power on status settings, remember the state of the on/off before power failure, lights up by default when powered on.

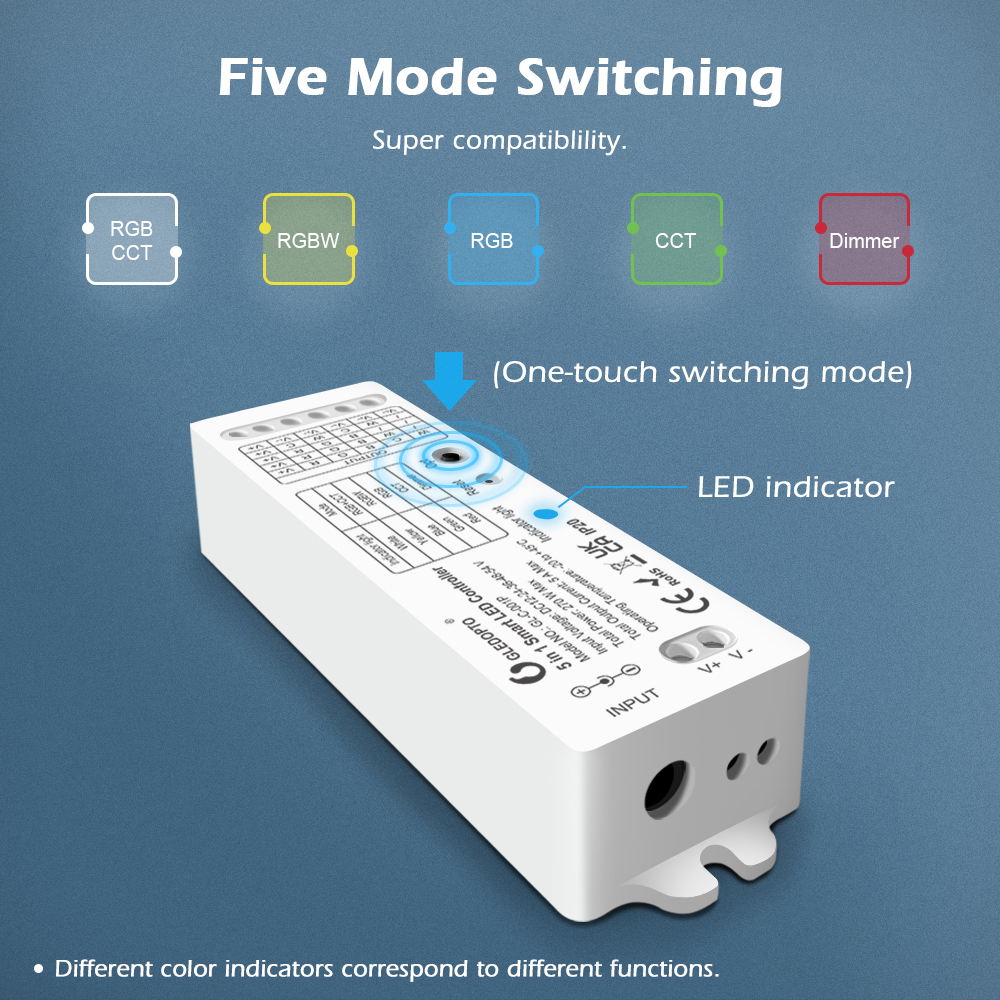

6. Five mode switching (super compatiblility, suitable for more LED light strips: single color LED, CCT, RGB, RGBW, RGBCCT).

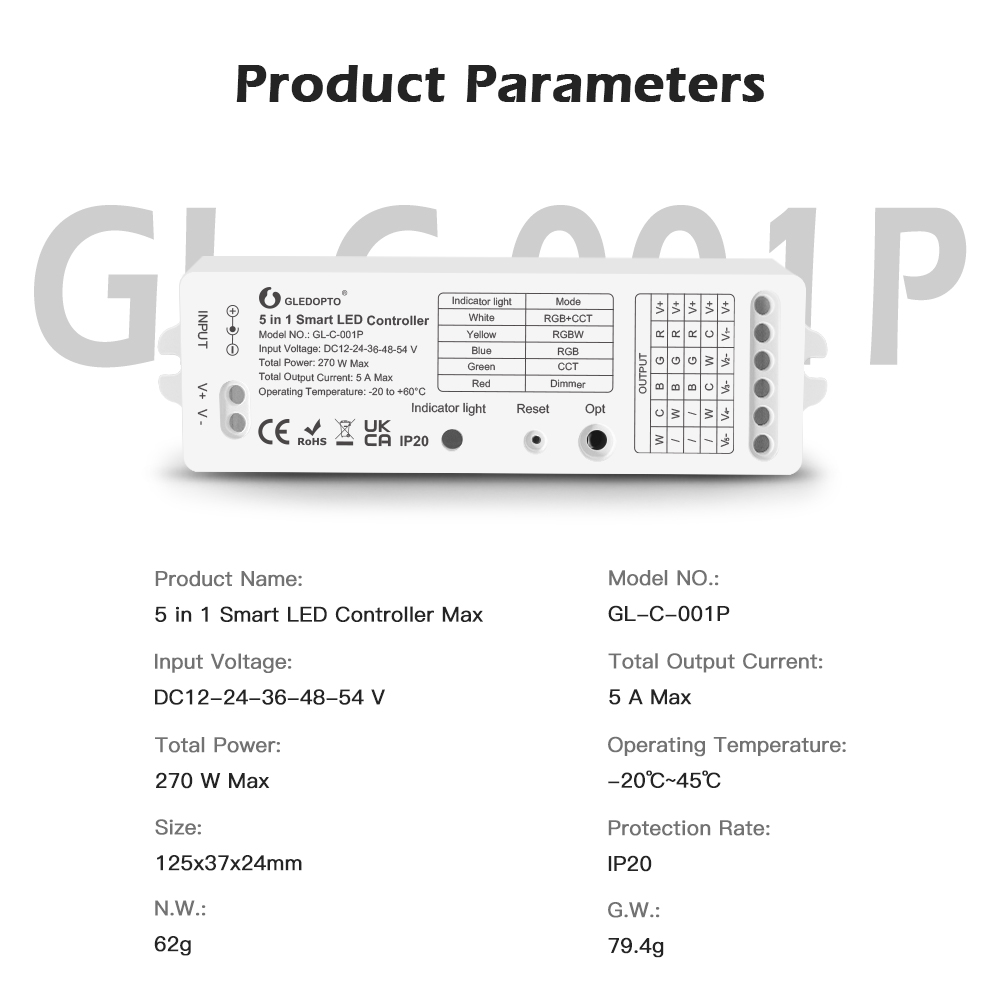

Standards and Certifications

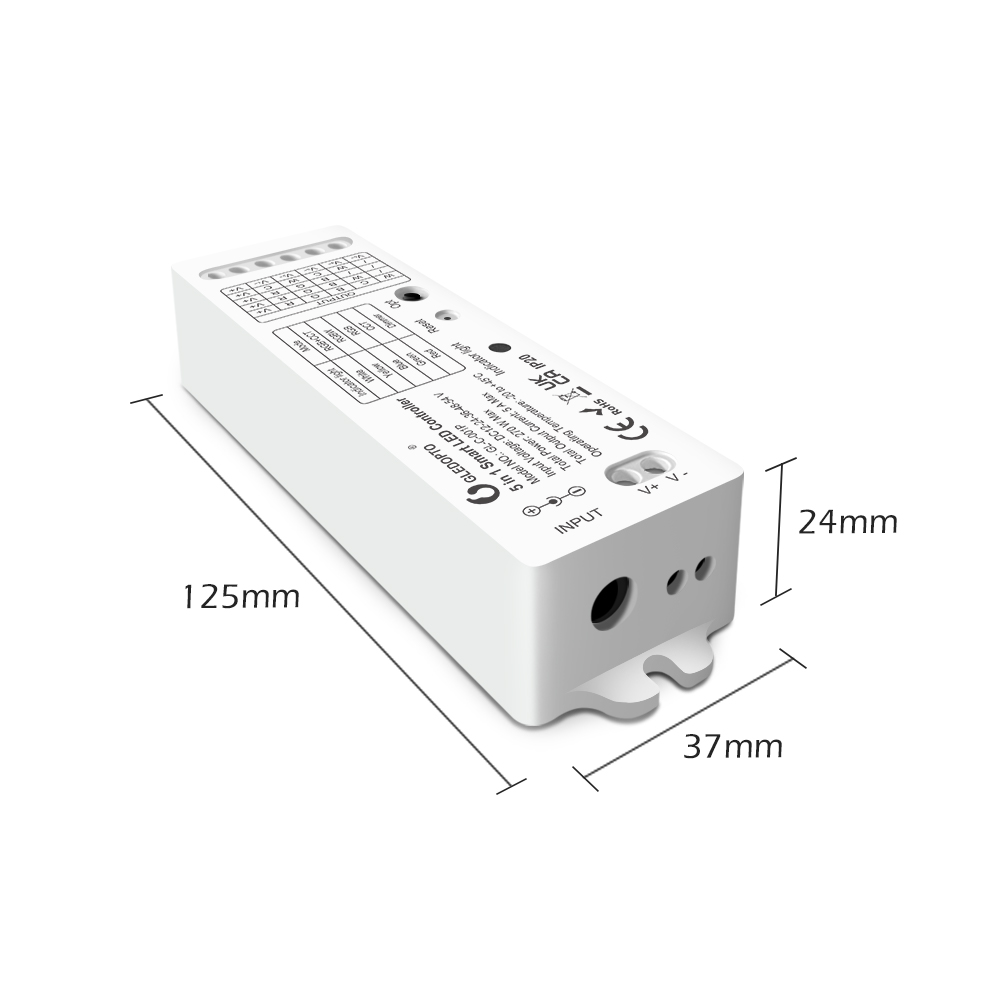

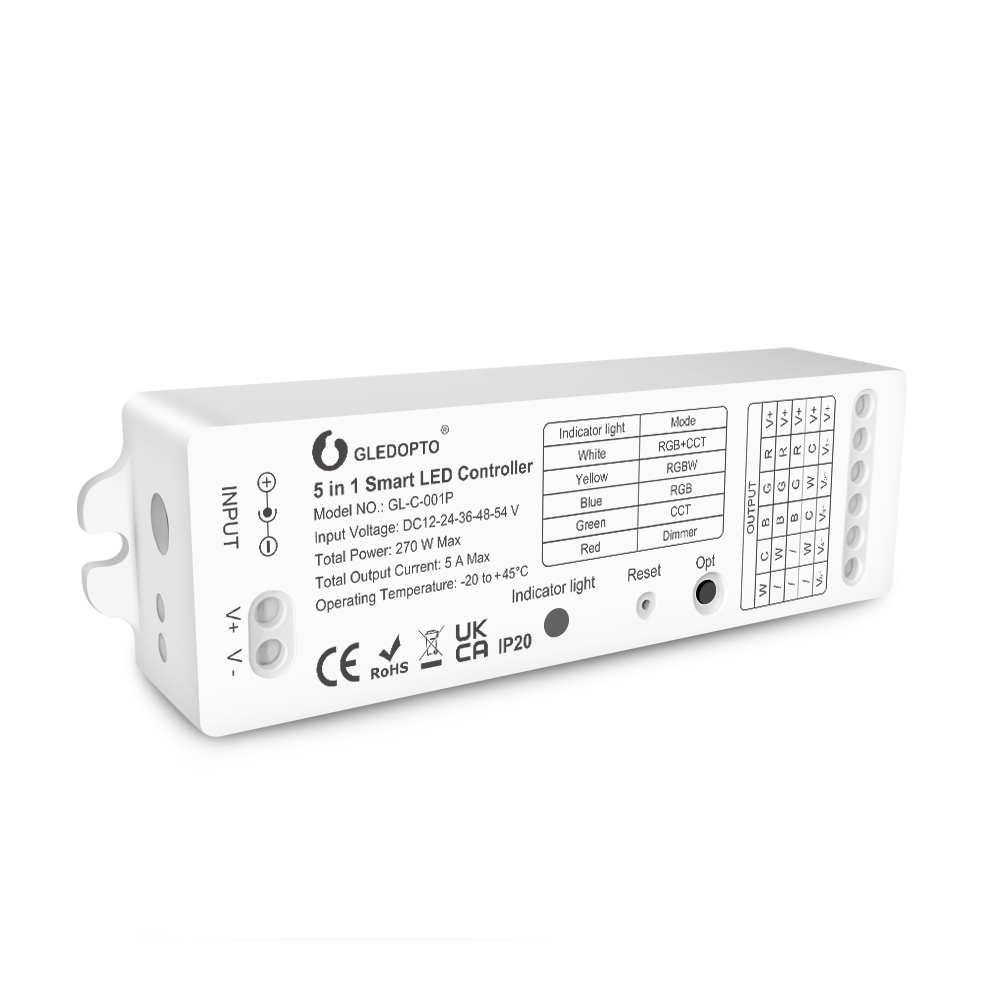

|Model||GL-C-001P (Zigbee 5 in 1 Smart LED Light Controller)|
|Total Output Current||5A Max|
|Suitable LED Strip Lights||Single Color LED, CCT, RGB, RGBW, RGB+CCT|
Related: How to choose the right LED strip and power supply?
1. First, this LED controller supports single color LED strips, CCT light strips, RGB color changing LED strip lights, RGBW LED tape lights, RGBCCT LED rope lights, not available for addressable LED strips.
2. Second, the input voltage of this LED controller is DC12-52V, so it supports 12V LED light strips, 24V LED rope lights, 36V led strip lighting, or 48V led strip lights(known as constant current LED strip lights). However, if your LED strip is 12V, your power supply must be 12V too.
|12V LED light strips||12V power supply||DC12V Lithium Battery|
|DC12V Plastic Shell Power Adapter|
|DC12V MW UL-Listed Power Supply|
|DC12V Waterproof Power Supply|
|24V LED rope lights||24V power supply||DC24V Plastic Shell Power Adapter|
|DC24V MW UL-Listed Power Supply|
|DC24V Waterproof Power Supply|
3. Third, the power of the light strip cannot exceed the power of the LED controller. Calculate the power you need for your led light strip: How to calculate the power for your LED strip?
LED Controller Power ≥ 1.2*LED Strip Power
LED Power Supply ≥ 1.2*LED Strip Power
