DC12V 8PCS RF Button Control White LED Under Cabinet Puck Lighting Kit - 3000K/6000K Optional - 2.5W/PCS
DC12V 8PCS RF Button... $29.99
DC12/24V Max 6Ax2CH,... $22.99
DC12/24V Max 6A,... $7.99
RF Remote Control LED... $7.99
DC12/24V Max 2A 24-24W,... $6.99
DC12V 8PCS RF Button...
DC12/24V Max 6Ax2CH,...
DC12/24V Max 6A,...
RF Remote Control LED...
DC12/24V Max 2A 24-24W,...

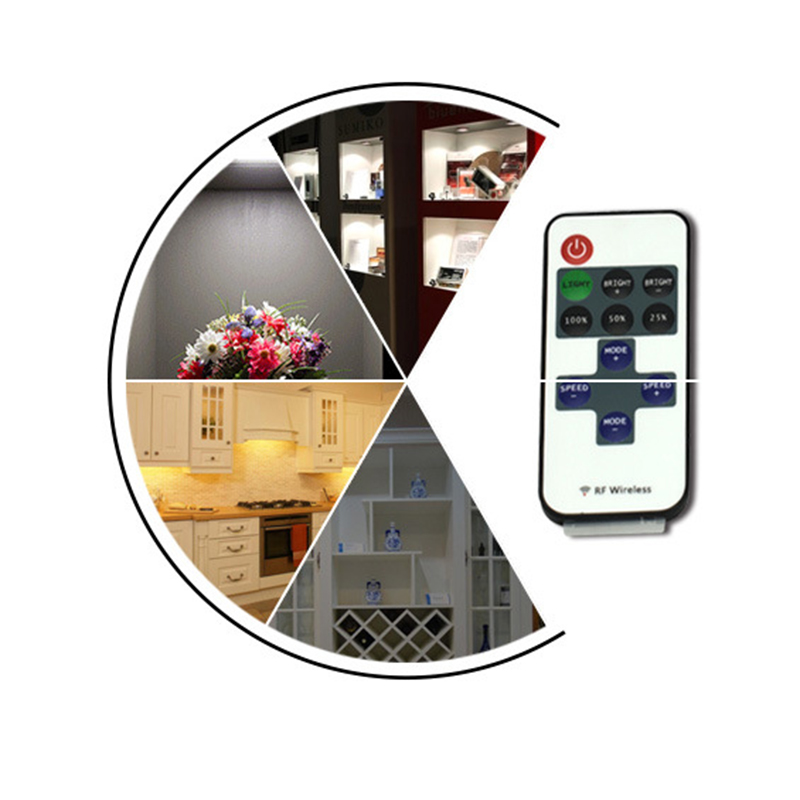

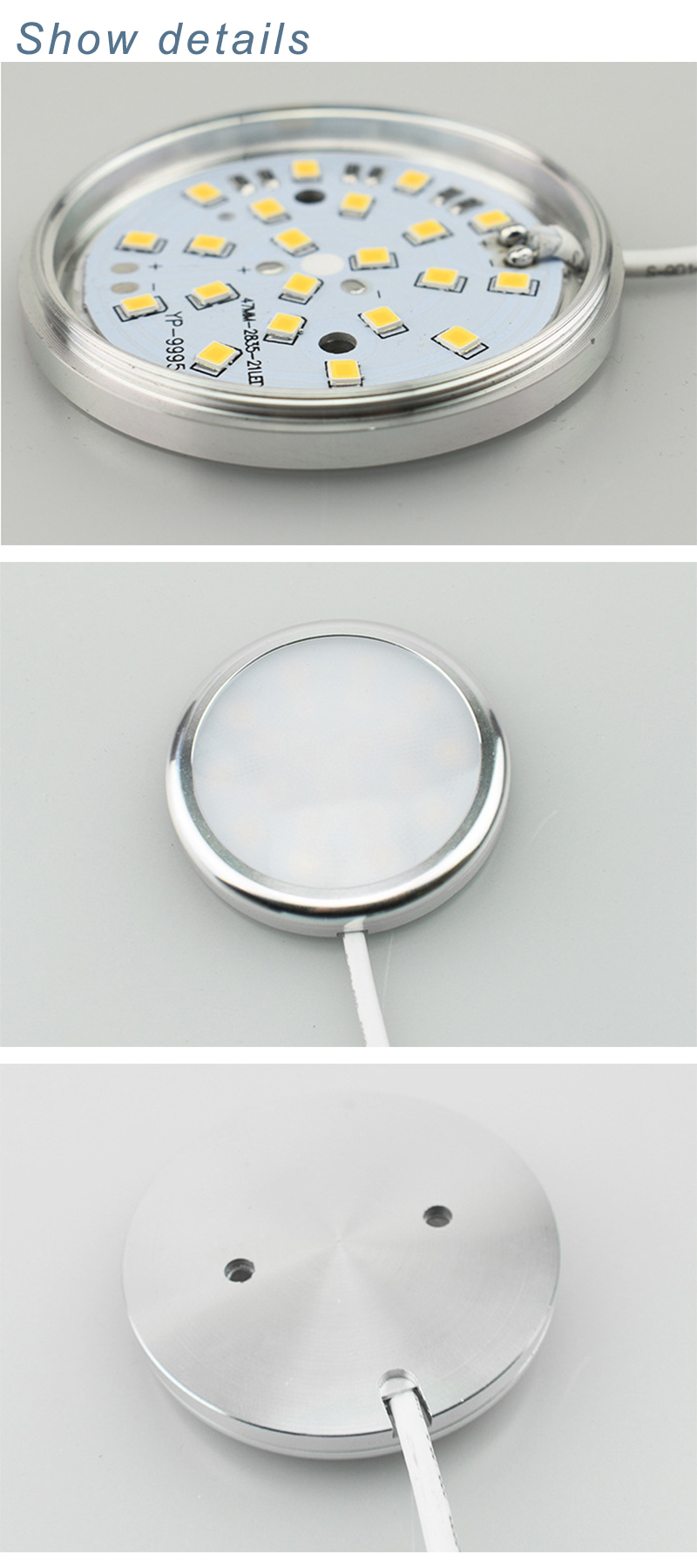

This LED puck light kit use the high bright 2835 LED chip, energy-saving and environmental protection, long life, good light transmission, strong anti-ageing ability, and good stability. External is made of aviation 6063 aluminium material, with a better thermal conductivity, the whole LED light like the heat dissipation device, mostly increasing the sustain lifespan. The aluminium alloy shell will not rust, has strong corrosion resistance, durable, strong, and good heat dissipation. The CRI of this LED puck light up to 85+, with the most original lighting effect, and the lighting color can be controlled by the RF remote controller and single color LED dimmer controller.

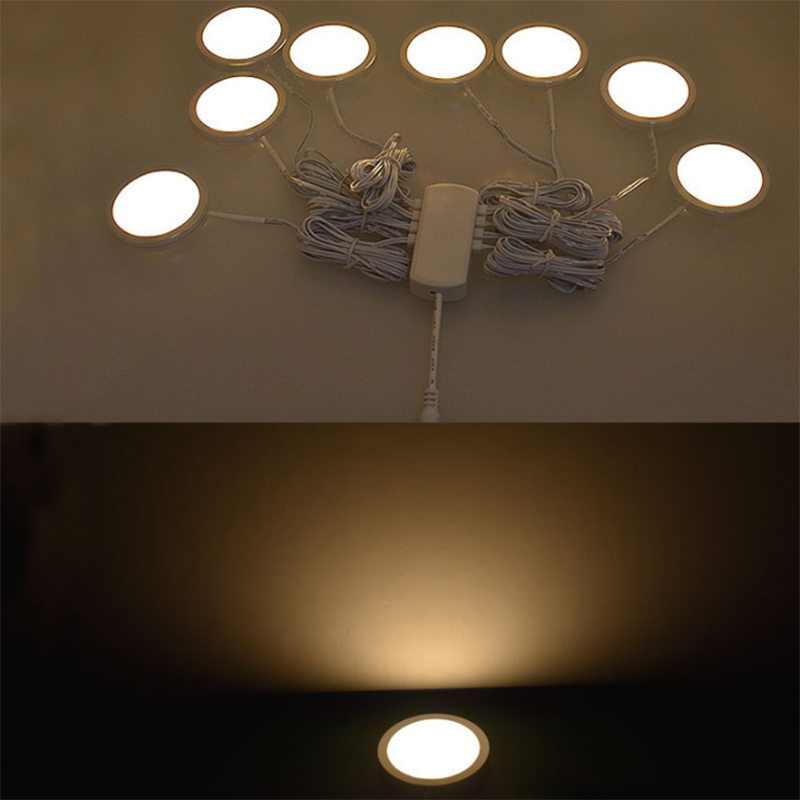

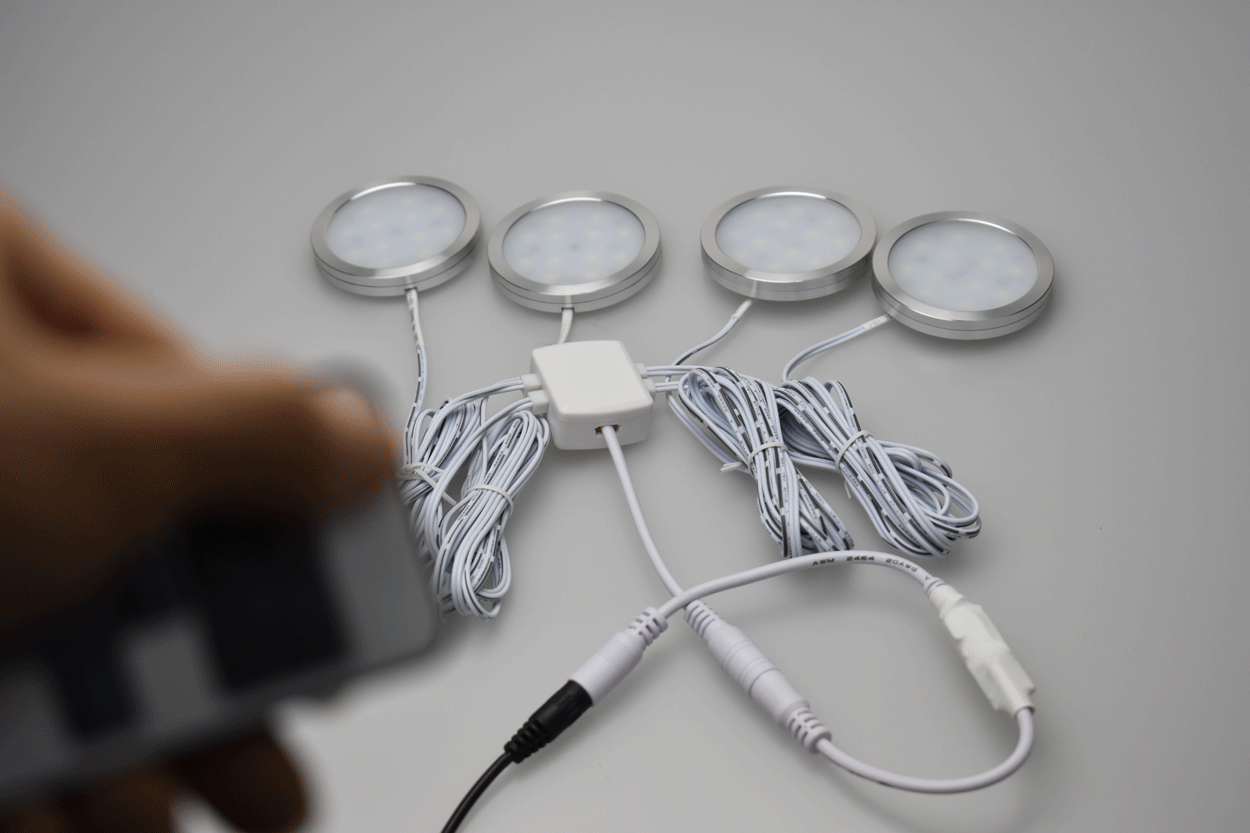

The whole LED puck light kit, support DC12V input, work with our DC12V LED driver or LED power adapter to power the LED lighting, output power is 2.5W per PCS, total 8pcs. Warm White 3000K or Daylight White 6000K optional, suitable for under cabinet lighting, kitchen lighting, counter lighting, and cupboards, closets, shelves, upholstered boards, headboards some other environment. Work with the 8 channels distributor, you can control the 8pcs LED puck lighting kit in parallel at the same time. 3M tape pasted at the back, easy to install, you can also fix it by the screws.
Color: Warm white 3000K /Daylight white 6000K
Operation Voltage: DC12V
Power: 2.5W per pcs
Lumen Output: 300Lumen/Lamp
Beam Angle: 120°
Work Temperature: -25℃-45 ℃
Material: Aluminum profile
Total Quantity: 8PCS
LED Type: 2835SMD
1* DC12V LED power adapter with button LED controller
1* 8channels distributor
1* RF mini LED controller
8* Single color LED puck light
LED accessories: screw and 3M tape
