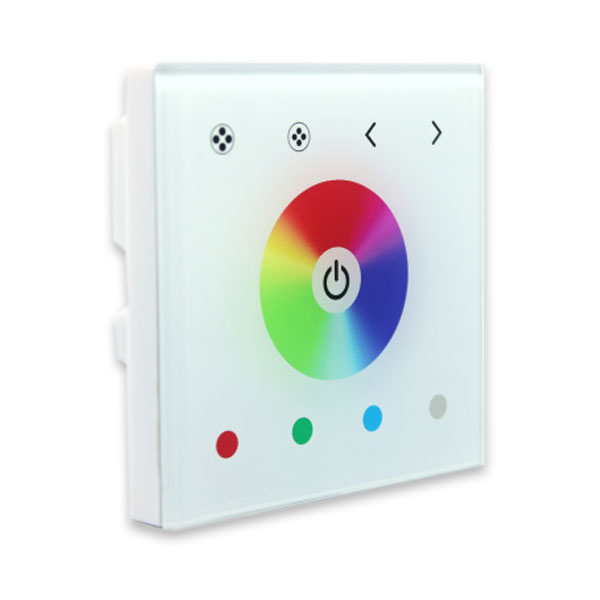

TM02 DC12-24V 3 Channel Touch Panel Full Colour Controller LED Tempered Glass Panel Dimmer Switch
Touch panel controller is a kind of new high-end controller which newly developed by our company. It adopts glass panel design with beautiful and fashionable appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, and reduces trigger which caused by mistake. It is used to control a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light etc.. It has many advantages such as convenient to connect, easy to use and so on.

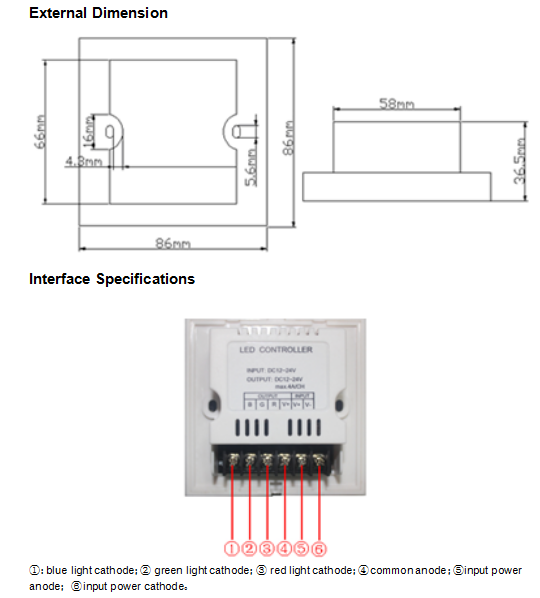

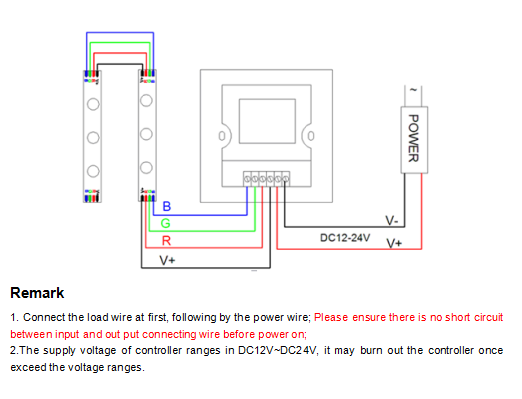

Connect Mode：common anode
Net Weight： 137g
Gross Weight： 187g
Static Power Consumption：<1W
Output Current：<4A(each channel)
Output Power：12V:<144W, 24V:<288W
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
