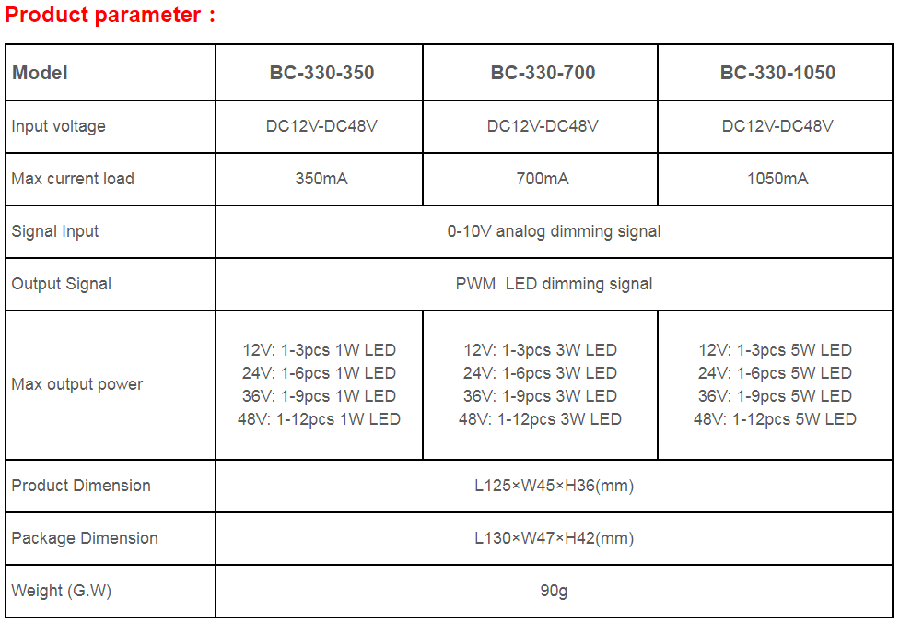

DC12V~48V 0-10V Dimming Driver BC-330-700
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 0-10V dimming controller which has solved the compatible problem of fluorescent dimming controller and LED illumination; this controller can dim both fluorescent and LED lamps at the same time.
1. 0 - 10V to PWM dimming signal conversion.
2. Optical isolation protection for input & output.
3. Compatible with many brand dimming systems.
4. Working voltage from DC12V~48V
5. Single output channel, Constant current 700mA.
6. Multi units can be worked together or use our power repeaters to control more lamps.
7. Power loss memory function.
