DC24V 18W 35X22mm White/Yellow Light Waterproof IP67 Aluminum Lens LED Outdoor Wall Wash Lighting
1. Highlight 5050 wafer LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay.

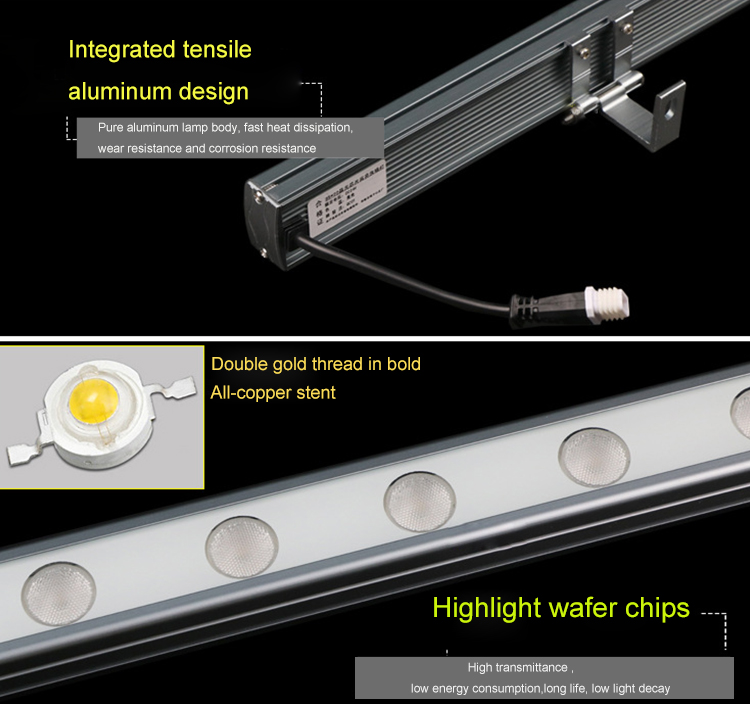

2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line.
3. Roughing international all-copper wire: three-core all-copper wire, low power consumption, high efficiency, long service life.
4. Luminous effect of the Linear LED Lighting is single color, single color has Warm White/Daylight White/Yellow, it usually uses for lighting.

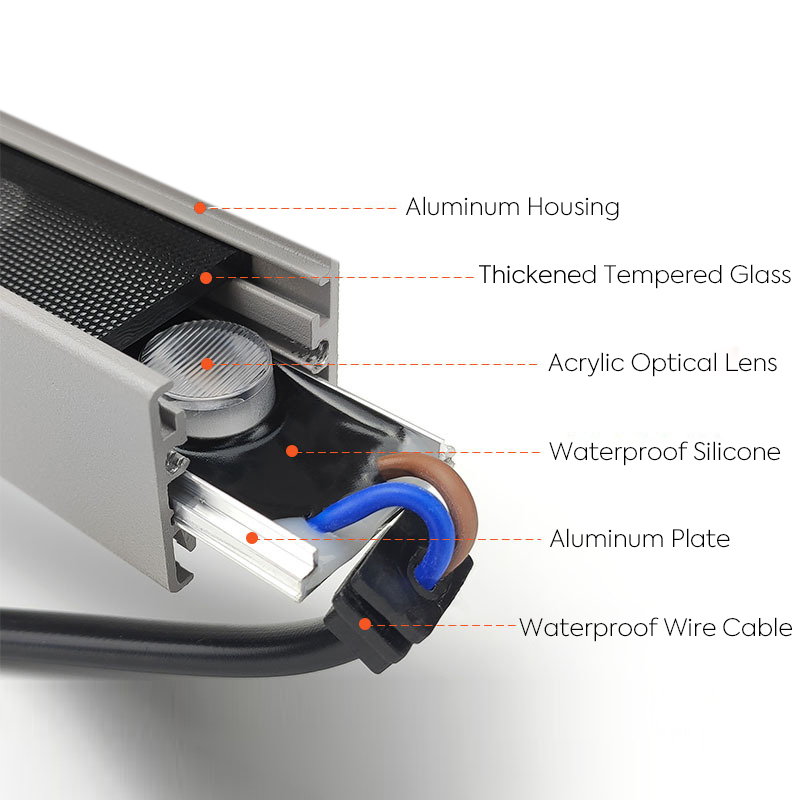

5. Triple waterproof design: The inside of Linear LED Lighting is completely filled with glue and waterproof treatment, waterproof rubber seal, integrated seal design.
6. Thickened tempered glass panel: Strong hardness, high light transmittance, waterproof and explosion proof.

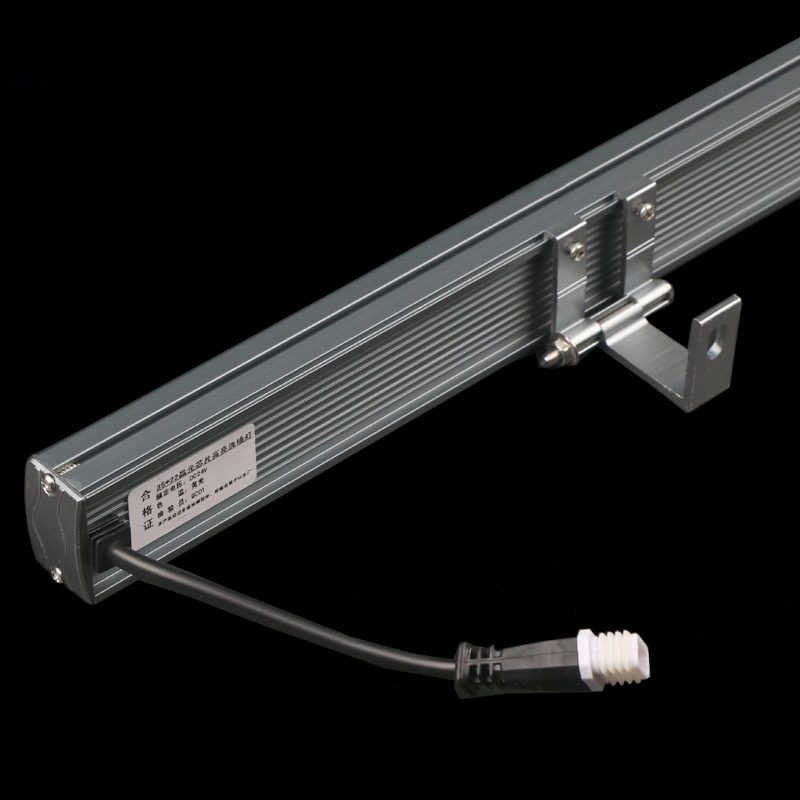

6. Thickened aluminum bracket: Simple installation and easy to use.
Standards and Certifications
LED Item: 18W Aluminum Lens LED Wall Wash Lighting
LED Model: QCY-XQ-01
LED Type: SMD LED Chips
Size of chip: 5050 SMD
Input voltage: DC24V
LED Lighting power: 18 Watt/ piece
Lamp bead quantity: 18LED
Light Color: Warm White/Daylight White/Yellow

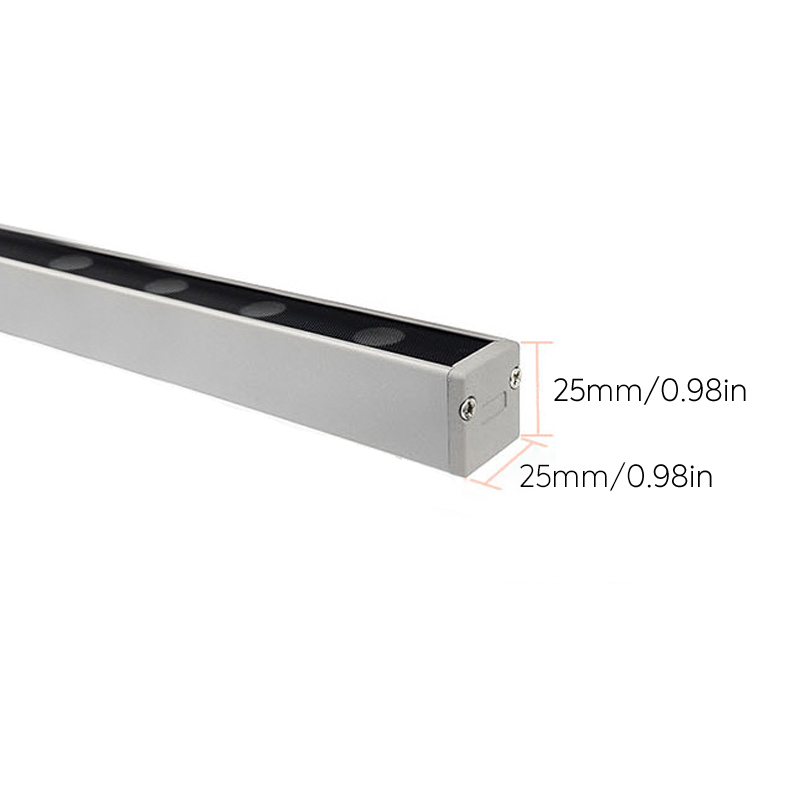

Fixture Dimensions: 35x22x1000mm (1.38''x0.87''x39.37'')
Brightness: high brightness
Grey level: 256
Lighting angle: 30
Color temperature: 2700-6500K
Working temperature: -30~40°C
Waterproof rating: IP67
Luminous flux: 110LM
Control type: External control
Fixture Material: Aluminum
Certifications: RoHS, CE
LED Lifespan: 50000hours
Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
