DC24V Ultra Long Waterproof Color Changing RGB Flexible LED Neon Light for Decorative Lighting
What is the difference between LED neon lights and ordinary LED strips?
LED neon light differs from ordinary LED strip light (silicone sleeve tube) with PVC flexible tube on the outside, which has good waterproof and heat dissipation.
Flexible neon light emits soft and delicate light, not blinding, with a strong sense of three-dimensionality and perspective in working and non-working states, and no light spot at high density.
Flexible LED neon tube light line has the characteristics of energy saving, environmental protection and health. No heat radiation is generated when working, no extra energy is lost, and LED neon lights do not produce any environmental pollution when used or discarded.
Flexible LED neon light is soft, bendable, knotted at will, and can be bent at will to make LED signs for exterior decoration and billboards, etc.
Long working life, low environmental dependence, can work normally below 60 degrees Celsius, can be lit in daylight without yellowing, and works normally in rain and other environments.
Replacing the traditional LED neon glass tube light, this flexible LED neon light (adopts 05*15 LED neon tube and ultra long lighting RGB LED strip) stands out from other LED lights and brings you the most satisfying decorative lighting effect.
Are you choosing a LED neon strip to light up the exterior decoration of your family home? This RGB LED neon tube light is the best option.
1. Suitable for outdoor decorative lighting, we recommend choosing an IP67 and above LED strip/LED neon light. This LED neon light strip is wrapped with high quality PVC material on the outside, and both ends of the LED neon light adopts LED fast connector + waterproofing dealing with good heat dissipation and water resistance to meet the lighting needs in outdoor environment.
2. No stinging sensation, the super bright light spot produced by the LED strip is softened by the 0.7mm thick milky white silicone neon tube, emitting a softer and more uniform glow, with no stinging sensation for direct eye contact, suitable for backlighting or positively exposed lighting projects
3. Work with LED controller, you can achieve single color gradient effect in dynamic and static mode, you can achieve precise color control via samrtphone app, Amazon Alexa, Google Assistant or LED remote controller(compatible with WL5 LED controller).
4. Easy to install, you only need to use a LED power supply and a LED controller connected at one end to control a 20m long LED neon light strip easily without voltage drop, avoiding complex wiring structure and making installation more convenient.
5. Meet customization requirements, complete 5/10/15/20m reel options are available, so if you have additional requirements for the length of the LED neon light strip, feel free to contact us for a custom length.
20m/65.6Ft Ultra long optional
Per roll with no voltage drop
High bright 5050SMD, 18LEDs/Ft
24VDC input voltage
Support multiple control ways

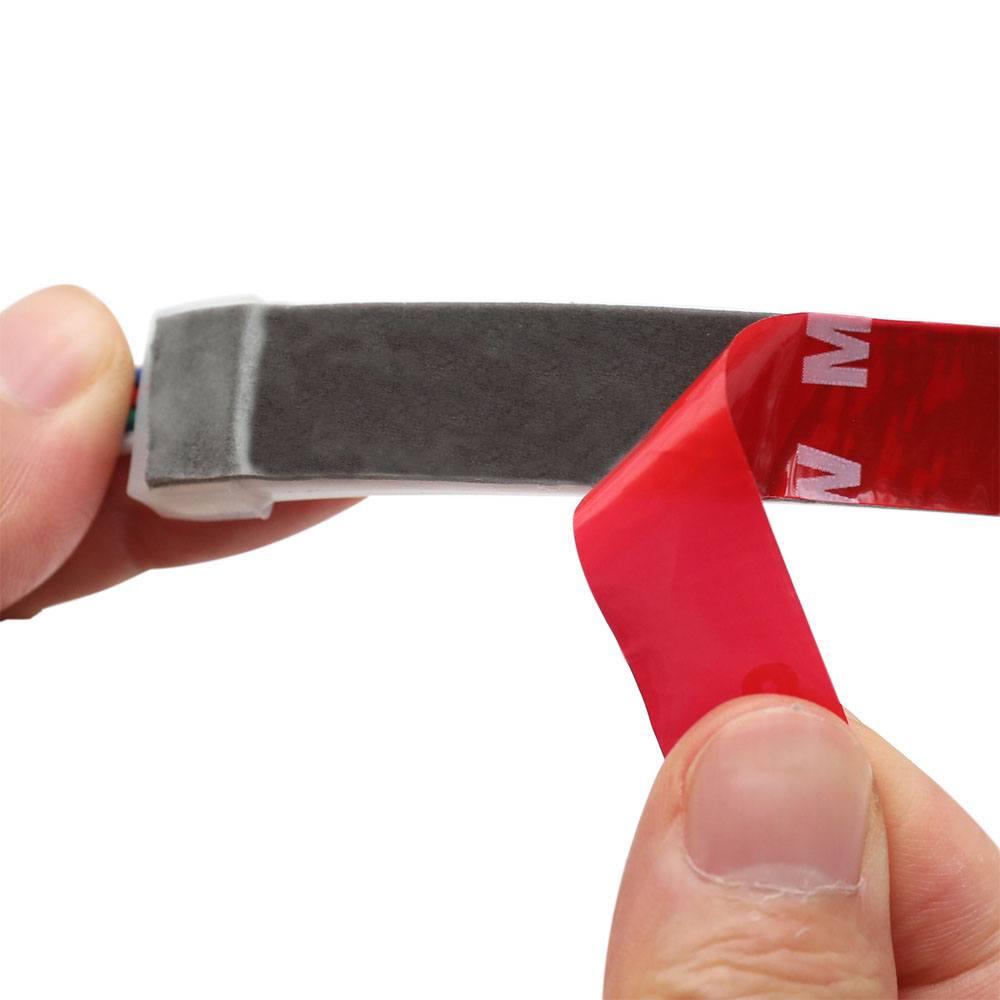

3M tape, easy installation

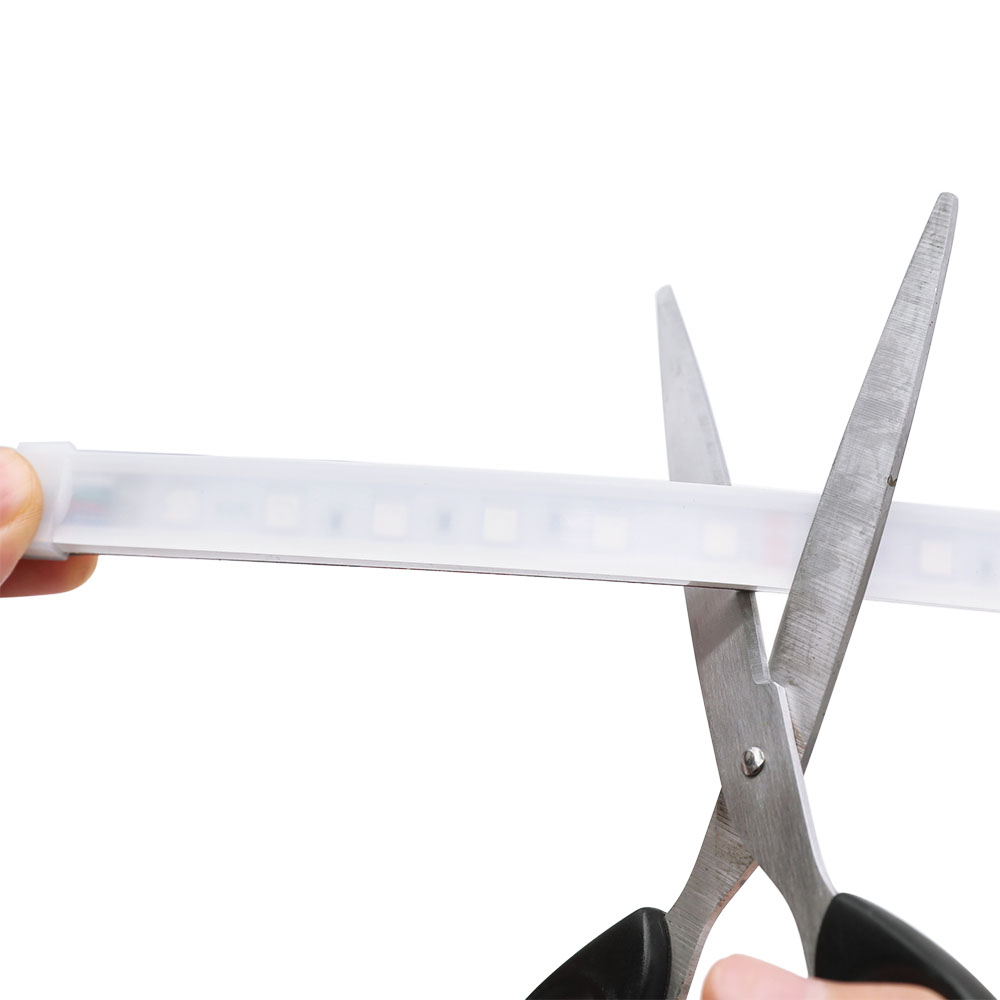

6LEDs cuttable, customize length
Suitable for outdoor decorative lighting
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: RGB
Dimension: 16.4ft-65.6ft/roll, every 6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft), 18LEDs/Ft
Warantty: 3 years
Length: 5/10/15/20m(16.4Ft-65.6Ft optional)
PCB Width: 12mm(0.47in)
Input Voltage(V): 24V DC
Input Current(A): 0.1A/Ft, 1.67A/16.4Ft, 3.33A/32.8Ft, 5A/49.2Ft, 6.67A/65.6Ft
Working Power: 8w/m, 40W/16.4Ft, 80W/32.8Ft, 120W/49.2Ft, 160W/65.6Ft
Lamp Luminous Flux(lm): 24~26lm/LED, 7200lm/16.4Ft, 14400lm/32.8Ft, 21600lm/32.8Ft, 28800lm/65.6Ft
Beam Pattern: 120 degrees
Water Proof: Waterproof IP67(PVC led neon tube)
1* 5m/16.4Ft RGB LED neon light
If you choose LED strips + controller + power supply, we will send you a complet non-waterproof led strip light kit.
If you choose LED strips + IP67(controller + power supply), we will send you a complet waterproof led strip light kit.
For LED Controller and Power Supply Option Description
For LED Controller
For indoor environment, If you choose the LED controller in the kit, we will send you YL5/WL5 (support samrtphone app, Amazon Alexa, Google Assistant control)
For outdoor environment, if you choose the waterproof LED controller in the kit, we will send you WL5-WP(waterproof 5in1 RGBCCT, support Amazon Alexa, Google Assistant control)
If you have some requirements for other led controllers, you can visit our Color Change RGB Controller Series
To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
In order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each roll led strip lights.
For LED Power Supply
As the length of the LED strip increases, its power will decrease a little. The power supply of MeanWell UL-Listed LED power supply and waterproof LED power supply is the actual power, so 264W power can be selected as 250W LED power supply but needs to be greater than the rated power.
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
