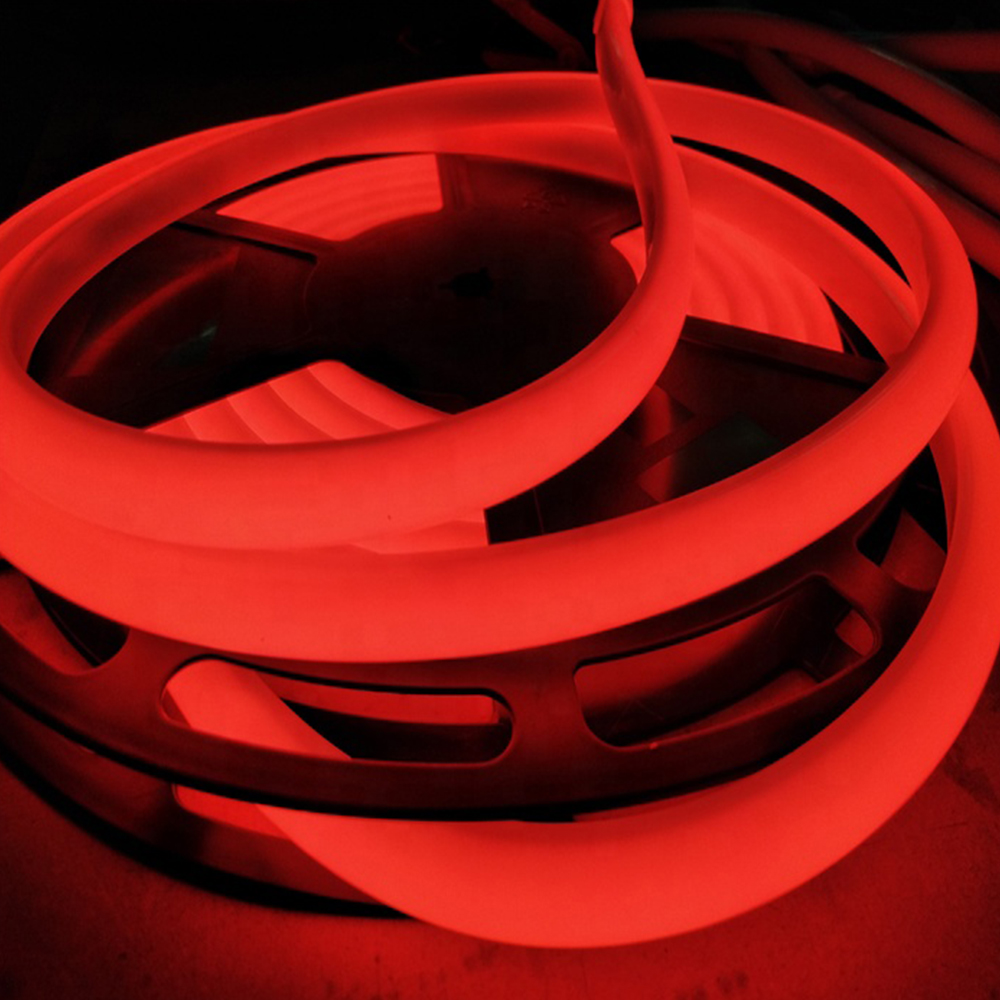

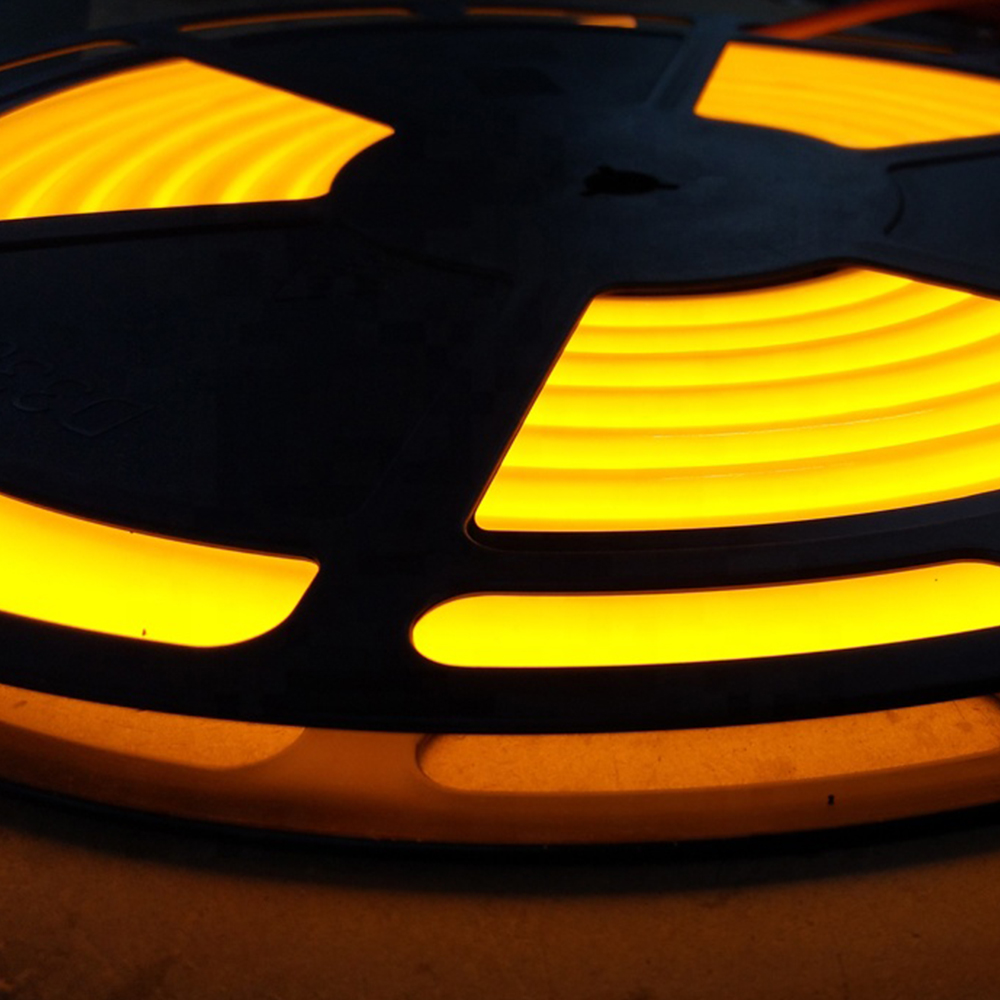

DC12V 5050SMD 10*23mm High Bright Silicone RGB Color Changing Flexible LED Neon Tube Lights, 5m/16.4Ft roll, Warranty 5 years
The LED neon light uses high-brightness SMD5050 LED, which has high luminous brightness and pure luminous color, which can be matched with the controller to form a separate R/G/B luminous color.
Support DC12V input voltage, every 3 LEDs cuttable, the length of LED strip can be customized, if more than 5 meters, you need to supply power at both ends or use an amplifier to avoid voltage drop.
The exterior adopts flexible silicone neon tube, IP67 waterproof and above, food-grade silicone, longer life than ordinary PVC tube, UV resistance, and yellowing resistance.

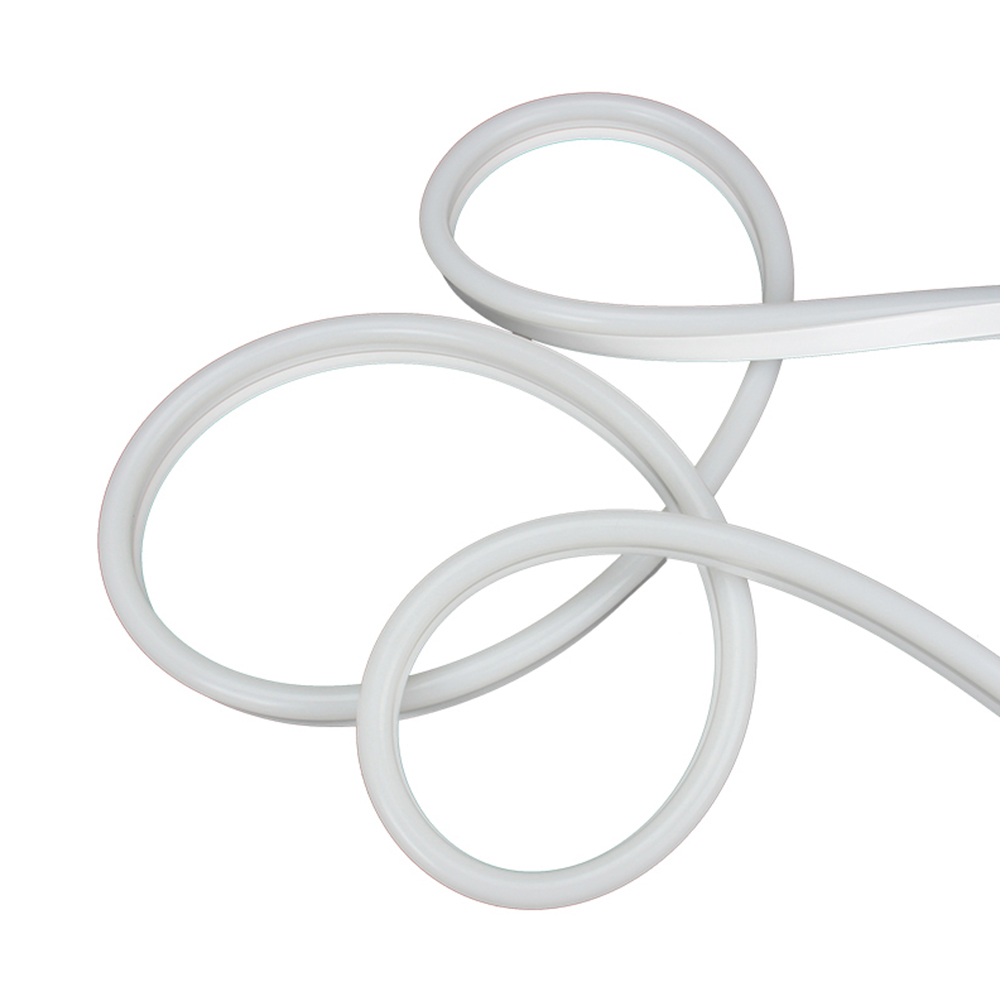

5 meters per roll by sales, LED neon lights are flexible, can be bent arbitrarily, and works with LED mounting brackets, easy to install.
DC12V 5-meter no voltage drop, but if you need a 20-meter DC12V neon light, in order to ensure that you use these light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each 10-meter.
High brightness SMD5050 LED
DC12V input voltage
3 LEDs cuttable
Food grade silicone material
5 meters per roll by sales
Easy to install
Color Changing RGB
18LEDs/Ft high density
Standards and Certifications
LED Strip Type: SMD 5050 RGB
LED Chip: IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 10cm/0.39in can be cut
LED Quantity: 18LEDs/Ft, 60 LEDs per meter
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H2.3cm(0.90in )
Input Voltage(V): 12VDC
Working Power: 4.4W/Ft, 14.4W/3.28ft, 72W/Roll
Lumen Per LED: 20-22Lumen 402lm Max /ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Waterproof IP67
Warantty: 3 years
For LED Controller and Power Supply Option Description
For LED Controller
For indoor environment, If you choose the LED controller in the kit, we will send you YL5/WL5 (support samrtphone app, Amazon Alexa, Google Assistant control)
For outdoor environment, if you choose the waterproof LED controller in the kit, we will send you WL5-WP(waterproof 5in1 RGBCCT, support Amazon Alexa, Google Assistant control)
If you have some requirements for other led controllers, you can visit our Color Change RGB Controller Series
For LED Power Supply
If you choose non-waterproof LED power supply, we will send you LRS-100-12 for indoor environment.
If you choose waterproof LED power supply, we will send you PSWP-12V-100W for outdoor environment.
To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
In order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each roll led strip lights.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
