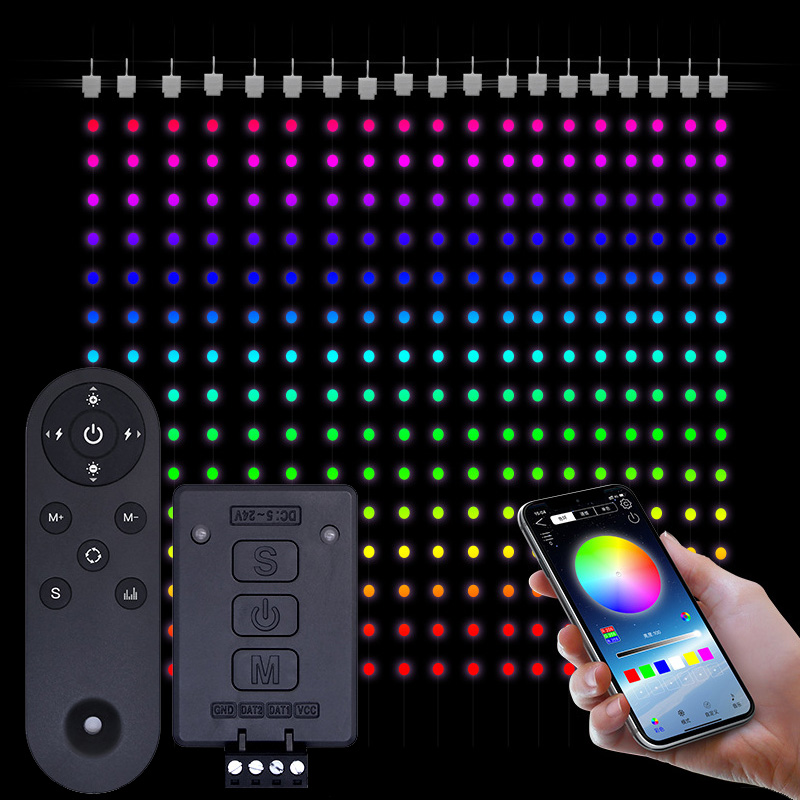

DC5-24V, Dream Color SPI LED Bluetooth Controller, Control by IOS Android Phone Device, Working with Music,MIC,Sport Modes
This LED-WiFi dream color bluetooth controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest bluetooth technical in the market. It committed to achieve the new idea of "let music of full color" and make the products more convenient,intelligent,entertaining and practical. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
App control via bluetooth 4.0, long control distance, convenient to use. support almost every kind of one-wire or two-wire LED driver IC. Brightness adjustable , with music/MIC/Sport modes, which are vivid and beautiful. Support setting total pixel number, able to control up to 1024 pixels. DC5V-24V wide working voltage, preventing reverse connection of power supply. User setting saving.
Use bluetooth technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 20m, in outdoor can control more than 30m.

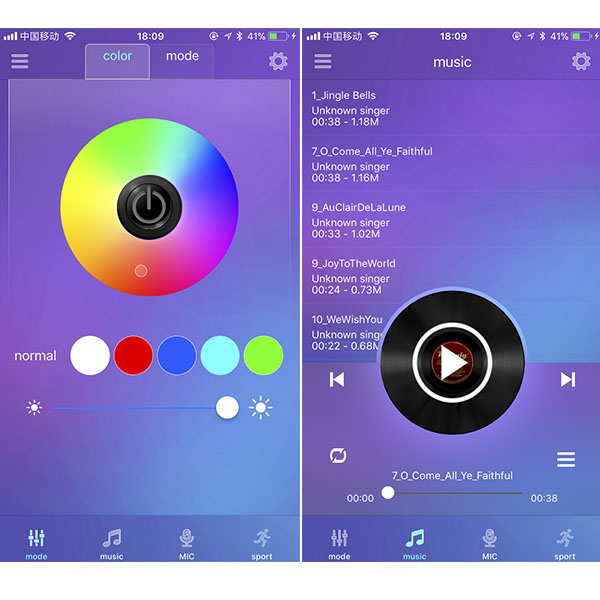

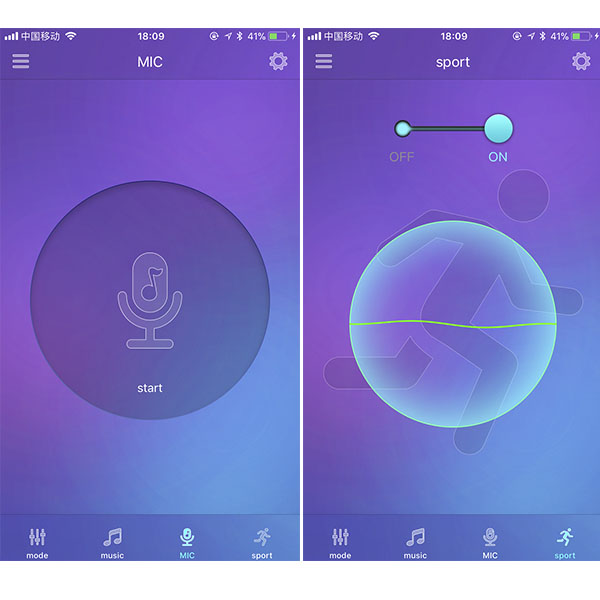

"Magic strip" is a phone APP to control the smart strip, through this software, the controller can control the led strip display different color or display in fixed mode. It can also extract the rhythm of the music, the sound or even the movement, show out through the display of the LED Strip in real time. (phone APP,Android 4.3 Above, IOS 7.0 Above).
Standards and Certifications
1. Smart phone app control
2. Light changing with music rhythm
3. Fixed mode control
4. Microphone in real time control
5. Spots mode
6. 16 million colors change
7. IOS wireless music transmission
8. English and chinese language switchs
9. Flashing light when incoming calls
10. Max control pixel 1024
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1 x LED bluetooth Controller
