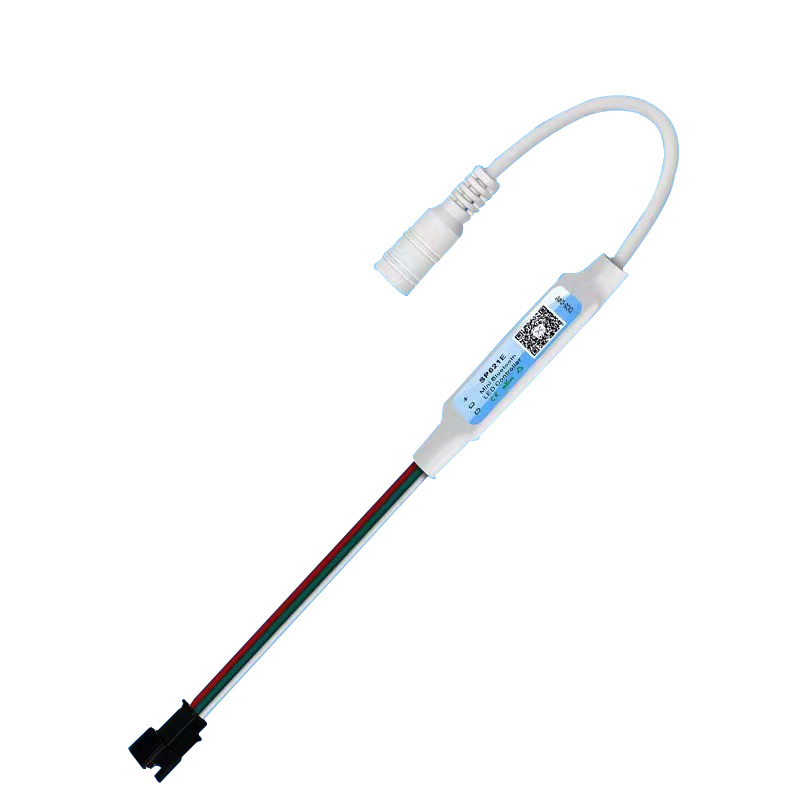

SP621E Mini Bluetooth LED Light Controller
DC5-24V SP621E 3 Channels Mini Bluetooth LED Controller Support WS2811 WS2812B SK6812 Addressable LED Strip Light.
SP621E LED controller is the latest 3-channel addressable LED controller developed at present. It can be directly connected to the LED power adapter and LED strip light to achieve plug and play.
DC5-24V low voltage input, safe and energy-saving, harmless to human body; smartphone APP is directly connected to control via Bluetooth, high-efficiency and fast, the maximum control distance is 30m
Support a variety of Arduino ICs on the market, such as WS2812B/WS2811/SK6812/WS2813/WS2815/TM1812/UCS1903, etc, with wide applicability, please note that the 3-channel LED controller is not compatible with dual signal wire LED strip light
SPI LED controller controls the addressable LED strip to generate 16 million luminous colors, and has a variety of built-in dynamic modes, which can easily convert between dynamic and static modes.
Product Name: SP621E LED controller
Input Voltage: DC5-24V
Can Be Control: DC5V/12V/24V Addressable RGB LED Strips
Support IC: WS2812B/WS2811/SK6812/WS2813/WS2815/TM1812/UCS1903
APP Control Distance: 15meters/49.2ft
Control Mode: APP (iOS or Android)
Working Temperature: -20~60°C
APP Name: FairyNest X
Music Control: Built-in MIC
Memory: Automatic memory function
Speed Control: Adjustable
Max Pixel Quantity: 600pixels
1 * SP621E led controller
1 * User manual
SP621E supports control by APP, supports IOS and Android systems.
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later,
you can search “FairyNest X” in the App Store or Google Play to find the app,
or scan the QR code on the LED controller to download and install:
1. Power supply/phone/controller/led strip not include.
2. This phone only support 2.4G WiFi network.Can't support 5.0G WiFi network.
3. This app support Android 4.4 or above, IOS 10.0 or above.
4. Supply voltage of this product is 5~24 Volts DC, do not exceed.
5. Shorting output wires my cause damage to dimmer.
6. Always observe proper polarity when connecting power and load.
7. For indoor use only - this product is not waterproof or weatherproof.
