Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights

Model: CONFULL-A2-3T
Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights
  • Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights
  • Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights
  • Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights
  • Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights
  • Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights
  • Dimmable LED SPI Music Controller - 256 Music Programs - Control DC5-24V 600 Pixels WS2811 WS2801 WS2812 LPD6803 APA102 Addressable LED Strip Lights

Select Specifications:

Select Operating Voltage:

Select Applied to:

Starting at: $34.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$34.98
5-9
$34.28
10-14
$33.23
15+
$31.83
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This dimmable LED-SPI dream color music controller is following the traditional with technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest technical in the market.

    This connector with four interface one the left side GND(V-),CLK,DATA, V+ is connect led equipment,  This controller now can support 10 kinds of SPI strip in market, for APA102 LPD6803 TM1803 UCS1903 WS2811 TM1812 TM1809 WS2801 WS2812B TLS3001 TLS3008 P9813 SM16703 IC dream color led strip lights or led dream color string module lights.



    Standards and Certifications

    DC5-24V warrantyCE FCC UL RoHS ISA SGS ISO led factory



    Technical parameters

    Operating temperature: -20 ~ +60 degree

    Operating voltage: 5V 12V 24V

    Signal output: SPI signal, 600pixels; applicable lamp bead: WS2811/WS2812

    Consumed power: < 0.3W

    Product size: 100mm×50mm×20mm

    Product net weight: 158g



    Function

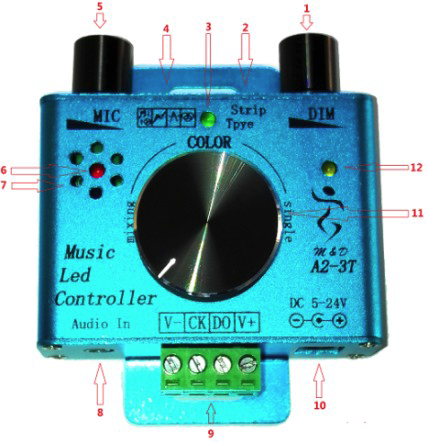

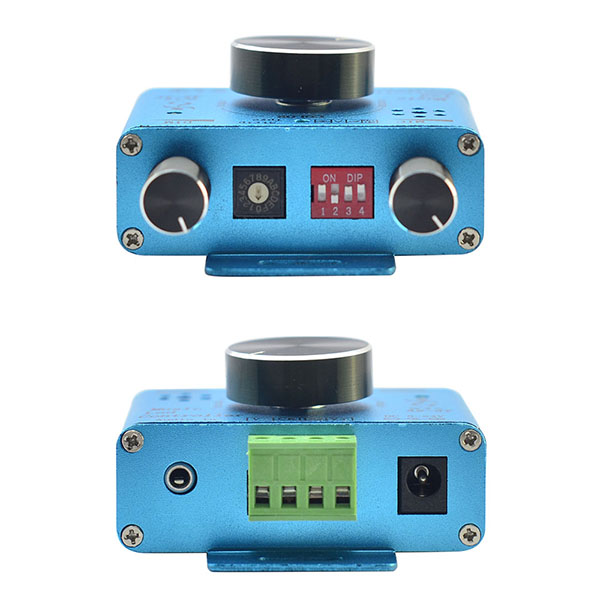

    1、DIM Knob(1):Maximum DIM adjustment; When turned off, with the volume control in voice mode, maximal brightness when horse race. rgbic led controller function

    2、DIM Indicator LED(12):illuminates when it is adjusted, and turns off when it is off.

    3、MIC Amplify Knob(5):Adjust the MIC signal magnification when the audio cable jack is not plugged in

    4、MIC Indicator LED(6):illuminates when it is adjusted, and turns off when it is off.

    5、Color Knob(11):Single color adjustment; When turned off, Choose a mix of colors.

    6、Color Indicator LED(3):illuminates when it is adjusted, and turns off when it is off.

    7、3.5MM Audio Line(8):External audio equipment; Inserting the audio cable will disconnect the MIC signal

    8、SET(4):  led controller button

         led controller button(1)、 Turn ON to select to a complete pattern combination,Down to choose to simplify the pattern combination;;

         led controller button(2)、 Turn ON to select to amplify the audio signal again; Down the software no longer amplify the signal;

         led controller button(3)、 Turn ON to select the audio change can be flashing; Down selection does not blink;

         led controller button(4)、 Turn ON when no audio and switch to automatic horse racing; Down to choose when no audio and not to switch to race;

    9、Select Strip Type(2): led controller button

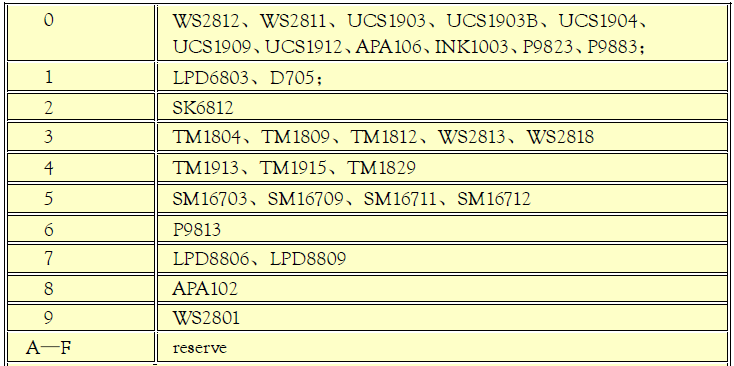

    The number corresponding to the arrow represents the strip type as follows:

    support RGBIC chip list

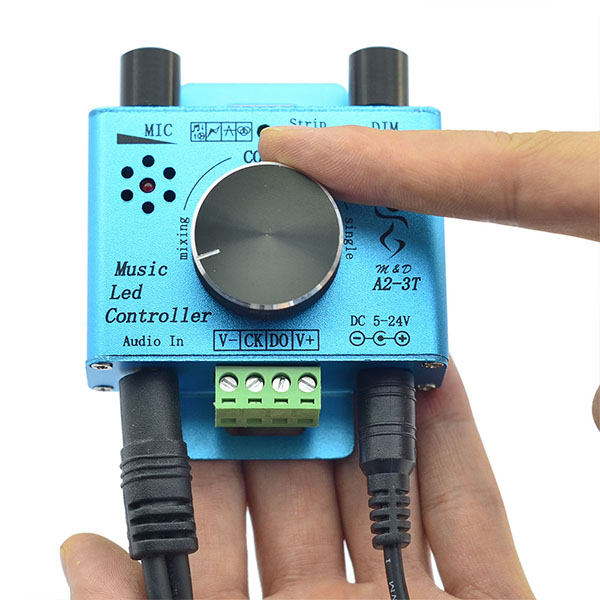

    10、Output Strip interface(9):

    led controller button

    V + is DC positive power supply,;

    V–is DC power supply negative, which is the ground. Here is also the power input of the controller.

    DO is the Strip of the signal lines, three–wire and

    four–wire Strip are used;

    CK is the Strip of the clock line, four-wire Strip used;

    11、DC Power Supply(10):

    DC power interface, light bar to provide power up to 8A, or strip external power supply.

    12、Sound Hole(7):

    MIC sound source entrance, the use of ambient sound, adjust the direction of the controller, making the sound hole against the sound source, and remain uncovered.



    Installation instruction

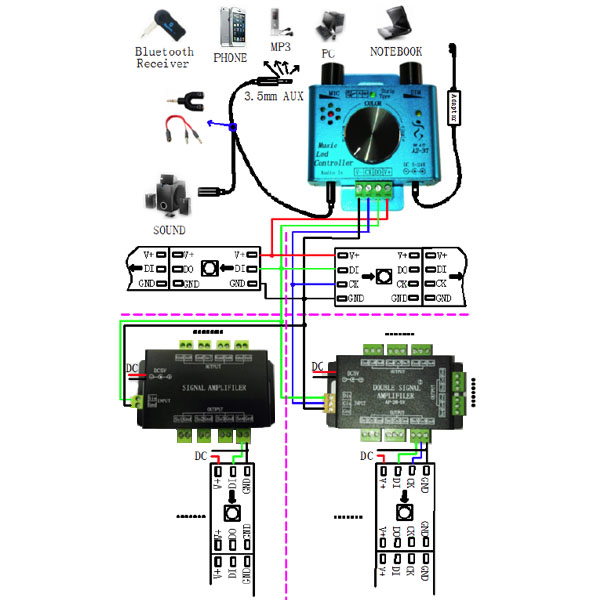

    Vertical dashed left three-wire Strip wiring diagram, the right four-wire Strip wiring diagram;

    Under the horizontal line is the expansion of the wiring diagram of multiple Strip;

    rgbic music led controller wiring diagram with amplifier



    Usage considerations

    1. Through the different light combination forms of light bar, string light and point-source light, combined with the pattern layout, the personalized effect can be realized.

    2. The controller is the general type, and needs to be compatible with various types of music. The controller’s distinction for the type depends on the intensity of the audio input signal. If the intense light change is needed, turn the volume up to the maximum, and the loudspeaker is adjusted by the built-in volume control function of the audio.

    3. It is advised to use the low-light level backing light in total darkness and maintain an appropriate distance, so as to prevent the eyes discomfort.

    4. The audio cable length is different in the installation, and the product’s audio cable is mainly used for testing function, and it is advised to choose the better-performance audio cable with masking functions, so as to get the better sound quality and prevent the audio cable noise caused by the antenna effect.

    5. The controller receives the input signal from the two left and right channels, and only one channel input will significantly decrease the effect of light change. And AM to AM 3.5mm audio cable uses the three-stage contact with the two-channel mode, and please do not use the four-stage contact with the microphone mode.

    6. Output two ways using the one-to-two audio contact or one-to-two couple line directly from the player to the controller and audio. Do not use the one-to-two lotus contact that separately outputs the left and right channel, leading to only one channel input of the controller and audio.

    7. In order to better stick to the original style of music, the audio acquisition of controller adopts the 3.5mm audio cable input, rather than collecting the sound using microphones.

    8. The controller’s output ability is limited, so the signal amplifier is needed to extend the signal line or multiplexed output. The signal amplifier can isolate the power among light bars of different voltage, sharing the signal among light bars of different voltage.



    Notice

    1. Avoid using it in damp environment, and avoid contacting with water and other liquids.

    2. Use the product away from magnetic field.

    3. Do not let the children touch the wiring, so as to avoid the damage caused by the product interface and wiring errors.

    4. Non-professional person is forbidden to open the shell.

    5. The product appearance uses the metal material, so the rust due to the scratch, surface layer peeling and natural metal oxidization are beyond the scope of the warranty.

    5.  Anti-piracy statement, the copyright information is included either expressed or implied, and will show under specified conditions. Copying will be punished.



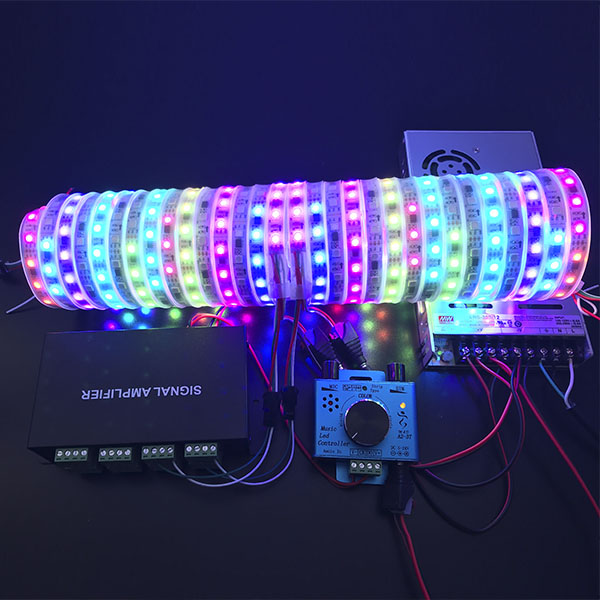

    DC5V Amplifiler Description

    Signal amplifier (repeater) receives one way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream-color striplight changes in effect; and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifier.

    Specification

    1)Working temperature:  -20 - 60 degree                          2) Supply voltage:  DC 5V

    3)Product size: 93mm×62mm×25mm                              4)Product net weight:120g

    5)Consumed power: < 0.1W                                            6)Output: 8 SPI signal , 250pixels / channel



    Installation instruction

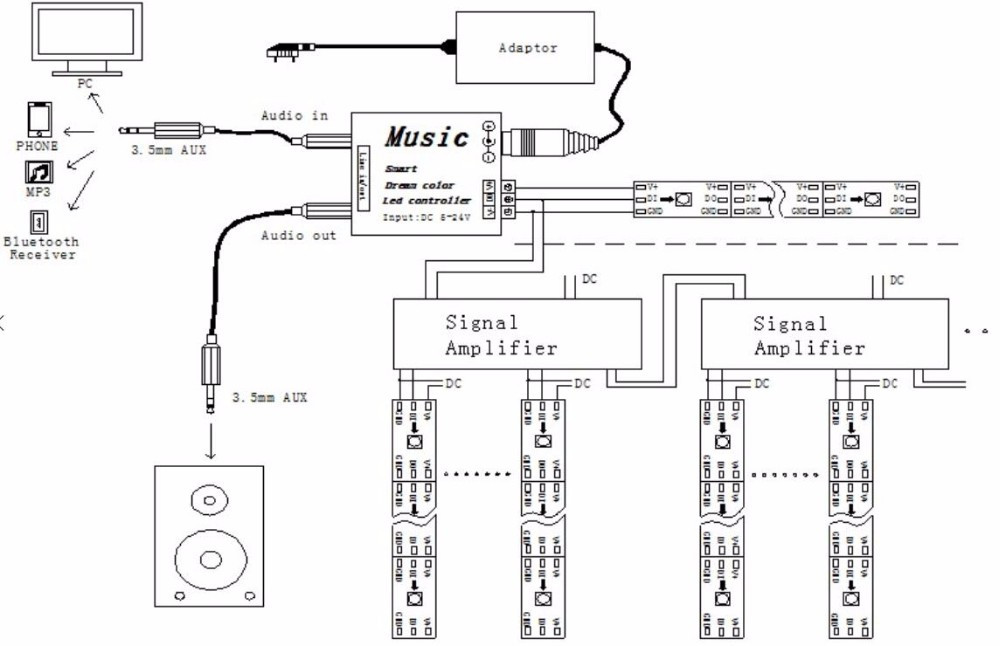

    music spi led controller and amplifier wiring diagram



    Applications

    Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.

    Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc



    Safety

    Supply voltage of this product is 5/12/24 Volts DC, do not exceed.

    Shorting output wires my cause damage to dimmer.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    Note

    QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

    Connect according to the Wiring Schematic drawing.

    Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.



    Package including

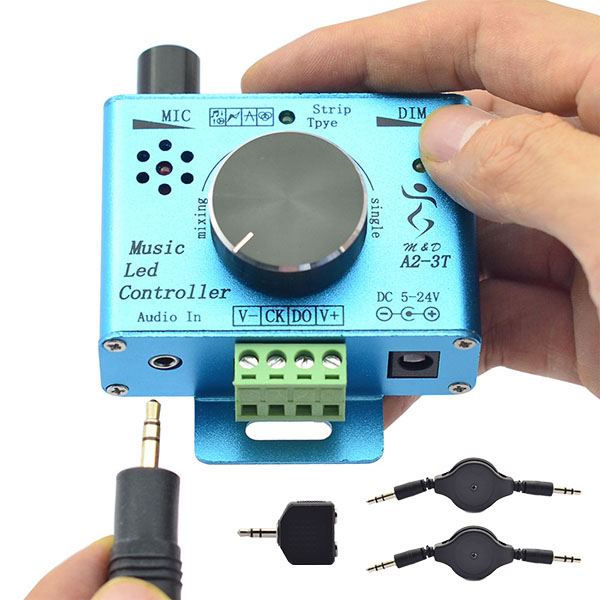

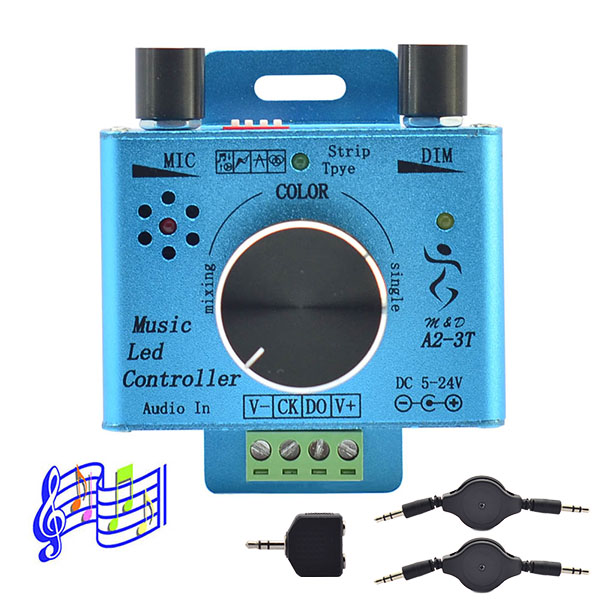

    1 x  LED Music Controller

    1 x  User Manual

    1 x product box

    2x Audio 3.5mm cables

    1x 1 to 2 audio connector
