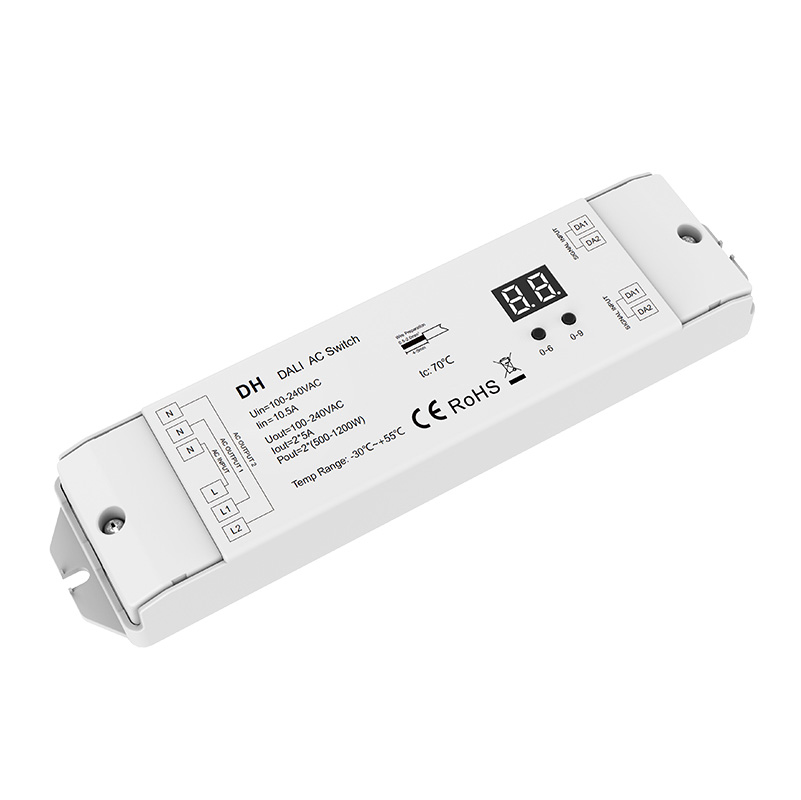

DH (DT7) 100-240VAC 2CH*5A DALI AC Switch

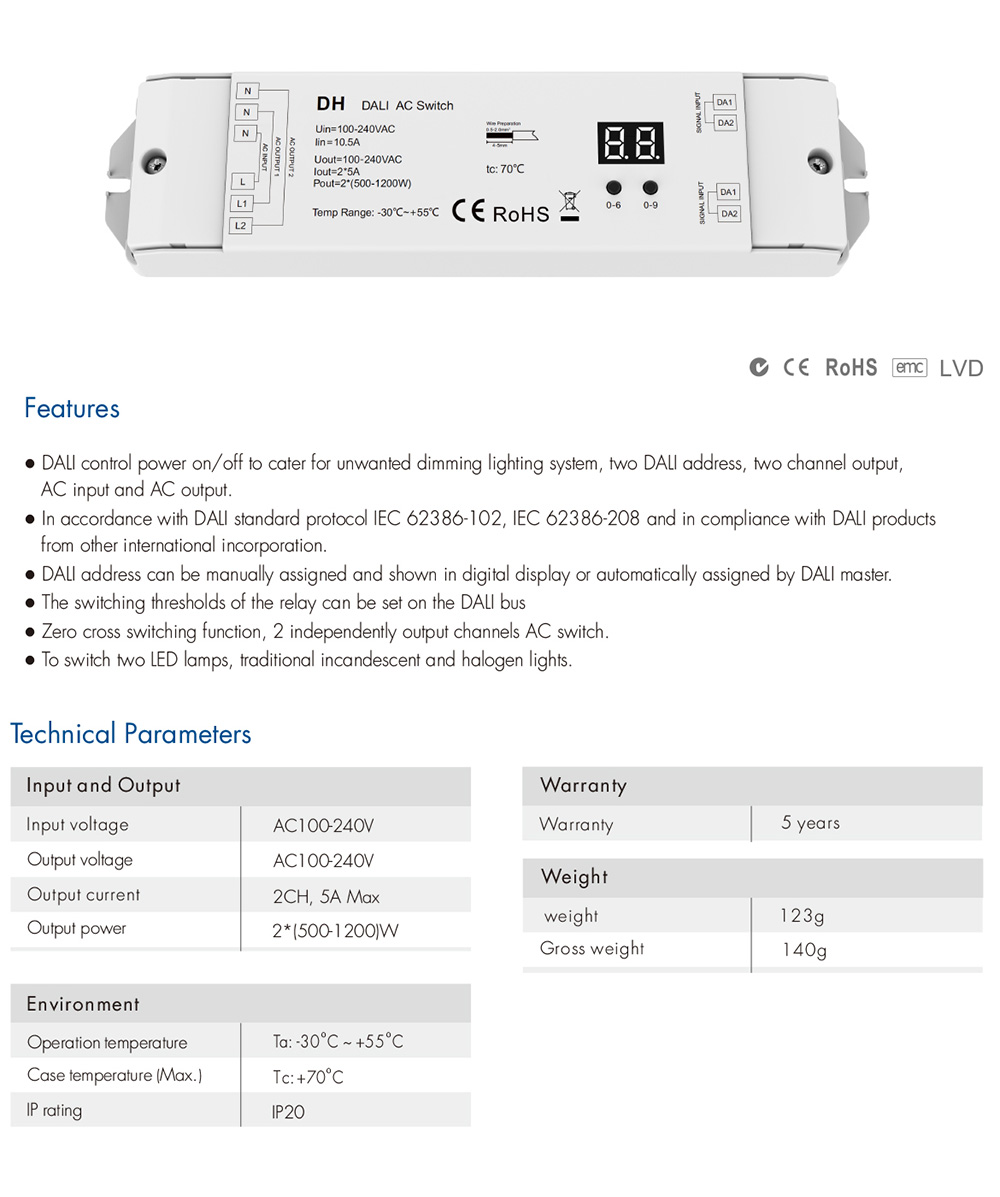

● DALI control power on/off to cater for unwanted dimming lighting system, two DALI address, two channel output, AC input and AC output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-208 and in compliance with DALI products from other international incorporation.

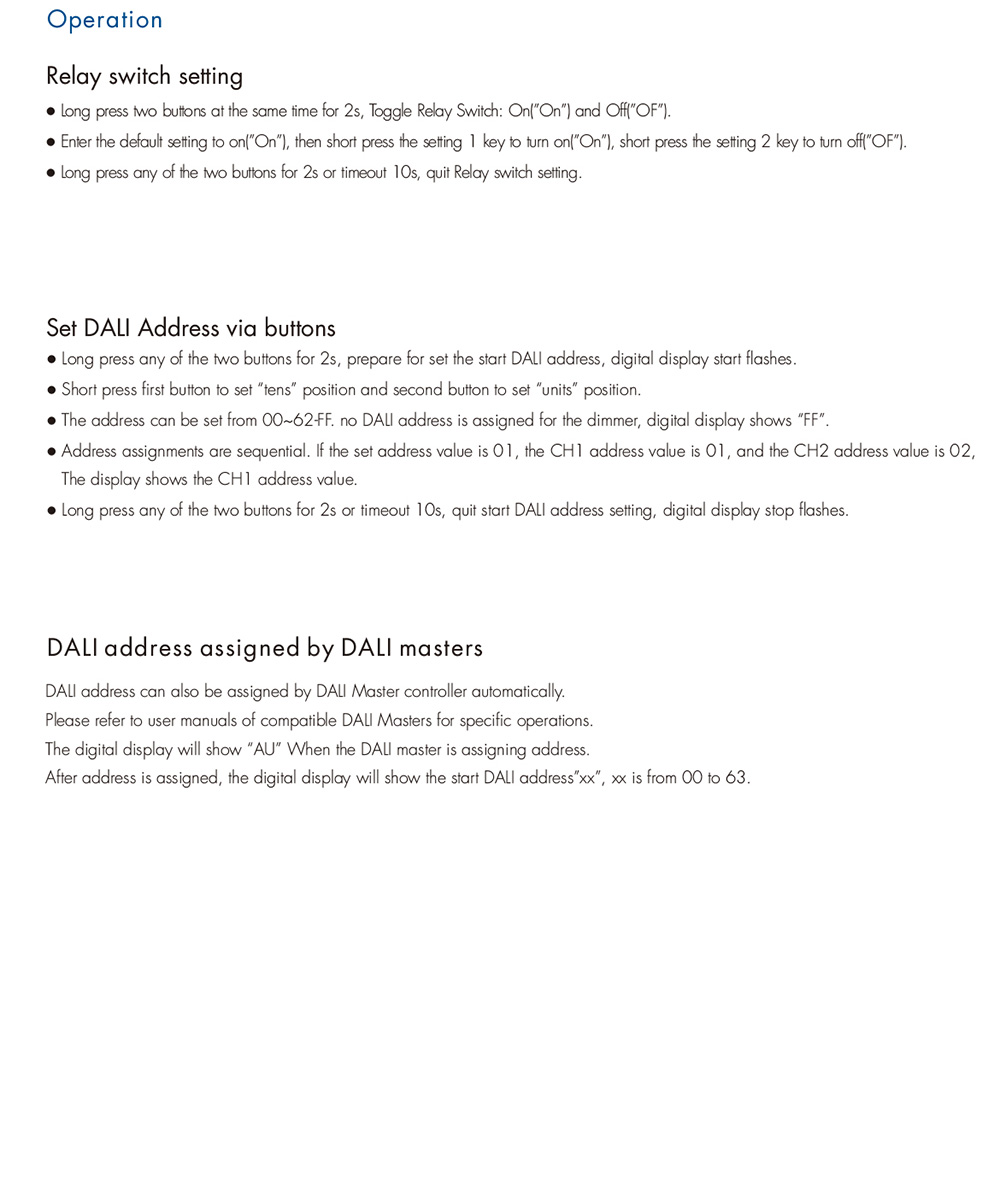

● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● The switching thresholds of the relay can be set on the DALI bus
● Zero cross switching function, 2 independently output channels AC switch.
● To switch two LED lamps, traditional incandescent and halogen lights.
Input Voltage: AC100-240V
Output Voltage: AC100-240V
Output Current:Max. 2CH, 5A Max
Output Power: 2*(500-1200W)
Warranty and Protection
Warranty: 5 years
Standards and Certifications
