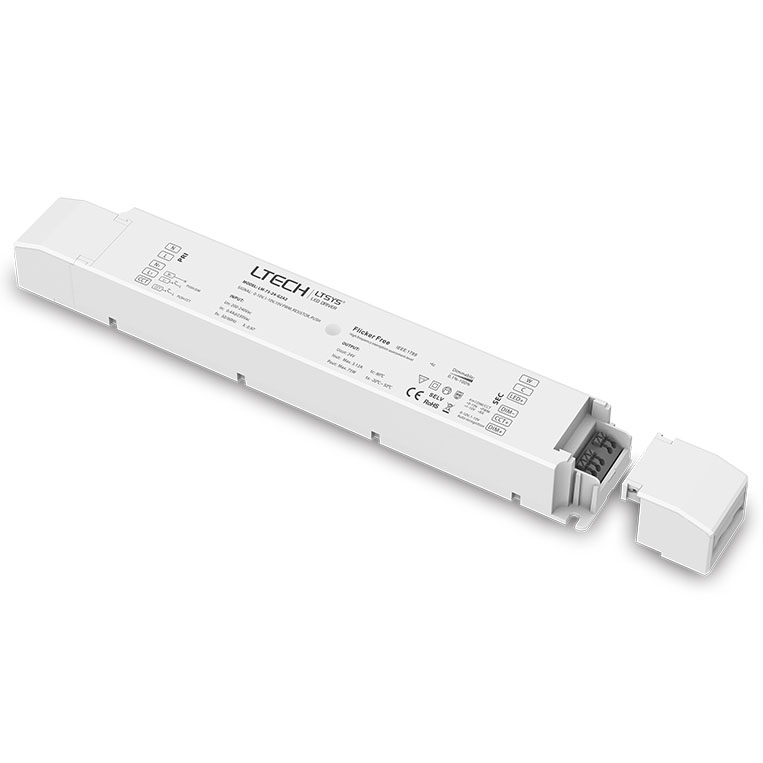

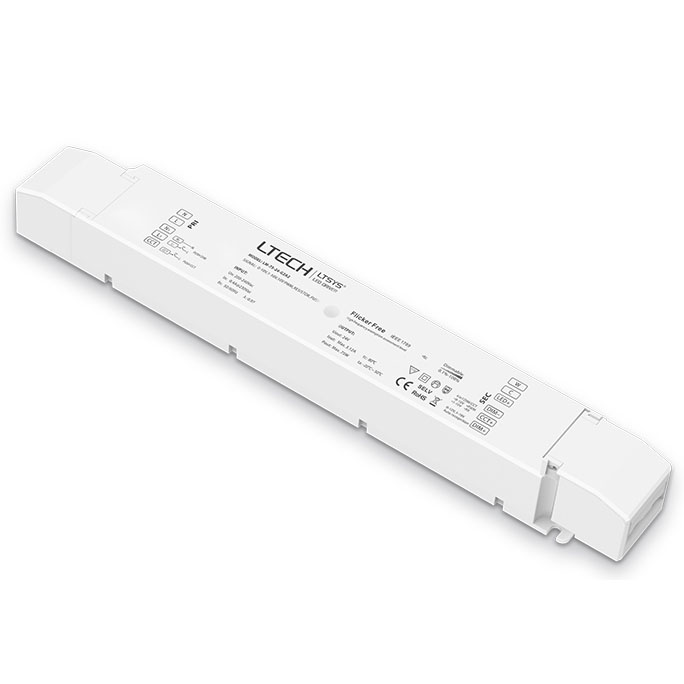

LED Intelligent Driver, 75W 24VDC CV 0-10V/1-10V DIM&CT Driver（200-240Vac）LM-75-24-G2A2
LED Intelligent Driver
Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT
0-10V DIM and color temperature adjusting driver, 2 independently SELV constant
voltage output channels.
Constant power design, adjust the different color temperature to keep the same brightness.
Dimming range from 0-100%, LED start at 0.1% possible.
Color temperature adjusting range: 2700-6500K
Automatic recognition of 0-10V, 1-10V input signal.
0~100% flicker-free, achieve the level of exemption assessment.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.
