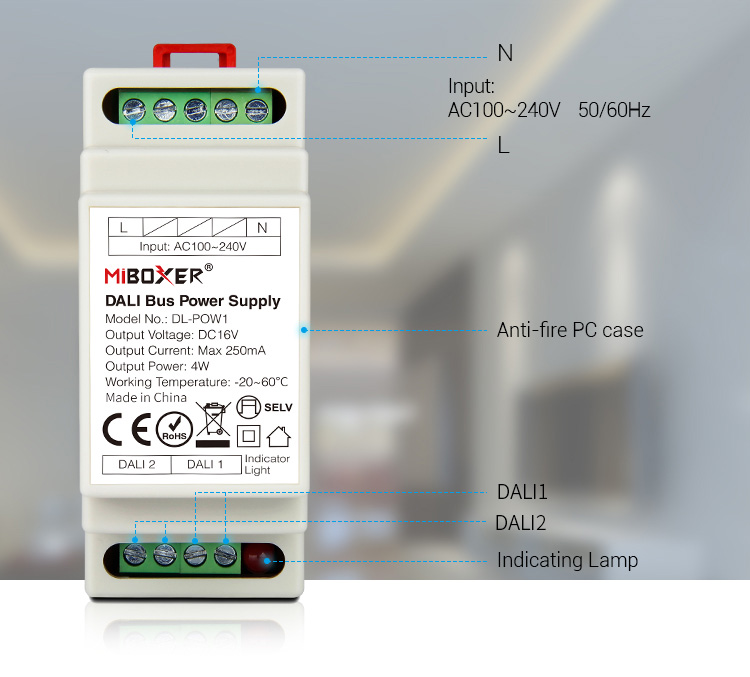

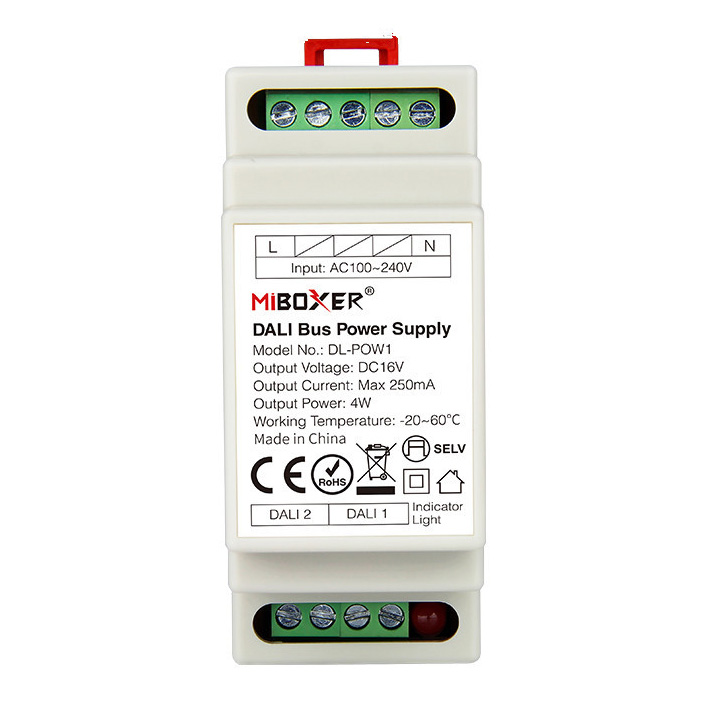

DL-POW1 DALI Bus Power Supply (DIN Rail)
Product Name: DALI Bus Power Supply (DIN Rail)
Model No.: DL-POW1
Input Voltage: AC100-240V 50/60Hz
Input Current: 115Vac/≤0.09A, 230Vac/≤0.05A
Leakage Current: <0.5mA/230Vac
Inrush Current: Cold start 10A at 230Vac
Setup Time: 115Vac<2500ms, 230Vac<1000ms (at full load)
Output Voltage: DC16V
Output Current: 250mA Max
Max. Reted power: 4W
Ripple & Noise: 0.2Vp-p (at full load)
Working Temp.: -20-60℃
Working Humidity: 20 ~ 95%RH, non-condensing
Safety & EMC Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH
