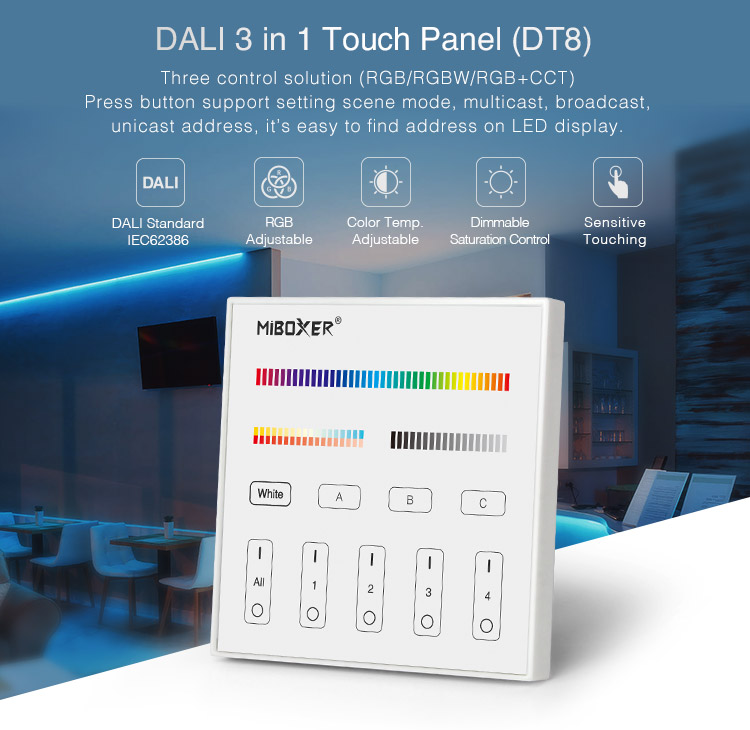

DP3S DALI 3 in 1 Touch Panel ( DT8 )
Model No.: DP3S
Power Supply: DALI Power

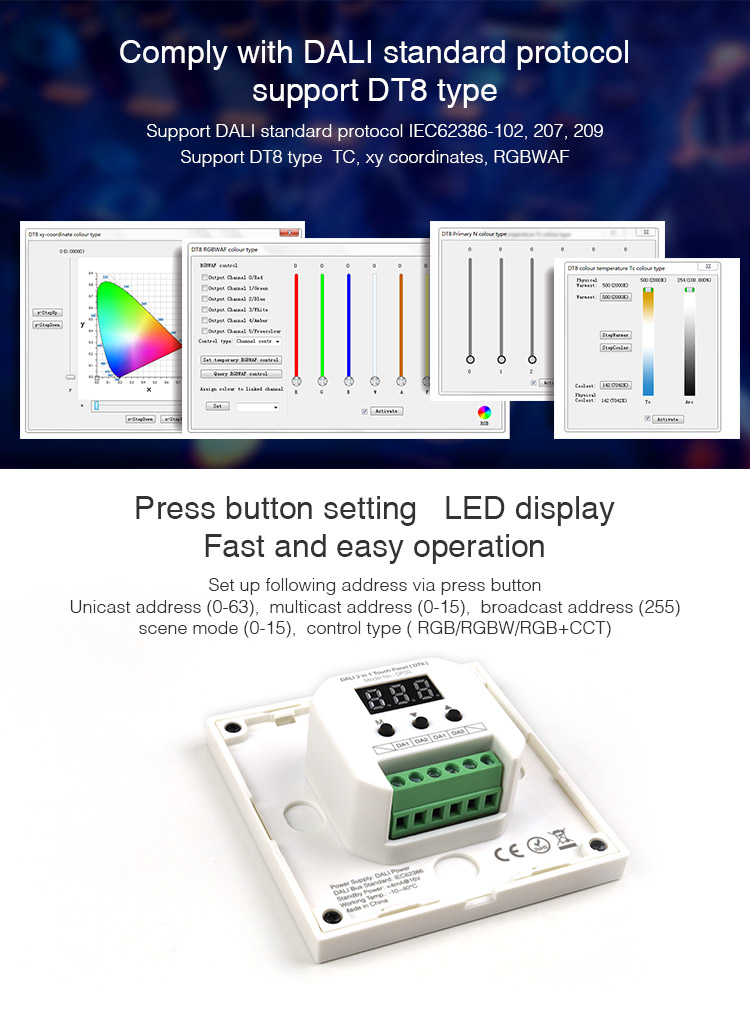

DALI Bus Standard: IEC62386-102, 207, 209
Output Signal: DALI Signal
Controlling Type: RGB（DT8 type: xy coordinates） RGBW（DT8 type: RGBWAF）RGB+CCT（DT8 type: RGBWAF）
Standby Current: <4mA@16V
Working Temp.: -10~40°C
