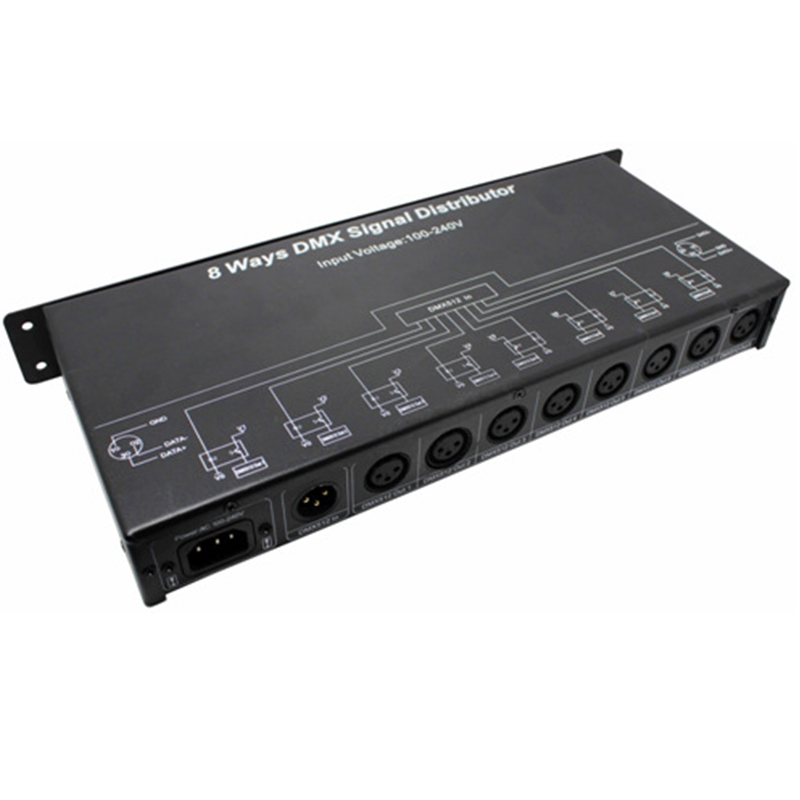

DMX128 Signal Distributor 8 Channel For DMX512 LED Strip Lights and DMX512 Decoder
DMX128 signal distributor is one series of DMX signal distributor, is specially used for amplifying DMX512 digital lighting control signal and 8 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to be complete electrical isolation. Due to the independent isolation between input/output interfaces, it can avoid burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to improve reliability for the whole digital lighting control system.
Standards and Certifications
Working temperature: -20-60℃
Input voltage: AC 100 ~ 240V 50～60Hz
Rated power: 7W
Input signal: 8 channel DMX512 signal, the output port can be connected to 32 equipments mostly.
The isolation voltage between input/output interface: > 1000V

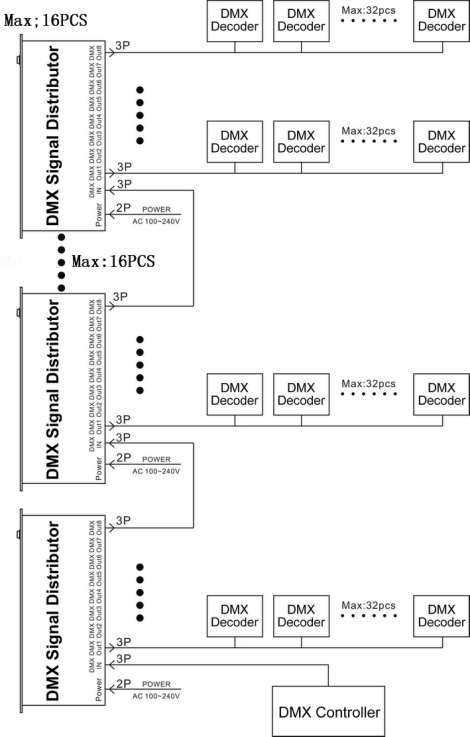

Cascade quantity: can cascade 16pcs signal amplifier mostly.

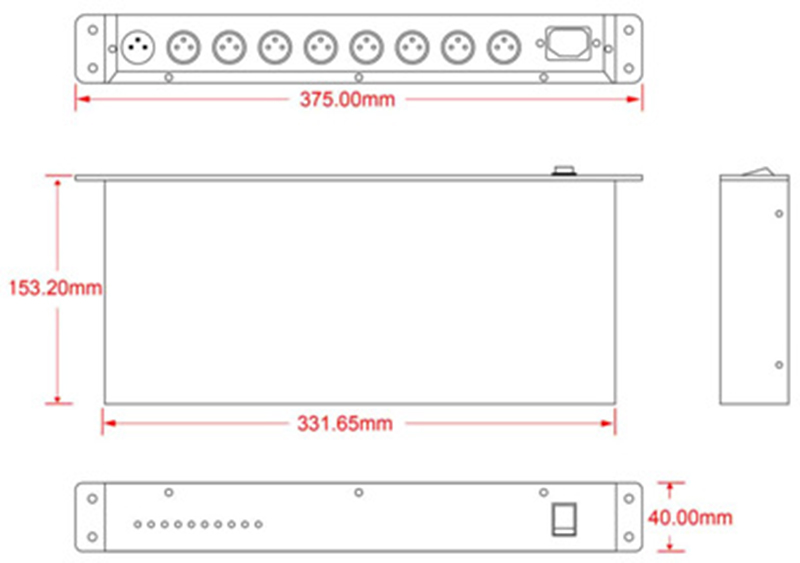

External dimension: L375*W153*H40mm
Packing size: L410*W250

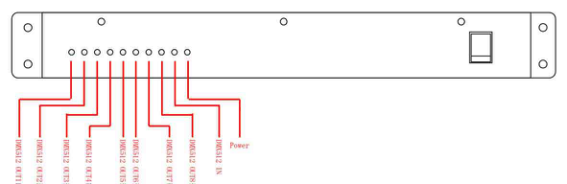

Signal light specification
Power light: light on-power on; light off-power off
DMX512 IN light: light on-DMX512 signal input is normal; light off-DMX512 signal is not input or abnormal
DMX512 OUT1 ～ DMX512 OUT4 lights: light on-DMX512 signal output is normal; light off-corresponding DMX512 signal channel output failure

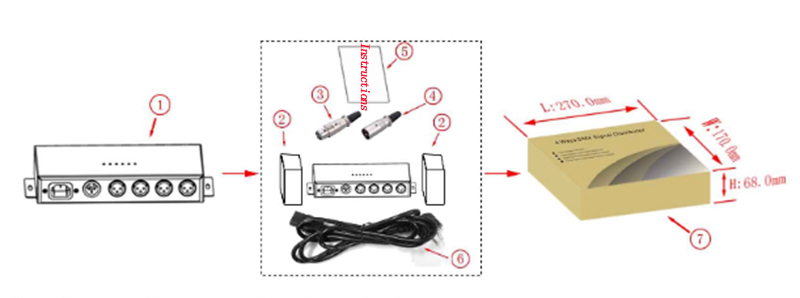

Direction for Use
① 1*DMX124 signal distributor host
③ 4*Kanon head male head
④1*Cannon head female head
⑥1*AC power cord
⑦1*Outer packing box
