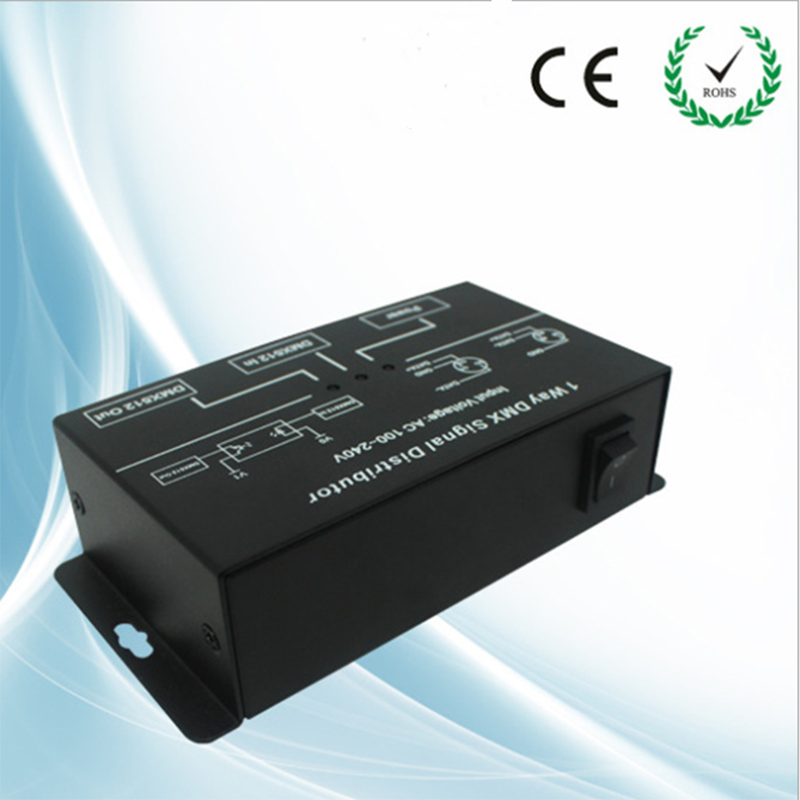

DMX124 Signal Distributor 1 Channel For DMX512 LED Strip Lights or DMX512 Decoder
DMX121 signal distributor is one of the DMX signal distributor series, which is specially used for shaping and amplifying DMX512 digital lighting control signal. The input and output interface adopts high-voltage isolation technology, which is suitable for the shaping and amplifying processing of DMX512 signal after distance transmission attenuation. And in the occasions where complete electrical isolation is required between the input and output interfaces, since the input and output interfaces are independently isolated, it is possible to avoid burning the precise digital lighting console due to problems such as control lines, decoders, computer lights, silicon boxes, etc. , To ensure the safe operation of the digital lighting console, but also to ensure that the DMX signal can be normally transmitted to various lighting equipment, thereby improving the reliability of the entire digital lighting control system.
Standards and Certifications
● Working temperature: -20-60 ℃
● Input voltage: AC 100 ～ 240V 50 ～ 60HZ
● Rated power: 2W
● Input signal: 1 DMX512 signal
● Output signal: 1 DMX512 signal output, the output port can connect up to 32 devices
● Isolation voltage between input and output interfaces:> 1000V
● Number of cascades: up to 16 signal amplifiers can be cascaded

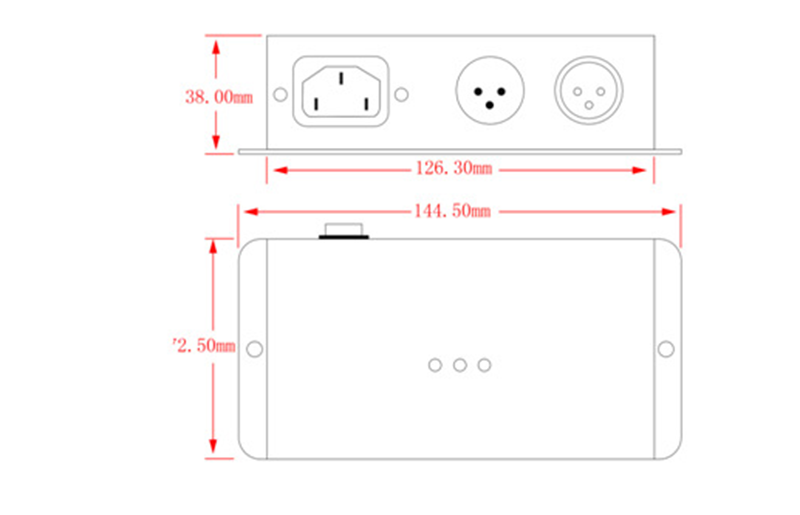

● Dimensions: L144.5 * W72.5 * H38mm
● Packing size: L175 * W133 * H58mm

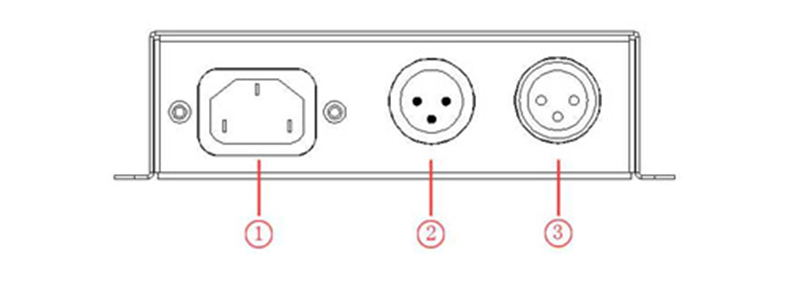

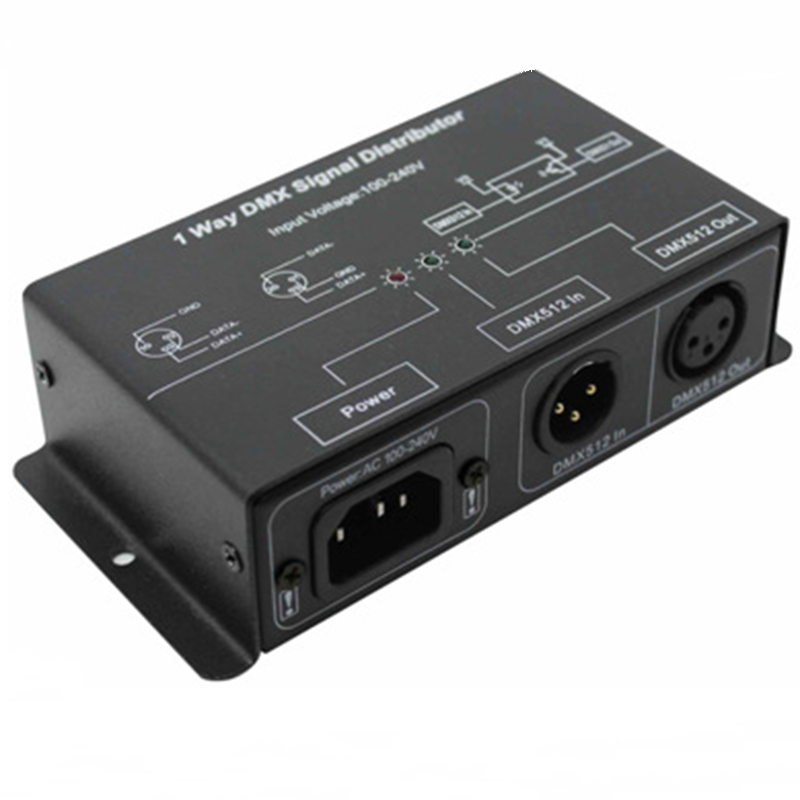

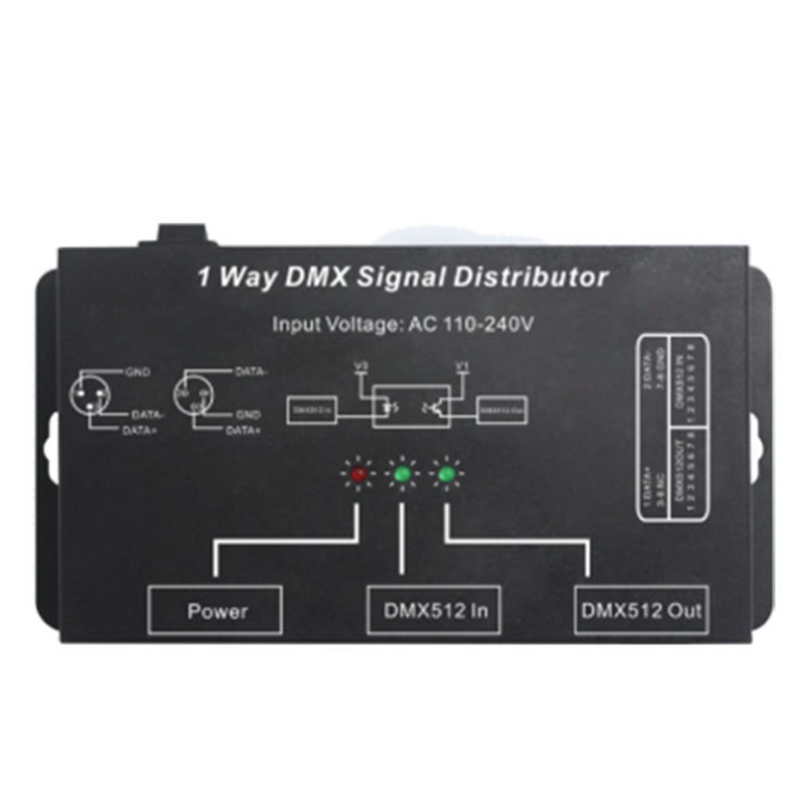

①AC100 ～ 240V power interface
②DMX signal XLR input interface
③DMX signal XLR output interface
Direction for Use
According to the panel of DMX amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires, and then connect power to DMX amplifier, it goes hand in hand with DMX decoder, please refer to the following typical applications.

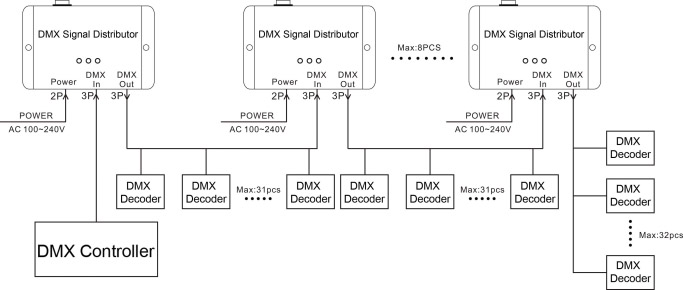

1 to 1 DMX signal distrbutor connection diagram:

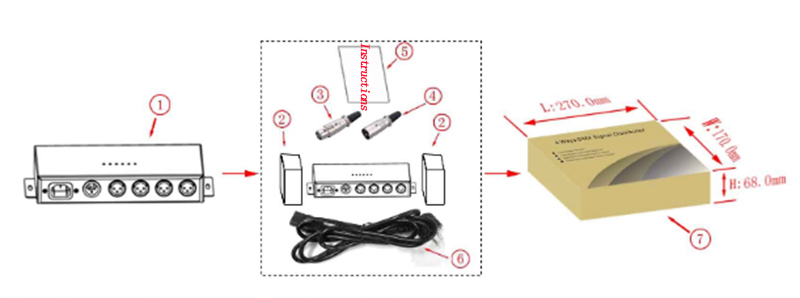

① 1*DMX124 signal distributor host
③ 4*Kanon head male head
④1*Cannon head female head

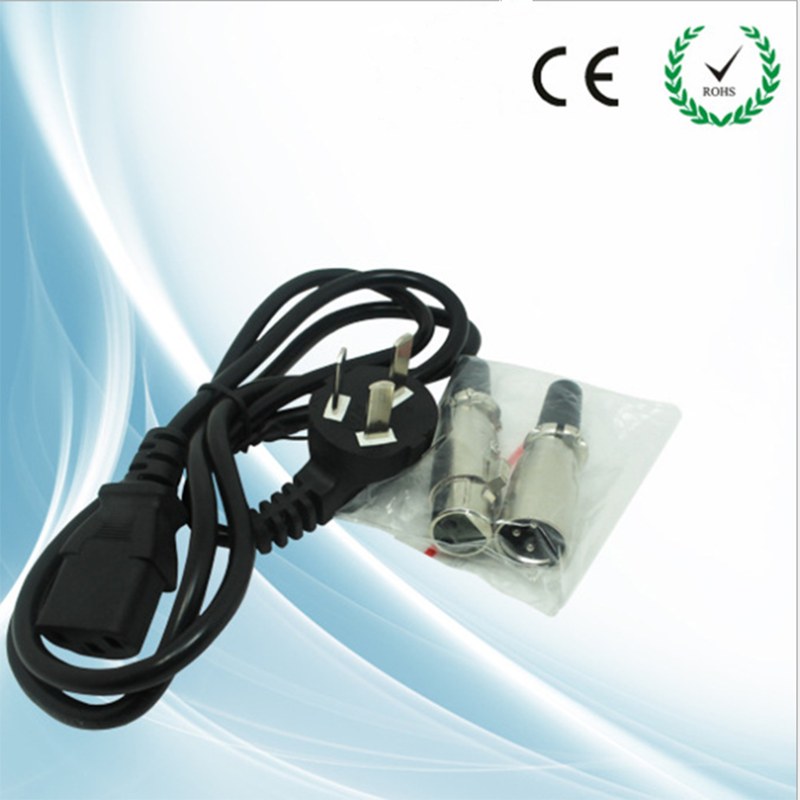

⑥1*AC power cord
⑦1*Outer packing box
