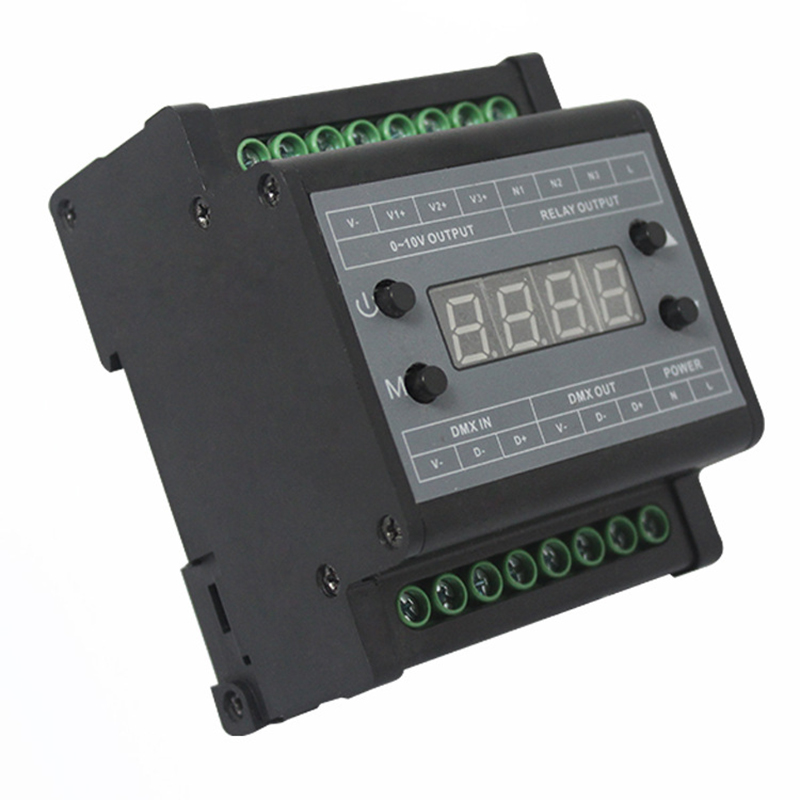

DMX 0-10V dimmer adopts industrial-grade advanced computer control chip, the shell adopts rail type, suitable for the industrial environment; increase the output of three-way relay power supply, as the input of 3 0-10V power supply, the dimming effect is better! It is used to control various lamps connected with 0-10V power supply. It has the advantages of convenient wiring, simple use and convenience; it can achieve dimming function according to the actual needs of customers.
Working temperature: -20-60℃
Power supply voltage: AC90～240V (50～60Hz)
Output: 3 circuits
Output signal: 0-10V

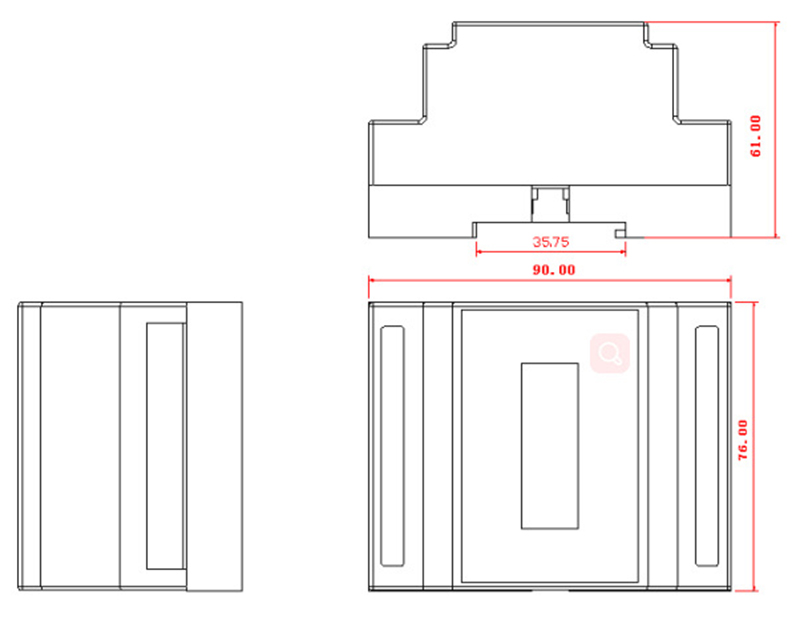

Dimensions: L90×W76×H61 mm
Packing size: L100×W80×H75 mm
Net weight: 265g
Gross weight: 390g
Static power consumption: <3W
0-10V output current: <50mA (each circuit)
The maximum output current of the relay: <5A (each circuit)

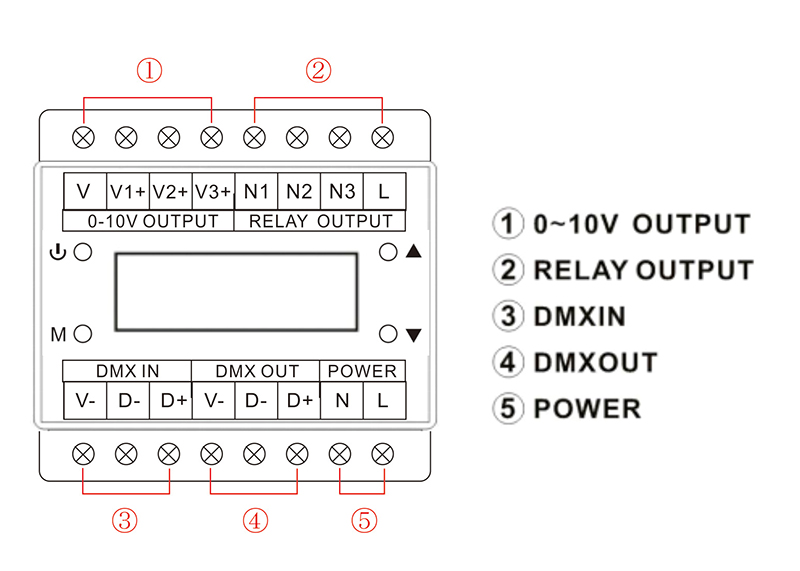

0-10V OUTPUT: Three 0-10V dimming signal output interfaces, the maximum current of each channel is 50mA.
RELAY OUTPUT: Three-way relay output interface, output voltage range: 90-240VAC, used as power supply input for 0-10V dimming power supply.
DMXIN: DMX signal input interface.
DMX OUT: DMX signal output interface.
POWER: Power input interface, input voltage range: 90-240VAC

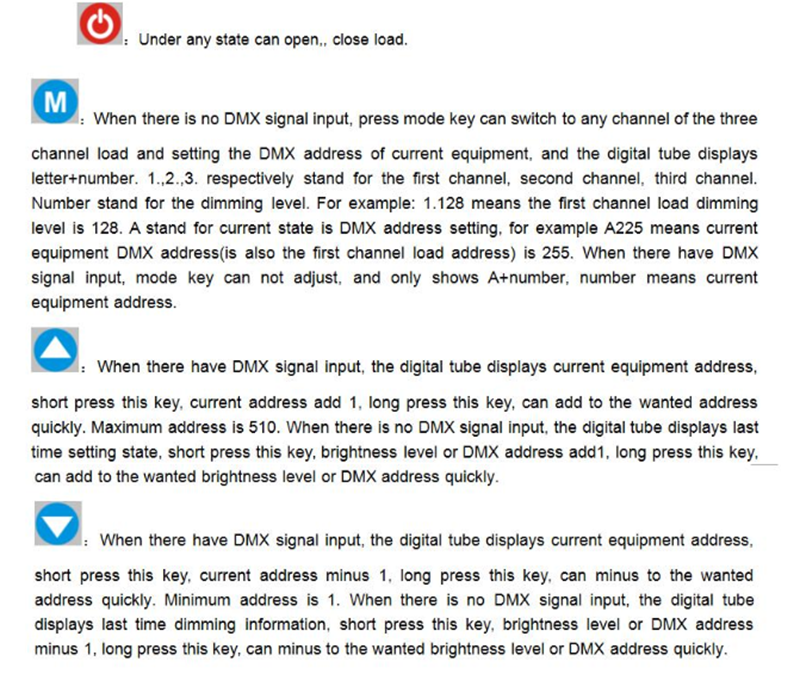

Instructions for use

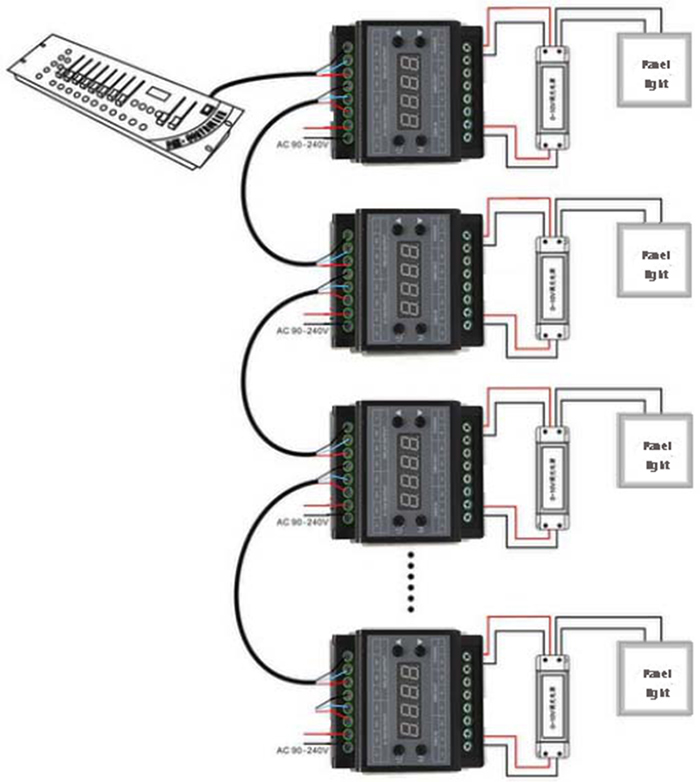

1. Connect the load line first, and then the power line; make sure there is no short circuit between the input and output connecting lines before powering on.
2. The power supply voltage range of the controller is 90-240VAC. Exceeding the voltage range may damage the controller.
|By : Jeff Leal Date Added: 09/19/2021|
|Installed 10 units for an auditorium lighting system. Easy to install/program. 1 of the 10 units have a single channel that won’t dim (on 100% all the time). We are looking for what happened.|
