DMX-SPI Decoder LT-DMX-2801(Replacement by LT-DMX-1809)
LT-DMX-2801 decoder converts DMX512 digital signal to SPI(TTL) digital signal. IT can control LED lights compatible with driving IC, and control every channel of the LED lights, realize the function of 0-100% dimming or editing all sorts of change effect.
DMX-SPI decoder is wildly used in LED flashing word string light, LED dot light, SMD strip, LED digital tubes, LED wall light, LED pixel screen, Hi-power spotlight, Floodlight, etc.

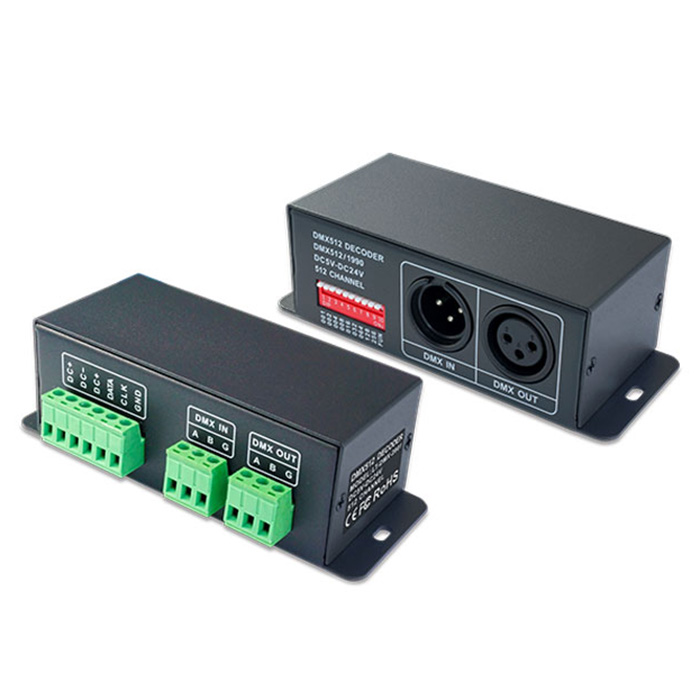

LT-DMX-2801 DMX-SPI Decoder
Input voltage: DC5V～DC24V
Input signal: DMX512
Compatible: IC WS2801, WS2803 Driving IC
Decoder channels: 512 DMX CH/unit
DMX512 socket: XLR-3, Green terminal
Dimming range: 0~100%
working temperature: -30℃～65℃
Package Size: L135×W70×H50mm
Weight (G.W): 300g
