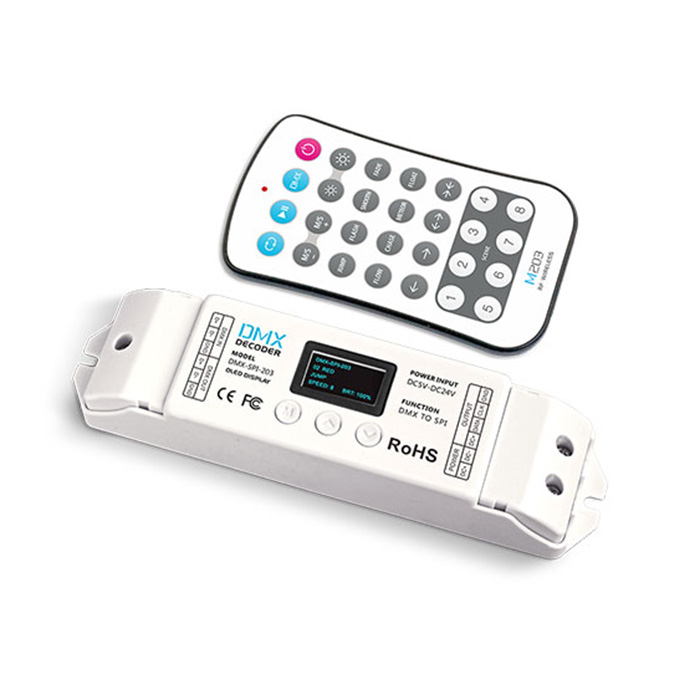

DC5~24V DMX-SPI Decoder DMX-SPI-203

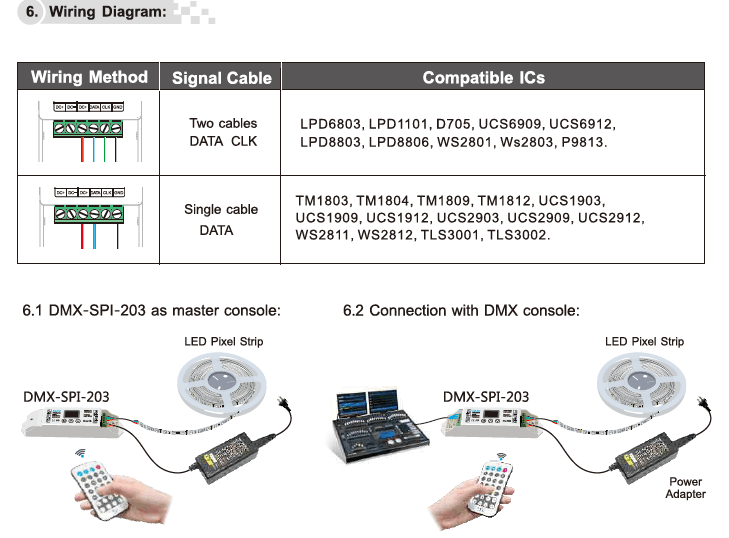

DMX-SPI-203 controls LED with the following compatible ICs: UCS6909,UCS6912,LPD8803,LPD8806,TM1803,TM1804,TM1809,TM1812,UCS1903, UCS1909, UCS1912, UCS2903,UCS2909, UCS2912, TLS3001, TLS3002, WS2801, WS2803, WS2811,WS2812,P9813
Supporting internationalstandardprotocolDMX512/1990interface,withDMXadministration mode to invoke the built-in functions for choosing the mode, speed, brightness, types, and direction changing by DMX512 console. Furthermore, it has the DMX decode mode, customers could use DMX512 console to program & control every channel of the LEDs with the compatible ICs listed above. 0-100% dimming range, program any lighting effect required

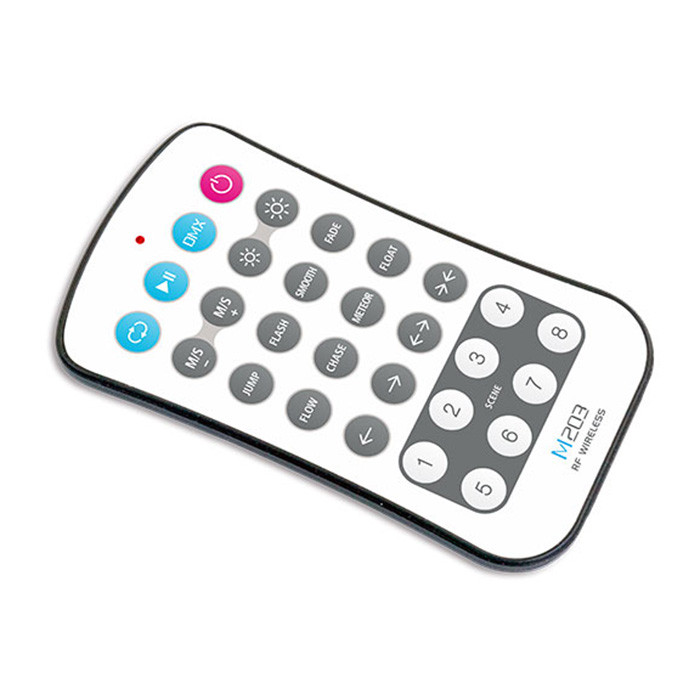

M203 Remote controller
Working voltage: DC3V(Battery CR2032 )
Working Frequency: 2.4GHz
Remote Distance: 30m
Working Temp.: -20℃~55℃
Weight (N.W.): 42g

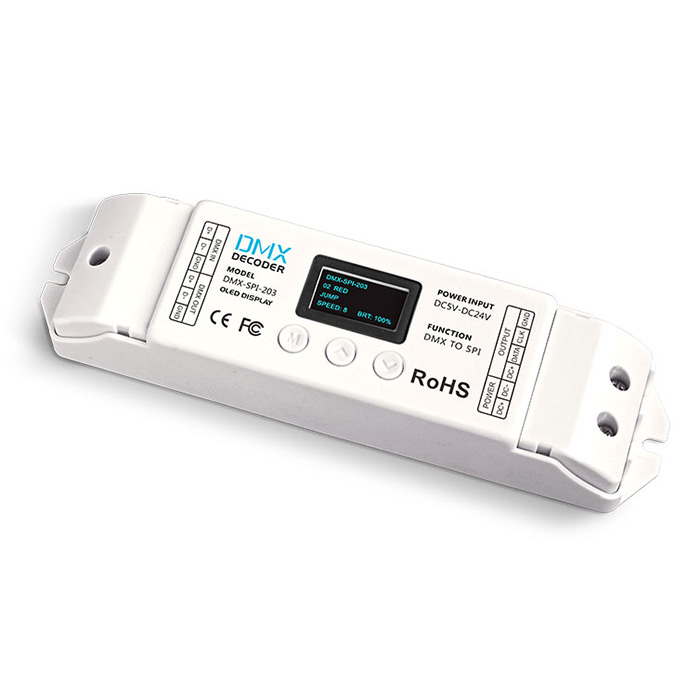

DMX-SPI-203 Receiving controller
Input power: 5~24VDC
Input signal: DMX512
Output signal: SPI(TTL)
Function Mode: 540 modes
Control Quantity: 1024 pixels
Virtual pixel: 1-6 times, Max 1024 pixel
Working Temperature: -30℃～65℃
