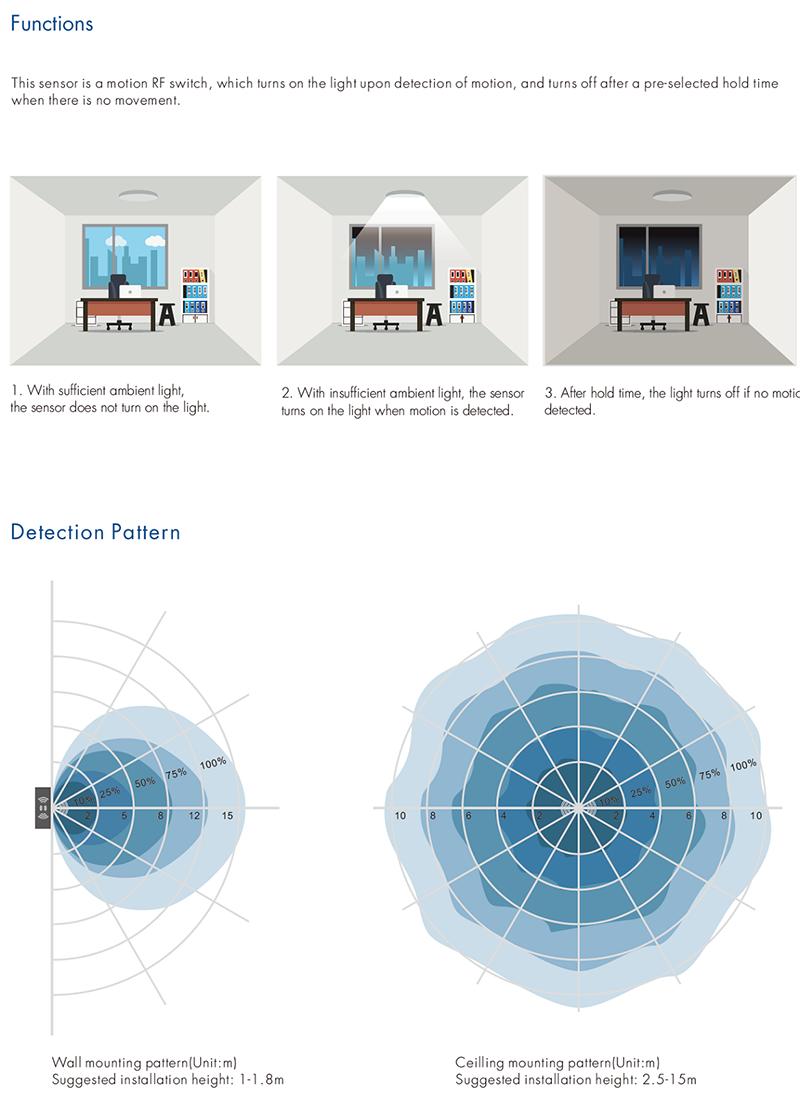

ER1 DC9-24V Microwave Sensor RF Switch
● Active microwave motion detectors with HF system 10.525GHz,
motion can be detected through plastic, glass and thin non-metal materials.
● Built-in motion sensor and daylight sensor.
● Powered by low voltage 12VDC, output RF 2.4G signal.
● Matched with RF LED controller or RF dimmable LED driver use.

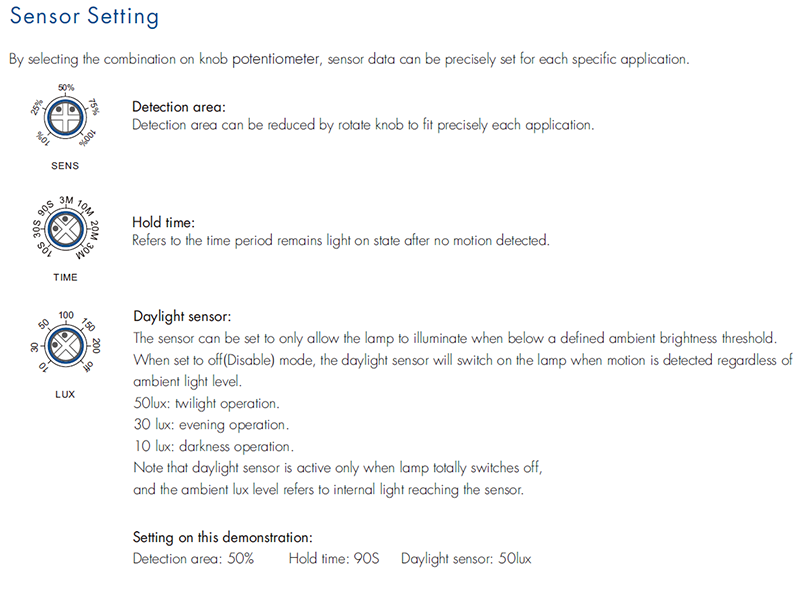

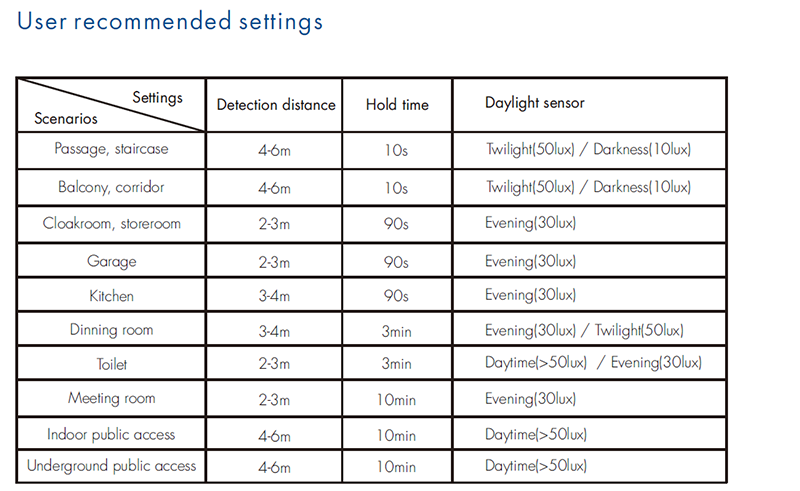

● Detection area, time delay and daylight threshold can be set via knob potentiometer.
● Wide detection area, range up to 20m in diameter.
● Surpport highter mounting height 15m Max.
Match Remote Control (two match ways)
The microwave motion sensor RF switch must be matched with one or multiple RF LED controller or RF dimmable LED driver,
including single color, dual color, RGB, RGBW, RGB+CCT or switch light type, turn on or turn off light by motion detection.
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Short press match key on the controller firstly, immediately press match key on the sensor. The LED indicator on th controller fast flash a few times means match is successful.
Press and hold match key on the controller for 5s to delete all match, The LED indicator fast flash a few times means match were deleted.
Use Power Restart
Switch off the power of the RF controller or LED driver, then switch on power again, immediately short press the match key on the sensor. The light blinks 3 times means match is successful.
Switch off the power of the RF controller or LED driver, then switch on power again, immediately long press the match key on the sensor 2s. The light blinks 5 times means match is deleted.
1. The sensor is designed for indoor use only.
The raining or wind blowing may trigger the microwave sensor even if without human motion when outdoor use.
2. The sensor should be installed by a professional electrician. please turn off the power before installing, wiring
and changing setting of the knob.
3. The distance between any two sensors should be at least 3m to avoid interference each other.
4. When the microwave sensor is installed in a metal lighting fixture or space with large reflector, for example
a warehouse with metal roof, the microwave signal will be reflected and cause the lights permanent illuminated
even if without motion signal. Please reduce the detection area to solve the problems.
5. Make sure the sensor not close to or be blocked by high density materials, such as metal, glass, concrete walls etc.
The materials will reduce or block microwave signal and cause false trigger.
6. The sensor which installed in the plastic and glass lampshade will reduce th sensitivity.
For every 3mm increase in thickness, the sensitivity will reduced by 20%.
7. The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection.
Ambient lux level could be different in different environment, weather, climate, time-of-delay and season.
8. Make sure there are no fans, DC motor, or other vibrating objects in installation area. The movement will trigger sensor as well
Working Voltage: DC9-24V
Output Signal: RF 2.4GHz
HF System: 10.525GHz
Power Consumption: ＜0.5W(Standby), ＜1W(Operation)
Detective Zone: Max.(DxH) 20 x 15m
Hold Time: 10s/30s/90s/3min//10min/20min/30min
Mounting Height:15m Max.
