DMX700 DC12V-24V DMX512 Decoder, DMX 3 Channel LED Rail Decoder

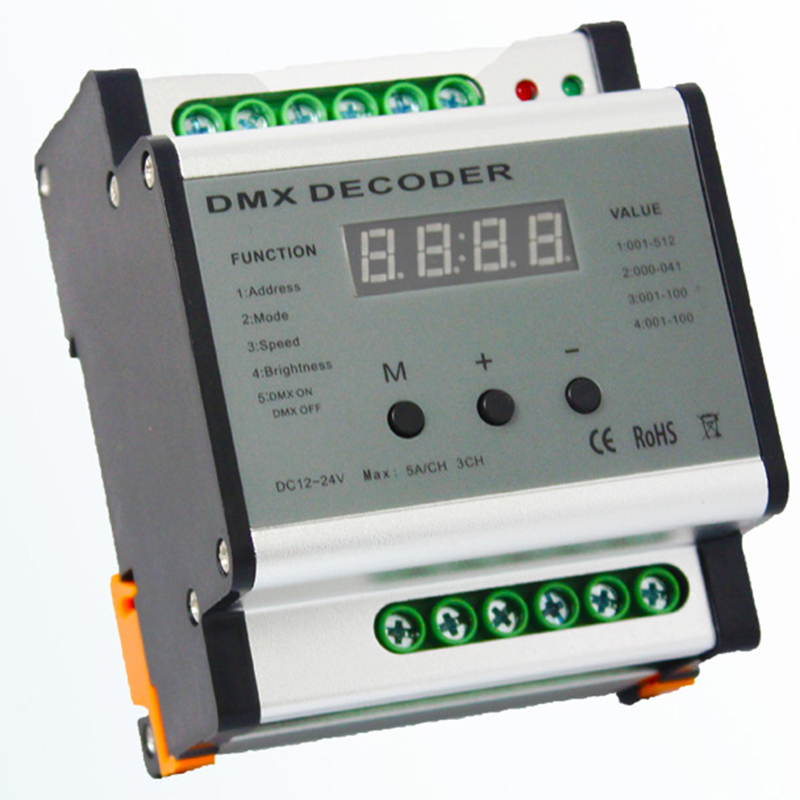

DMX 3-channel guide rail decoder is a new high-end DMX decoder newly developed by our company. It adopts an aluminum alloy shell and has a beautiful and fashionable appearance. Adopt button and digital tube to configure various parameters, which greatly facilitates the user's use. It is used to analyze the DMX512 signal and control various lamps with LED as the light source, such as point light sources, soft light bars, wall washer lights, panel lights, etc., and has built-in 42 modes for offline use. It has the advantages of convenient wiring and simple use.
Technical Parameters
Working Temperature: -20-60℃
Power Supply Voltage: DC12~24V
Output: 3 Channel
Connection Method: Common anode
Dimensions: L72*W90*H58mm
Packing Size: L100*W90*H70mm
Net Weight: 240g
Gross Weight: 350g
Static Power Consumption: <3W
Output Current: <5A (each circuit)
Output Power: 12V:<180W, 24V:<360W

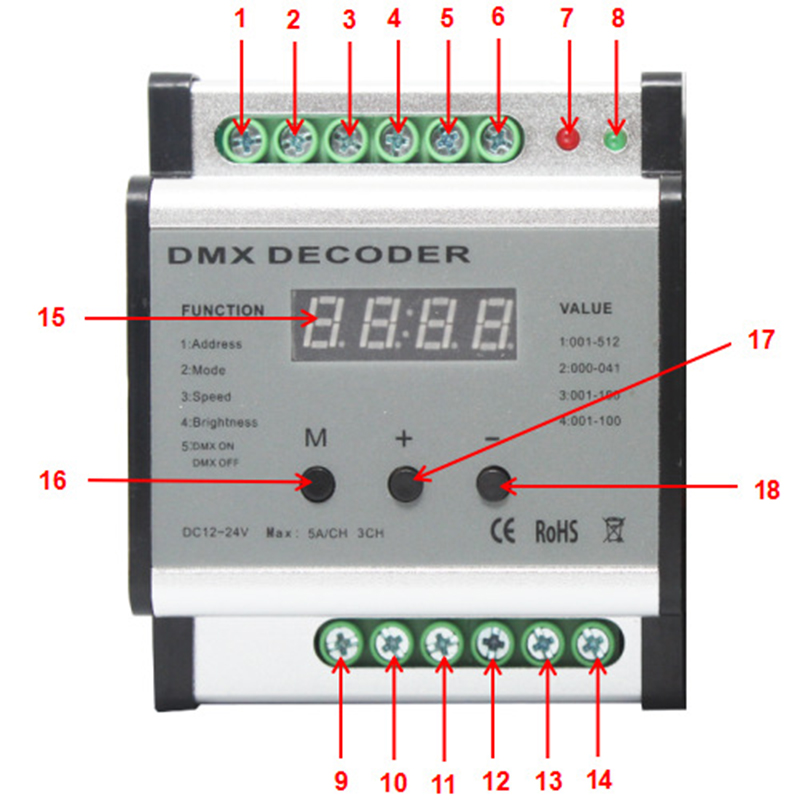

Interface description
|
Label |
Features |
Label |
Features |
|
1 |
DMX output GND |
10 |
G channel |
|
2 |
DMX output D+ |
11 |
R channel |
|
3 |
DMX output D- |
12 |
Power supply V+ |
|
4 |
DMX input GND |
13 |
Power supply V+ |
|
5 |
DMX input D+ |
14 |
Power supply V- |
|
6 |
DMX input D- |
15 |
Nixie tube display |
|
7 |
Power Indicator |
16 |
Menu button |
|
8 |
DMX signal indicator |
17 |
Value increase button |
|
9 |
Channel B |
18 |
Value minus button |
Key function description
M: Menu button, press once to enter the next menu option
+: Click to increase the value displayed by the current nixie tube by 1, long-press to increase the value quickly
-: Click once to decrease the value displayed by the current digital tube by 1, and long press to quickly decrease the value
The menu description and its worthy range are as follows:
|
Menu |
Value Range |
Explanation |
|
Address (A) |
1-512 |
Decoder address |
|
Mode (M) |
0-41 |
Built-in mode when not receiving DMX data |
|
Speed (S) |
1-100 |
Speed of built-in mode |
|
Brightness (b) |
1-100 |
Built-in mode brightness |
|
DMX reception (o) |
0-1 |
0: DMX signal is not received 1: DMX signal is received |
Standard change function
|
Serial number |
Mode |
Remarks |
Serial number |
Mode |
Remarks |
|
0 |
Static black silk |
Speed is not adjustable, brightness is not adjustable |
21 |
Red green gradient |
Adjustable speed, brightness is not adjustable |
|
1 |
Static red |
Speed is not adjustable, brightness is adjustable |
22 |
Red flash |
Adjustable speed and brightness |
|
2 |
Static green |
Speed is not adjustable, brightness is adjustable |
23 |
Green flash |
Adjustable speed and brightness |
|
3 |
Static blue |
Speed is not adjustable, brightness is adjustable |
24 |
Blue flash |
Adjustable speed and brightness |
|
4 |
Static yellow |
Speed is not adjustable, brightness is adjustable |
25 |
Yellow flash |
Adjustable speed and brightness |
|
5 |
Static purple |
Speed is not adjustable, brightness is adjustable |
26 |
Purple flash |
Adjustable speed and brightness |
|
6 |
Static cyan |
Speed is not adjustable, brightness is adjustable |
27 |
Cyan flash |
Adjustable speed and brightness |
|
7 |
Static white |
Speed is not adjustable, brightness is adjustable |
28 |
White flash |
Adjustable speed and brightness |
|
8 |
Three-color jump |
Adjustable speed and brightness |
29 |
Tricolor flash |
Adjustable speed and brightness |
|
9 |
Seven colors jump |
Adjustable speed and brightness |
30 |
Seven-color flash |
Adjustable speed and brightness |
|
10 |
Three-color gradient |
Adjustable speed, brightness is not adjustable |
31 |
Three-color flicker |
Adjustable speed and brightness |
|
11 |
Seven color gradient |
Adjustable speed, brightness is not adjustable |
32 |
Seven colors flicker |
Adjustable speed and brightness |
|
12 |
Red strobe |
Adjustable speed and brightness |
33 |
Red breath gradient |
Adjustable speed, brightness is not adjustable |
|
13 |
Green strobe |
Adjustable speed and brightness |
34 |
Green breathing gradient |
Adjustable speed, brightness is not adjustable |
|
14 |
Blue strobe |
Adjustable speed and brightness |
35 |
Blue breathing gradient |
Adjustable speed, brightness is not adjustable |
|
15 |
Yellow strobe |
Adjustable speed and brightness |
36 |
Yellow breathing gradient |
Adjustable speed, brightness is not adjustable |
|
16 |
Purple strobe |
Adjustable speed and brightness |
37 |
Purple breath gradient |
Adjustable speed, brightness is not adjustable |
|
17 |
Cyan strobe |
Adjustable speed and brightness |
38 |
Cyan breathing gradient |
Adjustable speed, brightness is not adjustable |
|
18 |
White strobe |
Adjustable speed and brightness |
39 |
White breathing gradient |
Adjustable speed, brightness is not adjustable |
|
19 |
Red blue gradient |
Adjustable speed, brightness is not adjustable |
40 |
Three-color breathing gradient |
Adjustable speed, brightness is not adjustable |
|
20 |
Blue-green gradient |
Adjustable speed, brightness is not adjustable |
41 |
Seven-color breathing gradient |
Adjustable speed, brightness is not adjustable |

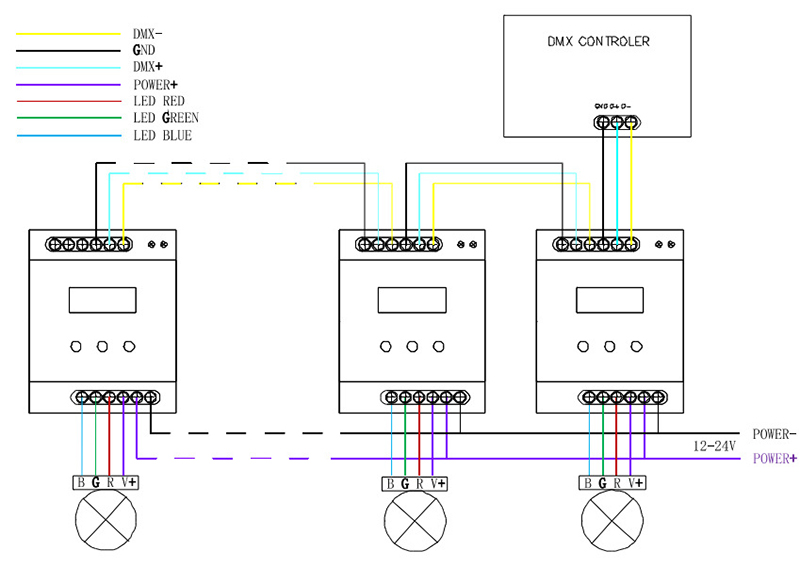

Typical application
Precautions
1 Connect the load cable first, and then the power cable; make sure there is no short circuit between the input and output cables before powering on.
2 The controller's power supply voltage range is DC12 ~ 24V. Exceeding the voltage range may burn the decoder.
