Wardrobe Closet Hanging Rod Aluminum LED Channel For 12mm 5050 LED Light Strips

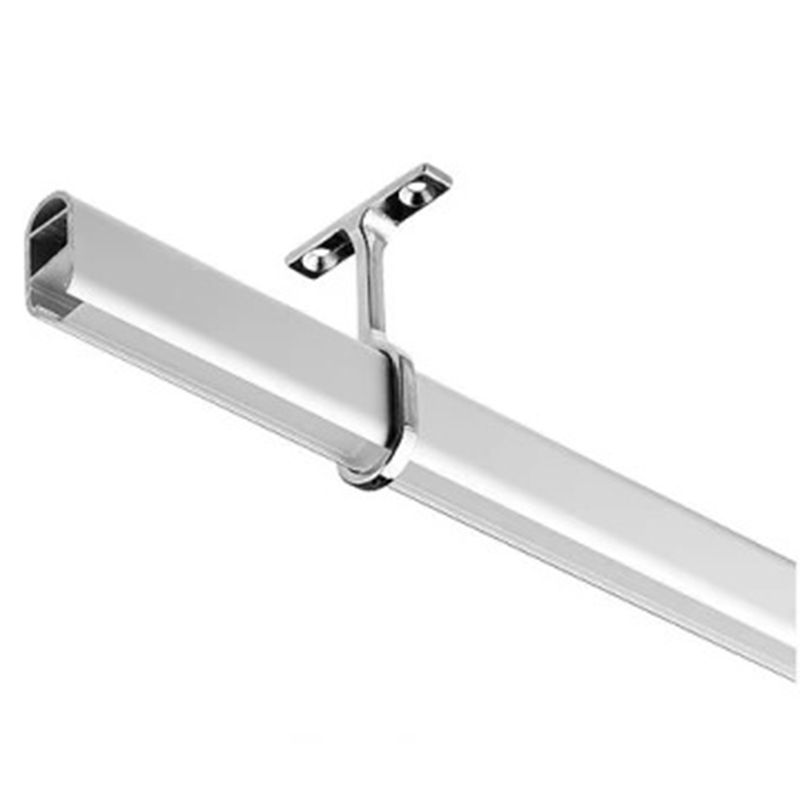

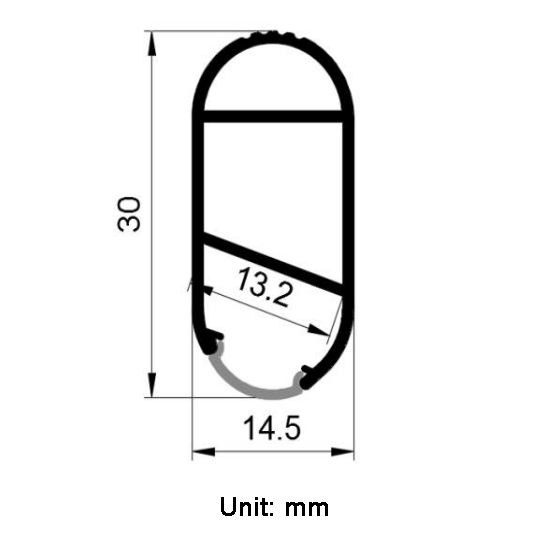

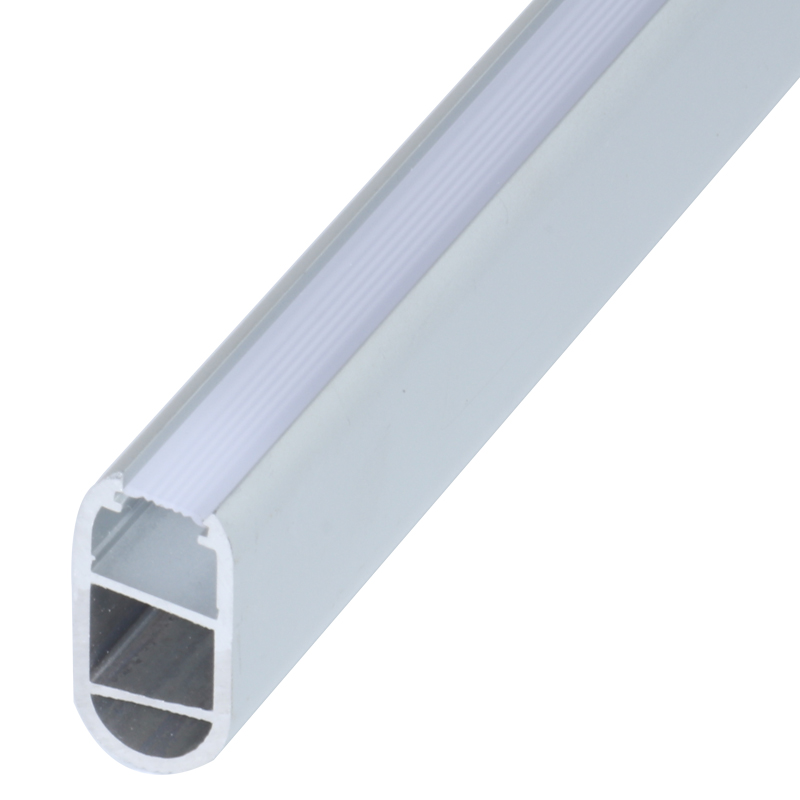

Highlight your wardrobe with this closet hanger rod LED aluminum channel for your led light strip. Made of 6063-T5 high-quality aluminum alloy, the clothes rod LED profile with PC LED light diffuser covers soft and smooth LED light output. With 13mm/0.5in inner width, this aluminum led channel hanging rod for closet is suitable for 5050 white led strip lights. The silver, white, or black closet rod aluminum led light channel with end caps and mounting clips to make the installation more easily, ideal for adding light to your wardrobe or closet.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

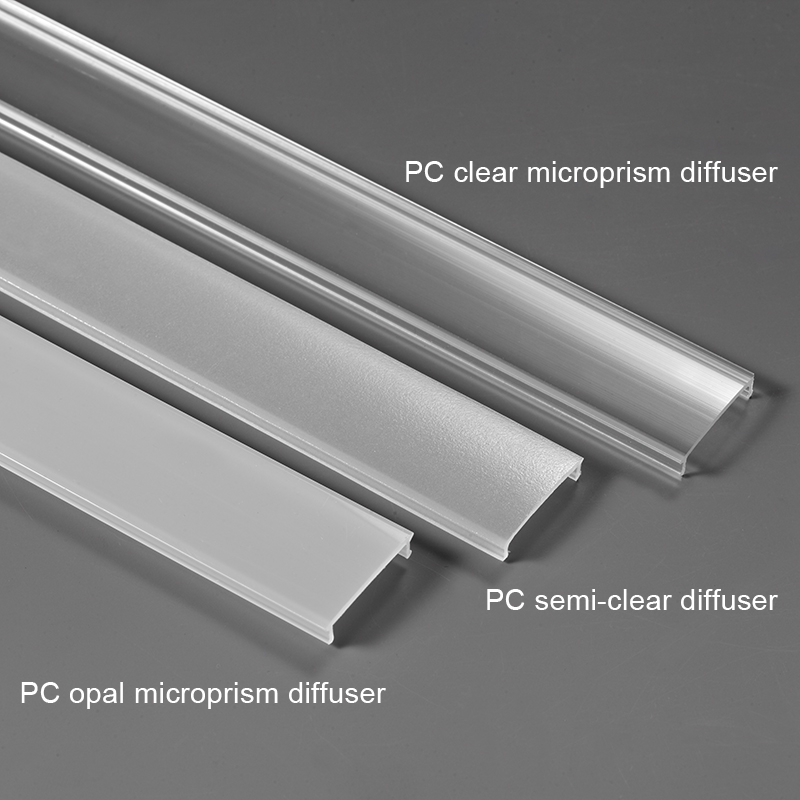

|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

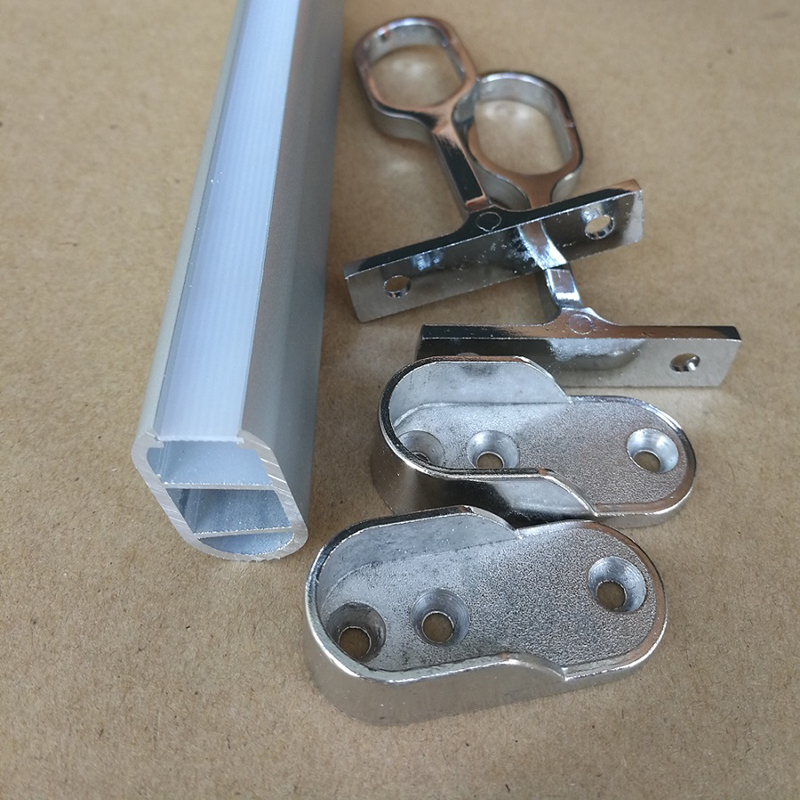

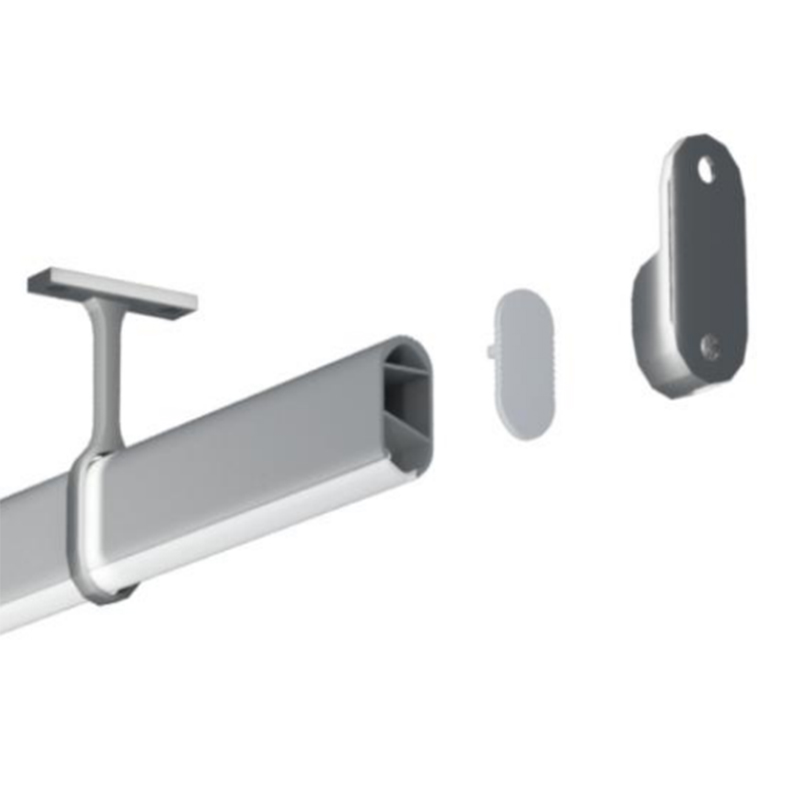

|Accessory||End cap without hole, end cap with wire hole, mounting clips, brackets|
|Apply to||12mm 5050/2216/5630/5730 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel

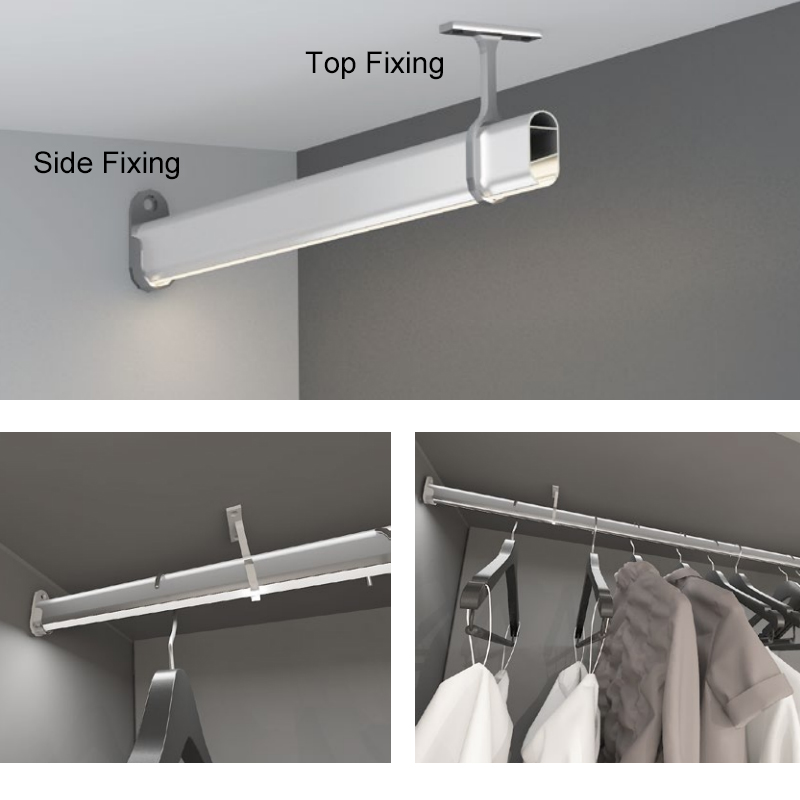

Home lighting: wardrobe, cabinet, furniture, etc.
Indoor illumination, Interior light design
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Backlight or supplementary lighting
