Product Information

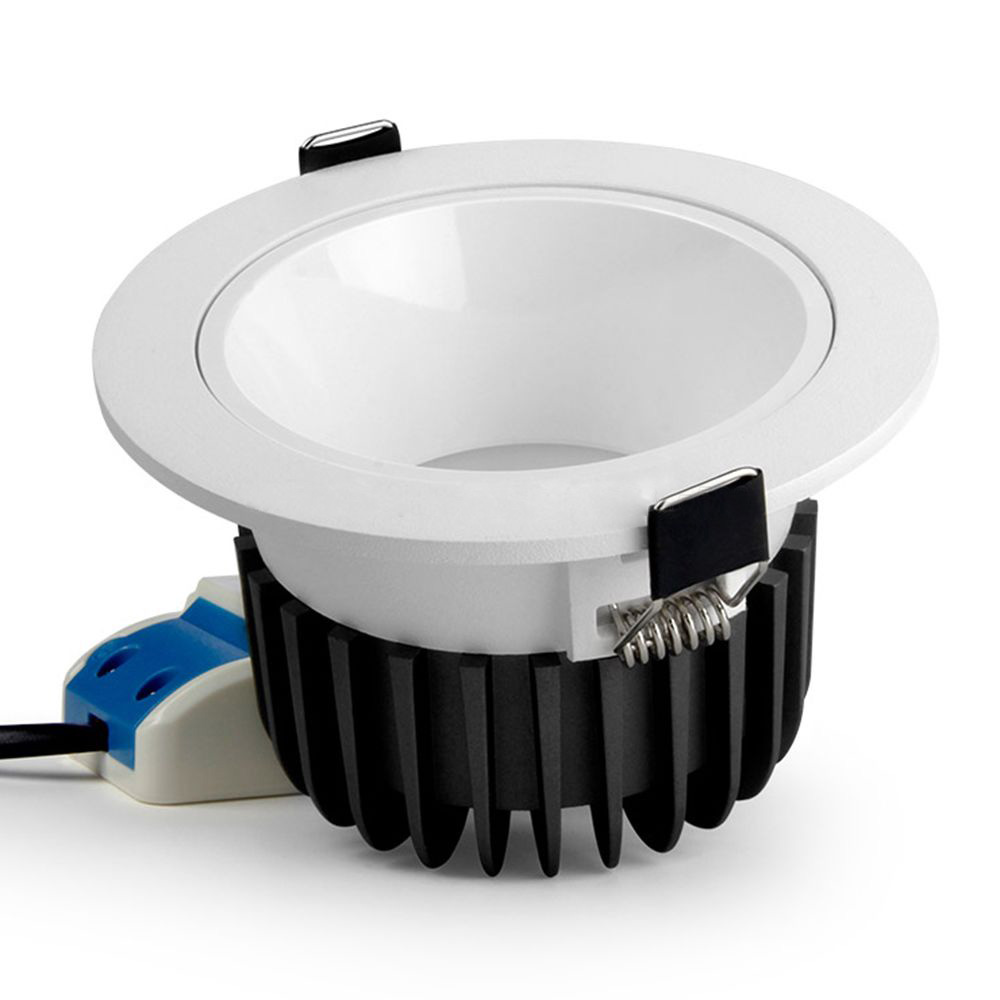

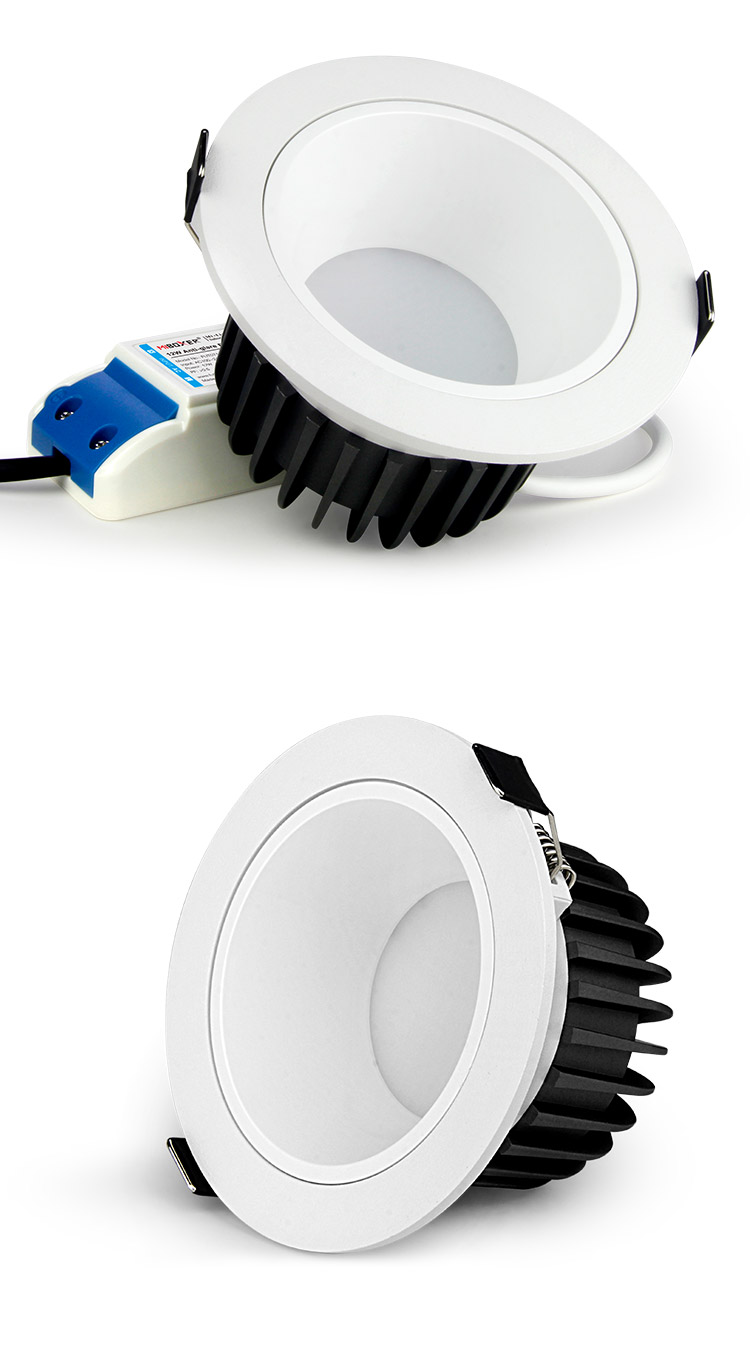

Create a comfortable and dynamic lighting environment with the MiBoxer FUT071 12W Anti-Glare RGB+CCT LED Downlight. Engineered for superior visual comfort, its specialized anti-glare optics reduce eye strain, making it an ideal recessed downlight led for living rooms, offices, and retail spaces. This 12W fixture delivers a powerful 800 lumens of flicker-free light while offering a complete spectrum of color control. Choose from over 16 million vibrant colors or adjust the white light from a cozy 2700K warm white to a crisp 6500K cool white. With seamless dimming and long-range wireless control, the FUT071 provides a sophisticated and versatile lighting solution for any modern interior.
Key Features
Advanced Anti-Glare Optics
Features a deeply recessed light source and specialized lens to minimize direct glare, ensuring soft, comfortable illumination that reduces eye fatigue.
Full Spectrum RGB+CCT
Access 16 million colors and a tunable white range from 2700K to 6500K, allowing you to create the perfect ambiance for any mood or occasion.
Seamless Wireless Control
Utilizes 2.4GHz RF technology for responsive control up to 30 meters away, allowing for dimming, color changes, and zone grouping with a compatible MiBoxer remote or app.
High-Efficiency Illumination
Produces a bright 800 lumens of light using only 12 watts of power, offering an energy-efficient alternative to traditional halogen downlights.
Universal Voltage Compatibility
The AC100-240V wide voltage input makes it suitable for residential and commercial electrical systems worldwide without needing a separate transformer.
Durable & Long-Lasting
Engineered for a lifespan of 50,000 hours, providing years of reliable, maintenance-free performance.
Technical Highlights
- High Power Factor (PF) of >0.5 for efficient energy use.
- A Color Rendering Index (CRI) of over 80 ensures colors appear natural and vibrant.
- Focused 60° beam angle is perfect for accent and general lighting tasks.
- Stable 2.4G RF transmission for reliable, interference-free control.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 12W Anti-glare RGB+CCT LED Downlight |
| Model No. | FUT071 |
| Power | 12W |
| Input Voltage | AC100~240V 50/60Hz |
| Color Temperature (CCT) | 2700K~6500K |
| Luminous Flux | 800LM |
| Luminous Efficiency | 67LM/W |
| Color Rendering Index (CRI) | >80 |
| Power Factor (PF) | >0.5 |
| Lifespan | 50,000 hours |
| Beam Angle | 60° |
| Control Technology | 2.4GHz RF Wireless |
| Control Distance | 30m (98 ft) |
| Housing Material | Aluminum + PC Cover |
| Working Temperature | -20~60°C |
Ideal Lighting for Modern Spaces
How to Install & Use This Light
- Safety First: Always turn off the main power at the circuit breaker before beginning installation.
- Prepare Opening: Ensure you have a circular ceiling cutout that matches the downlight's housing dimensions. Refer to the datasheet in the Downloads section for the precise cutout diameter.
- Wiring: Connect the AC live and neutral wires from your mains supply to the corresponding input terminals on the downlight's integrated driver.

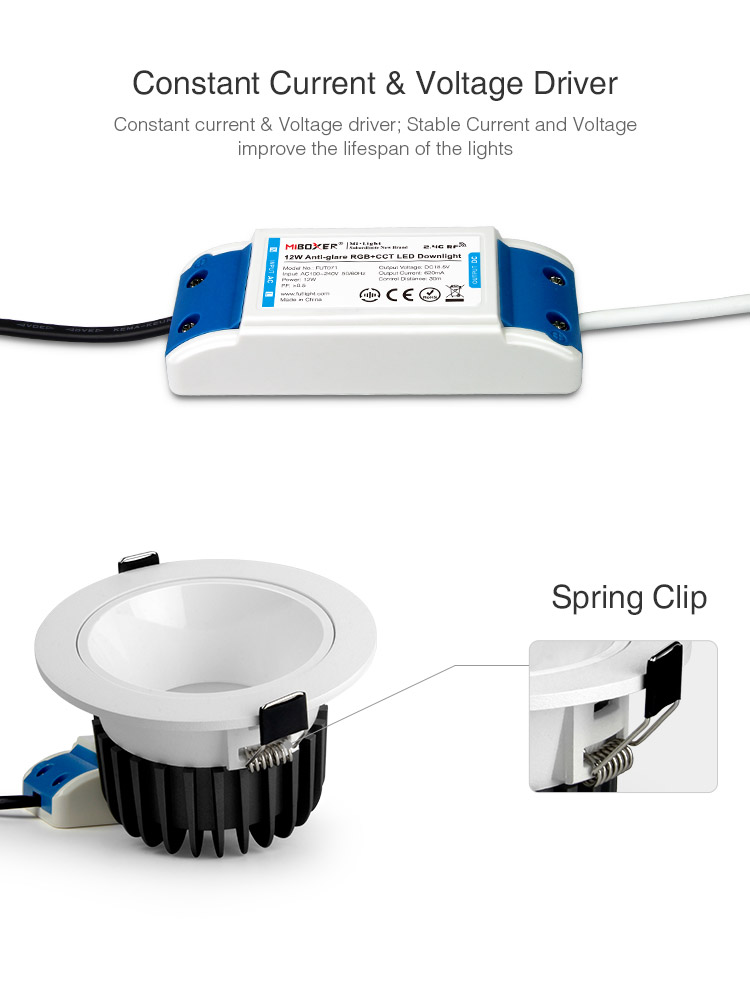

- Installation: Gently push the spring-loaded clips upward and insert the downlight into the ceiling cutout. The clips will spring back to hold the fixture securely in place.
- Pairing for Control: Restore power. To pair with a MiBoxer remote, press the desired zone 'ON' button on the remote within 3 seconds of turning on the light. The light will blink to confirm successful pairing.
- Testing: Use your remote to test all functions, including dimming, color changing, and CCT adjustments.
- This fixture is designed for recessed installation in standard ceiling materials.
- Control requires a compatible MiBoxer 2.4G RF remote control or a WiFi gateway for app/voice control (sold separately).
- Ensure the 2.4GHz frequency band is enabled on your router for smart control via a WiFi gateway.
- Do not install in locations with temperatures exceeding the -20~60°C operating range.
What's in the Box
- ✓1 x FUT071 12W Anti-glare RGB+CCT LED Downlight
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions

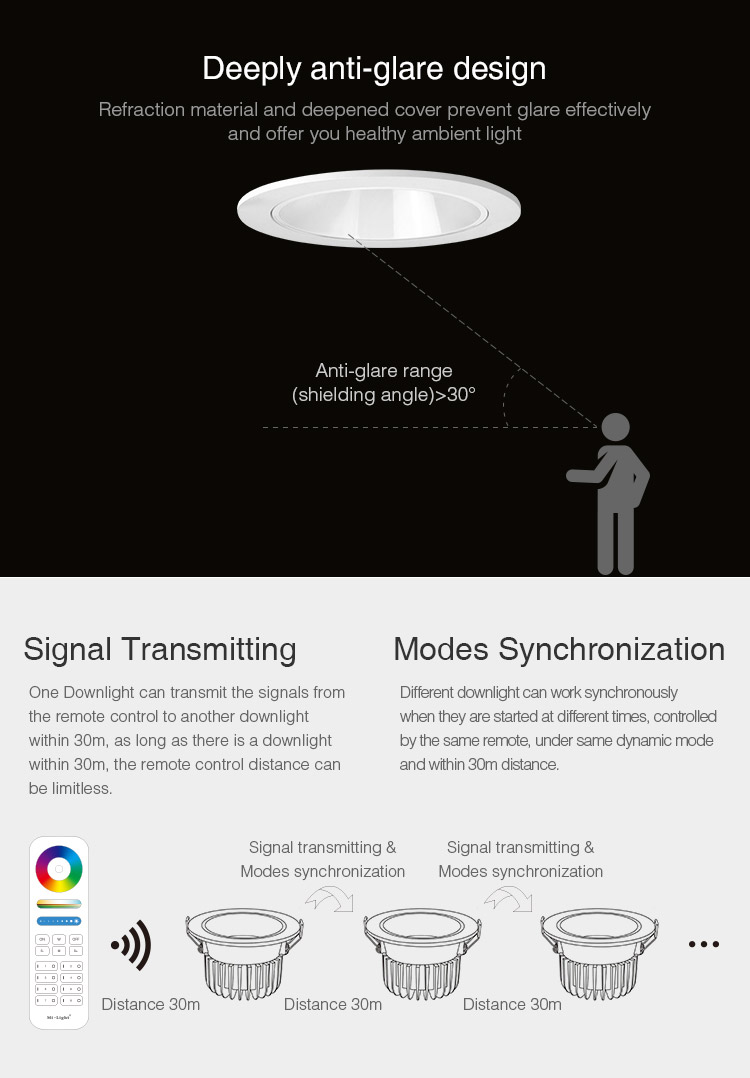

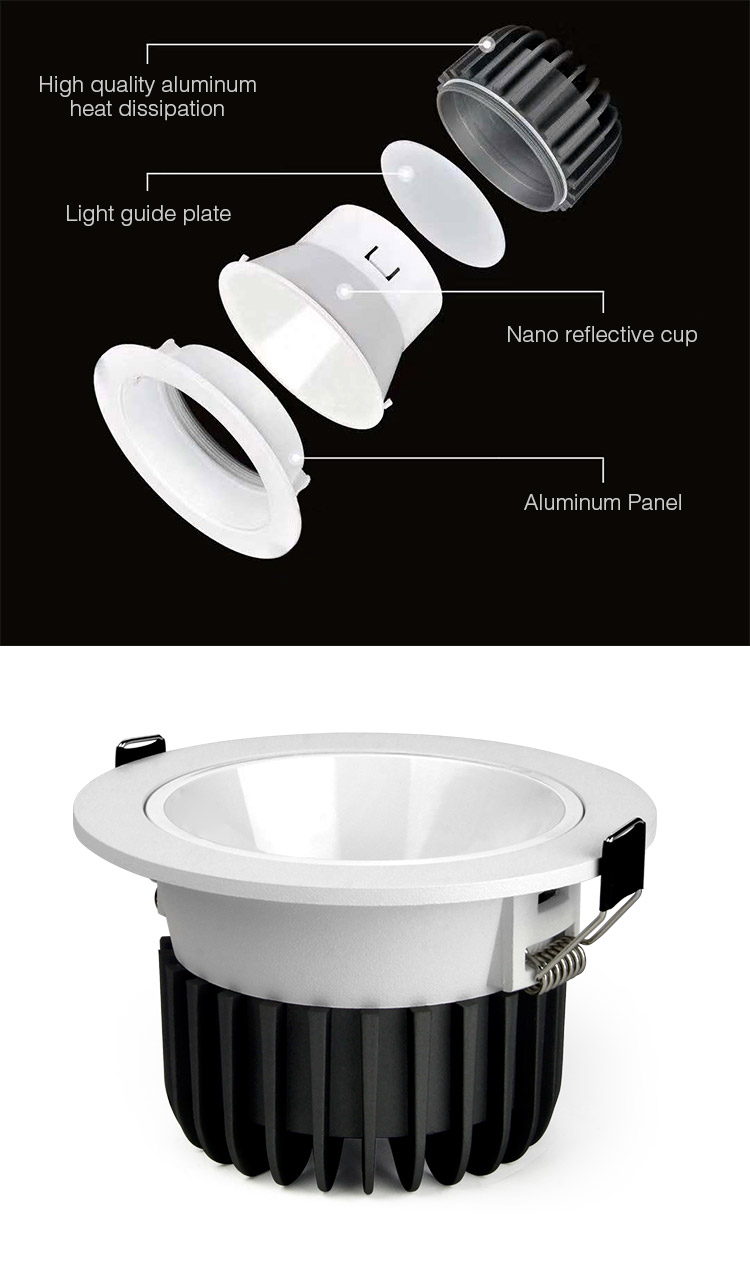

Q: What makes this an 'anti-glare' downlight?
A:The FUT071 features a deeply recessed LED chip and a specialized optical lens. This design prevents you from seeing the raw light source directly, significantly reducing harsh glare and creating a softer, more comfortable light for your eyes.
Q: What do I need to control this downlight?
A:You will need a compatible MiBoxer 2.4G RF Remote Control. For smartphone app and voice control (Amazon Alexa, Google Assistant), you'll also need a MiBoxer WL-Box1 or WL-Box2 WiFi Gateway.
Q: Can I control multiple FUT071 downlights together?
A:Yes. You can pair multiple FUT071 downlights to the same zone on a remote control, allowing them to be controlled simultaneously as a single group.
Q: Is this downlight dimmable?
A:Yes, it offers smooth, flicker-free dimming from 1% to 100% brightness when used with a compatible MiBoxer remote control or app. It is not compatible with traditional wall-mounted TRIAC dimmers.
Q: Will this led downlight have flickering issues?
A:No. The FUT071 is engineered with a high-quality driver and stable power components to provide smooth, flicker-free illumination across all brightness levels and colors, which is essential for preventing eye strain.

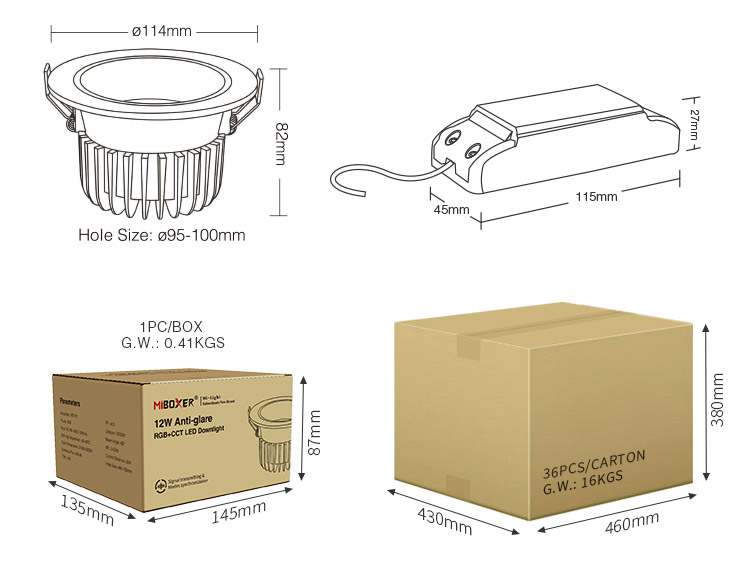

Q: What is the required cutout size for installation?
A:For the precise diameter of the ceiling cutout required for this fixture, please refer to the technical drawing on the product datasheet, available in the 'Downloads & Documents' section below.
Q: What does RGB+CCT mean?
A:RGB+CCT combines two technologies. RGB allows you to create over 16 million different colors. CCT (Correlated Color Temperature) allows you to adjust the white light from a warm, cozy yellow (2700K) to a cool, crisp blue-white (6500K).
