Product Information
Experience superior visual comfort with the MiBoxer FUT070 6W Anti-Glare RGB+CCT LED Downlight. Specifically engineered to reduce eye strain, this recessed downlight features a deep-set light source that provides soft, diffused illumination without the harshness of traditional fixtures. It's the perfect solution for creating sophisticated and comfortable environments. Beyond its glare-control, the FUT070 offers complete lighting versatility with full RGB color-changing capabilities and tunable white CCT from warm 2700K to cool 6500K. Whether you're setting the mood for a relaxing evening, focusing on a task, or highlighting architectural details, this compact and efficient 6W downlight provides dynamic control and exceptional light quality for any modern space.
Key Features

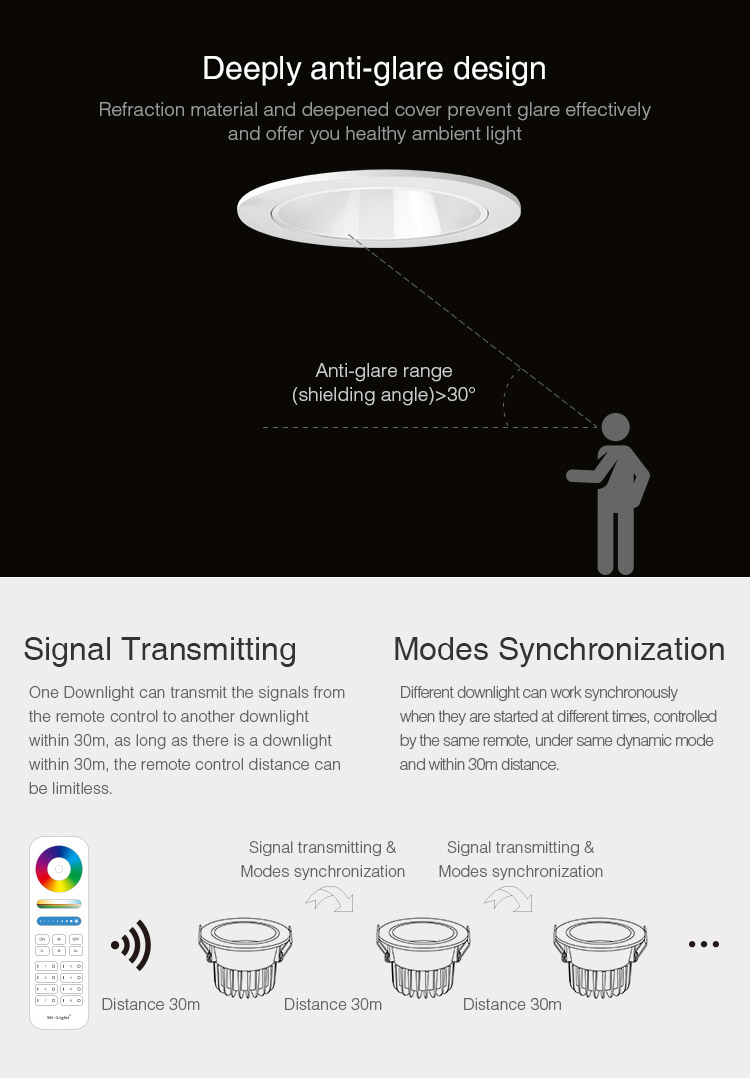

Advanced Anti-Glare Design
Features a deeply recessed LED and specially designed reflector to minimize direct glare, reduce eye strain, and provide superior visual comfort.
Full Spectrum Color Control
Choose from over 16 million vibrant colors (RGB) and adjust the white light from a cozy 2700K warm white to a crisp 6500K cool white (CCT).
Seamless 2.4G RF Wireless Control
Operate your lighting from up to 30 meters away using compatible MiBoxer remotes, wall panels, or integrate with a gateway for smartphone app and voice control.
Efficient & Durable Performance
Consumes only 6W to produce 400 lumens of bright, flicker-free light and is rated for an exceptionally long lifespan of 50,000 hours.
Universal Voltage Compatibility
The wide AC100-240V input range ensures reliable performance and easy installation in residential and commercial applications worldwide.
Technical Highlights

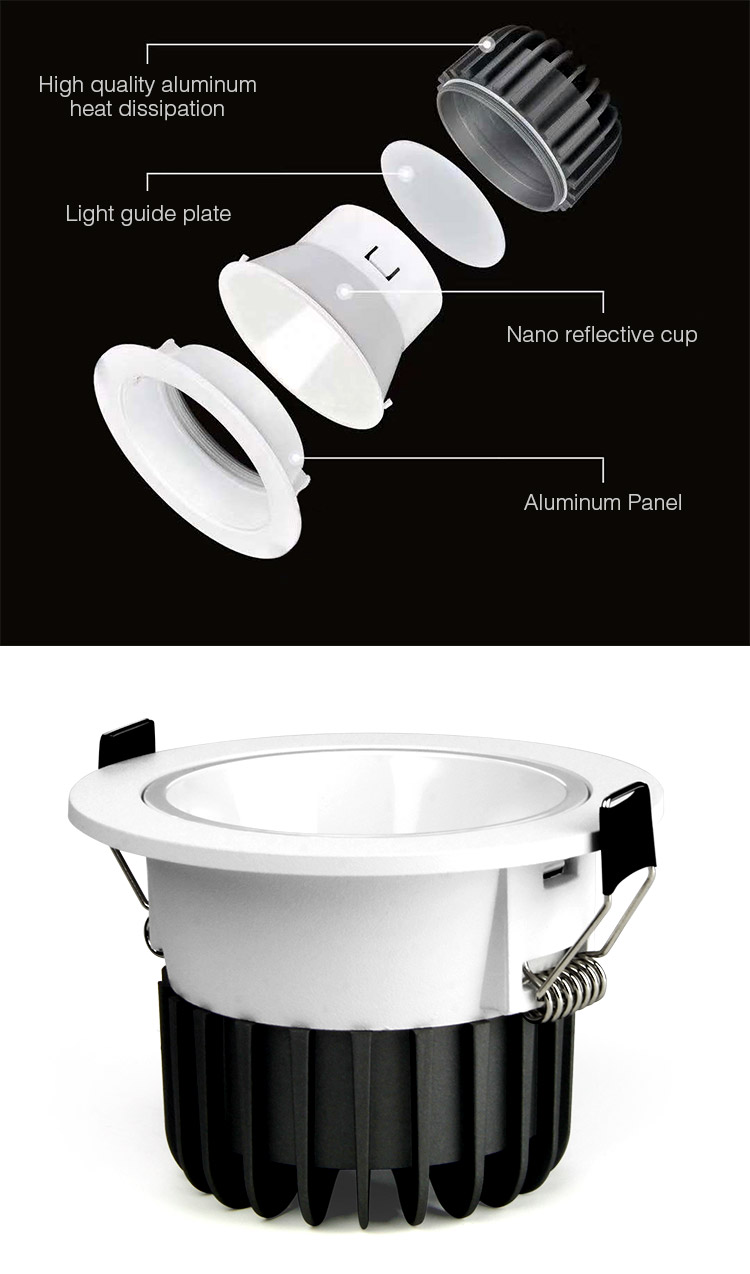

- Engineered with a recessed light source and deep reflector cup to minimize direct glare and create soft, diffused illumination.
- Utilizes high-quality SMD LEDs for consistent color rendering (CRI >80) and stable, flicker-free performance.
- Power Factor >0.5 ensures efficient energy conversion, reducing waste.
- Robust thermal management design contributes to a 50,000-hour operational lifespan.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 6W Anti-glare RGB+CCT LED Downlight |
| Model No. | FUT070 |
| Power | 6W |
| Input Voltage | AC100~240V 50/60Hz |
| Color Temperature (CCT) | 2700K~6500K (Tunable White) |
| Color Output | RGB + CCT |
| Luminous Flux | 400LM |
| Luminous Efficiency | 66 LM/W |
| Color Rendering Index (CRI) | >80 |
| Power Factor (PF) | >0.5 |
| Lifespan | 50,000 hours |
| Beam Angle | 60° |
| Control Technology | 2.4GHz RF |
| Control Distance | 30m |
| Material | Aluminum + PC Cover |
| Working Temperature | -20~60°C |
Ideal Applications
How to Install & Use This Downlight
- IMPORTANT: Ensure the main power is switched off at the circuit breaker before starting installation.

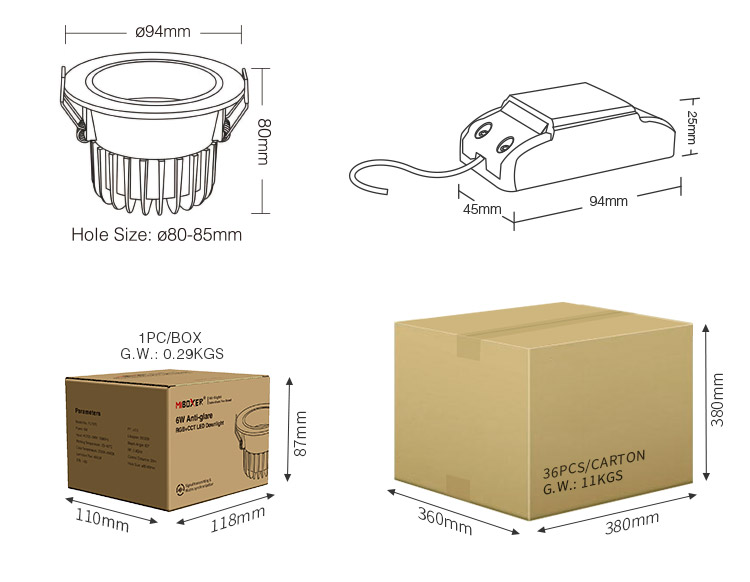

- Prepare the ceiling by cutting a hole of the appropriate diameter for the FUT070 model. Please refer to the datasheet in the Downloads section for precise dimensions.

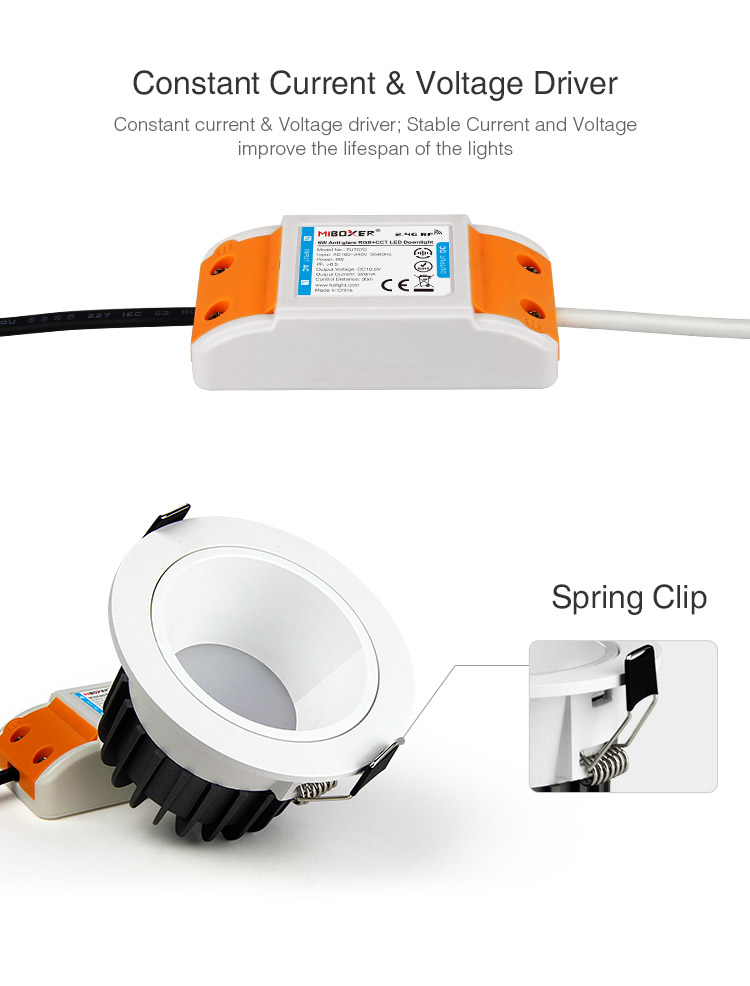

- Connect the AC line and neutral wires from your ceiling to the corresponding input terminals on the downlight's driver.
- Gently push the spring-loaded clips on the sides of the downlight upwards and guide the fixture into the ceiling cutout. The clips will spring back to hold the light securely in place.
- Restore power. To pair the light with a controller, press the desired Zone 'ON' button on your MiBoxer remote control one time within 3 seconds of turning the light on. The light will blink 3 times to indicate successful pairing.
- You can now control the downlight's color, brightness, and CCT using the remote. For smartphone app and voice commands, pair the light with a MiBoxer 2.4GHz Gateway.
- Installation should be performed by a qualified electrician.
- This downlight is designed for indoor use. Do not install in wet or damp locations.
- Ensure sufficient airflow around the fixture in the ceiling for proper heat dissipation.
- This light is dimmed wirelessly via RF signal; it is not compatible with traditional TRIAC wall dimmers.
- The 2.4GHz RF signal is a common frequency; ensure the controller is not placed inside a metal enclosure which could block the signal.
What's in the Box
- ✓1 x FUT070 6W Anti-glare RGB+CCT LED Downlight
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What makes this an 'anti-glare' downlight?
A:The FUT070 features a deep-set LED chip and a conical internal reflector that shields the light source from direct view, preventing harsh glare and creating a softer, more comfortable light output.
Q: Can I control this light with my smartphone or Alexa?
A:Yes, you can control it via a smartphone app (Tuya Smart or MiBoxer Smart) and voice assistants like Amazon Alexa or Google Assistant when you pair it with a MiBoxer 2.4GHz Gateway (model WL-Box1 or similar, sold separately).
Q: Is this recessed downlight dimmable?
A:Absolutely. You can dim the brightness from 1% to 100% using a compatible MiBoxer RF remote or through the smartphone app. It is not compatible with standard mains wall dimmers.
Q: What does RGB+CCT mean?
A:RGB+CCT combines two technologies in one light. 'RGB' allows you to choose from 16 million colors, while 'CCT' (Correlated Color Temperature) lets you adjust the white light from a warm, cozy yellow (2700K) to a cool, crisp blue-white (6500K).
Q: What kind of remote control do I need for this light?
A:You will need any MiBoxer series remote that supports RGB+CCT control, such as the FUT092 handheld remote or the B8 smart panel wall controller.
Q: I'm concerned about led downlight flickering. Is this a problem with the FUT070?
A:No, this downlight is built with high-quality components and a stable driver to ensure smooth, flicker-free illumination, which is essential for visual comfort and reducing eye fatigue.
