Product Information
The MiBoxer FUT098 is a sleek and intuitive remote control designed specifically for managing your RGB LED strip lights. Utilizing advanced 2.4GHz GFSK wireless technology, this handheld remote provides stable, responsive control from up to 30 meters away. Its central feature is a highly sensitive touch color ring, allowing you to select from a vast spectrum of colors with a simple glide of your finger. This remote is the perfect upgrade for anyone seeking a straightforward, reliable, and stylish way to manage home accent lighting, commercial displays, or hospitality environments. It offers a focused solution for pure RGB control, eliminating the complexity of multi-channel remotes when all you need is vibrant, dynamic color.
Key Features of the FUT098 RGB Remote
Intuitive Touch Color Ring
Select the exact color you desire with a smooth, responsive touch-sensitive color wheel for seamless color mixing.
Reliable 2.4GHz RF Control
Experience stable, low-interference wireless performance with a control distance of up to 30 meters (98 feet).
Dedicated RGB Functionality
Designed specifically for 3-channel RGB LED strips, offering simple, focused control without unnecessary complexity.
Sleek & Ergonomic Design
Features a modern, comfortable handheld design that is both stylish and easy to use for all adjustments.
Low Power Consumption
Engineered for efficiency, with a standby power consumption of just 20uA to maximize battery life.
Product Specifications
| Parameter | Details |
|---|---|
| Model No. | FUT098 |
| Input Voltage | 3V (2 x AAA Batteries, not included) |
| Transmission Technology | 2.4GHz RF |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power Consumption | 20uA |
| Control Distance | 30m (approx. 98 ft) |
| Dimensions | 110 x 52.6 x 20 mm |
Ideal Applications
How to Control & Use This Controller

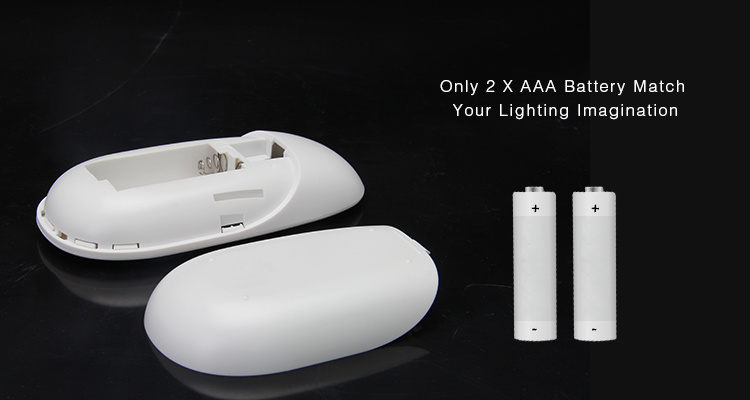

- Install two AAA batteries into the back of the FUT098 remote, ensuring correct polarity.
- To link the remote, first power off the compatible MiBoxer controller for 10 seconds, then power it back on.
- Within 3 seconds of the controller powering on, press the 'I' button on the remote one time.
- The connected LED strip will flash three times, indicating that the remote has been successfully linked.

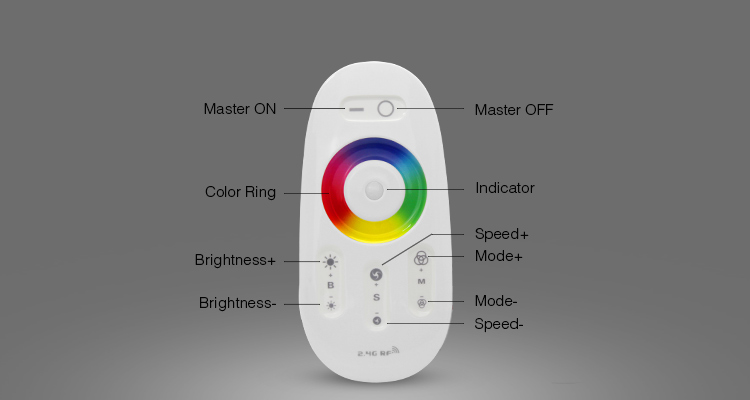

- Use the touch color ring to select a static color. Use the buttons to turn lights on/off, adjust brightness, or cycle through dynamic modes.
- To unlink, repeat the power cycle process, but press the 'I' button five times within 3 seconds. A flashing light will confirm the unlink.
- This is a remote control and requires a compatible MiBoxer/Mi-Light receiver (e.g., FUT037, sold separately) to function.
- This remote is designed for standard RGB LED strip lights and is not compatible with RGBW, RGBCCT, or addressable strips.
- Ensure the remote is within the 30-meter control range of the receiver for proper operation.
- Remove batteries if the remote will not be used for an extended period to prevent leakage.
What's in the Box
- ✓1 x FUT098 2.4GHz Touch RGB Remote Control
- ✓1 x User Manual
Frequently Asked Questions
Q: What do I need to use this FUT098 remote?
A:You need a compatible MiBoxer or Mi-Light RGB receiver/controller that is wired to your RGB LED strip lights and a power supply. This remote does not connect directly to the strip.
Q: How do I pair this remote to my controller?
A:Power cycle your receiver (unplug, wait 10s, plug back in). Within 3 seconds of it turning on, press the 'I' button on the remote once. The lights should flash to confirm pairing.
Q: Will this remote work with any brand of RGB LED strip?
A:Yes, it will control any standard 4-pin RGB LED strip as long as it is connected to a compatible MiBoxer/Mi-Light receiver.
Q: Can I control multiple separate areas with one remote?
A:The FUT098 is a single-zone remote. To control multiple zones independently, you would need a multi-zone remote like the FUT089 or FUT092.
Q: What is the maximum range of this remote control?
A:The effective control distance is up to 30 meters (approximately 98 feet) in an open area.
Q: What kind of batteries does the FUT098 use?
A:It requires two AAA batteries, which are not included with the remote.
