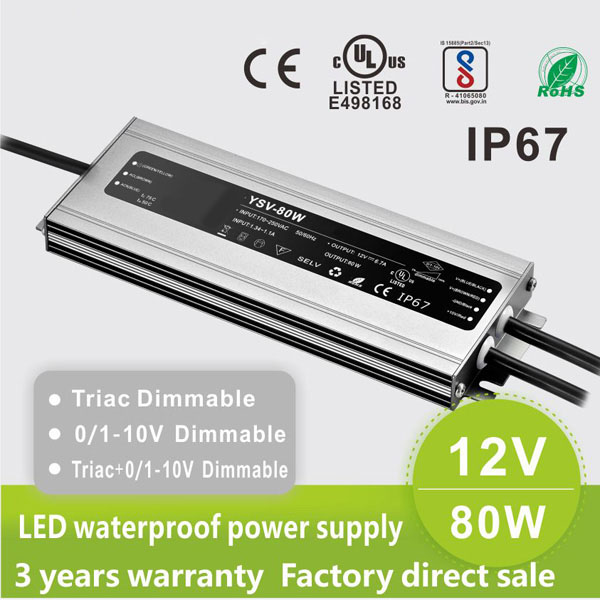

Triac 0/1-10V Dimmable LED Dimming Power IP67 12V 80W
Design for indoor installations
Protections: Short circuit / Overload/Over temperature
Cooling by free air convection
100% full load burn-in test
Optional dimming method: TRIAC or 0/1-10V dimmable
Meet the LED lighting
Products through CE, RoHS Certification
MODEL: 12V 80W
Output DC Voltage: 12V
Rated Current: 12V 6.7A
Current range: 0-6.7A
Rated power: 80W
Voltage Tolerance: ±2%
Linear Regulation: ±1%
Load regulation: ±2%
Input Voltage range: 170-250VAC OR 100-130VAC
Frequency range: 50-60Hz
Power Factor(Typ.): PF>0.6/220VAC
AC Current(Typ._): 1.8A/220VAC
Inrush Current(Typ.): Cold Start 120A/220VAC
Protection Short circuit: Protection type:recovers automatically after fault condition is removed
Overload over: load protected@115-140% above peak rating
Over temperature: protection type:shut down o/p voltage,re-power on to recover
Working temp: -30～+50℃(Refer to output load derating curve)
Working Hunidity: 20～99%RH non-condensing
Storage Temp,humidity: -40～+80℃,10～99%RH
Safety﹠EMC Safety Standards: CE Mark(lVD)
Withstand Voltage: I/P-O/P:1.5KVAC I/P-GND:1.5KVAC
EMC Test Standards: EN55015:2013;EN61547:2009;EN61000-3-2:2014;EN61000-3-3:2013
1. All parameters NOT specially mentioned are measured at 220VAC input rated load and 25℃ of ambient temperature.
2. Ripple﹠noise are measured at 20MHz of bandwidth by using a 12"twisted pair-wire terminated with a 0.1uf﹠10uf parallel capacitor.
3. Tolerance: includes set up a tolerance, line regulation, and load regulation
